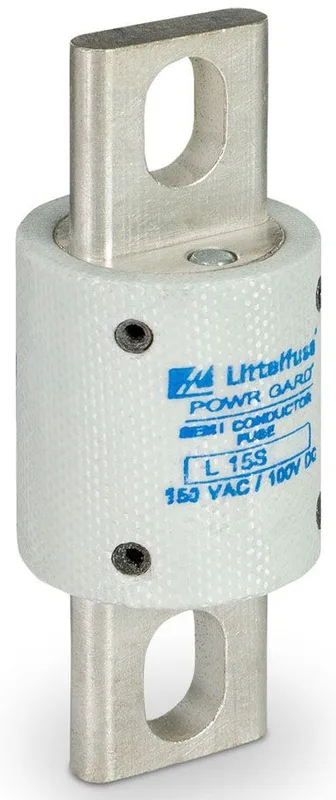

Littelfuse L15S400
MPNL15S400
Traditional Semiconductor Fuse|fuses, Semiconductor, Brand Or Series: L15s, Type: Bolt Mount, Amp Rating: 400amp, Voltage Rating: 150 Vac, 100 Vdc, Interrupting Rating: Vac 100000 Rms Amp Vdc 20000 Amp, Dimensions: 1 Diameter X 2 21/32 Length Inch, Material: Fiberglassbody, Features:
$83.09Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Semiconductor Fuses |
| Standard | CSA Certified |
| Category | Semicond,Rectifier,Hi-Voltage Fuses |
| Sub brand | L15S Series |
| Manufacturer | Littelfuse, Inc. |
| Sub-Category | UL Power Fuse |
| Special features | Very Fast Acting |
| Manufacturer brand | Littelfuse, Inc. |
| Product description | Littelfuse L15S400 Fast-Acting Semiconductor Fuse |
| Full technical description | 2-21/32 Inch; UL, CSA, CE Approval; 150 Vac/100 VDC Voltage Rating; 1 Inch Diameter; 100000 Ampere (AC), 20000 Ampere (DC) Interrupting Rating; 400 Ampere Current Rating; Blade Terminal Type; High Speed, Very Fast Acting Characteristics; Powr-Gard [R] Brand; Application DC Power Supply, Electronic Equipment, Power Rectifier, UPS System and Variable Speed Drive; L15S Model |
| Proposition 65 warning | WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. |
MPN
L15S400
