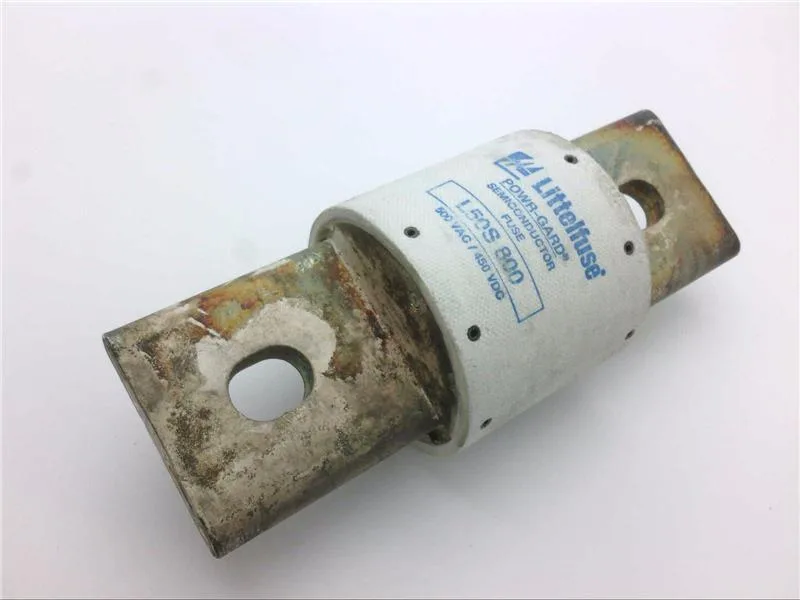

Littelfuse L50S800
MPNL50S800
Traditional High-Speed Fuse|fuses, Semiconductor, Brand Or Series: L50s, Type: Bolt Mount, Amp Rating: 800amp, Voltage Rating: 500 Vac, 450 Vdc, Interrupting Rating: Vac 200000 Rms Amp Vdc 20000 Amp, Dimensions: 2 1/2 Diameter X 6 15/32 Length Inch, Material: Fiberglass Body, Featu
$351.00 – $526.03Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Semiconductor Fuse |
| Standard | UL Recognized |
| Category | Semicond,Rectifier,Hi-Voltage Fuses |
| Sub brand | L50S Series |
| Manufacturer | Littelfuse, Inc. |
| Sub-Category | UL Power Fuse |
| Prop 65 warning | WARNING_CANCER_AND_REPRODUCTIVE_HARM_WWW.P65WARNINGS.CA.GOV |
| Special features | Very-Fast Acting |
| Manufacturer brand | Littelfuse, Inc. |
| Product description | Littelfuse L50S800 500V Semiconductor Fuse |
| Full technical description | 6-15/32 Inch; UL, CSA, CE Approval; 500 Vac/450 VDC Voltage Rating; 2-1/2 Inch Diameter; 200000 Ampere (AC), 20000 Ampere (DC) Interrupting Rating; 800 Ampere Current Rating; Blade Terminal Type; High Speed, Very Fast Acting Characteristics; Powr-Gard [R] Brand; RoHS Compliant; Application DC Power Supply, Electronic Equipment, Power Rectifier, UPS System and Variable Speed Drive; L50S Model |
| Proposition 65 warning | WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. |
MPN
L50S800
