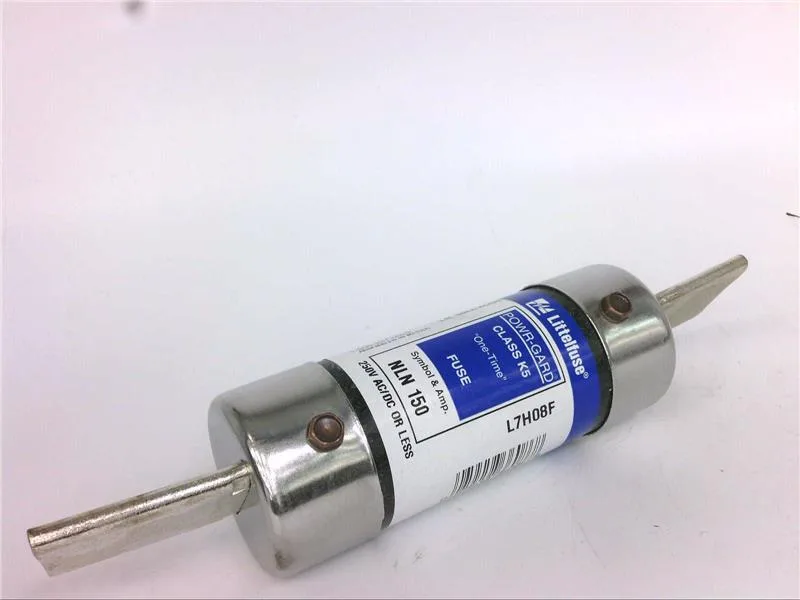

Littelfuse NLN150
MPNNLN150
Ul Class K5 "one-time" Fuse|fuses, General Purpose, Brand Or Series: Class K, One Time, Terminal Type: Blade, Voltage Rating: 250 Vac/250 Vdc, Current Rating: 150 Amp, Interrupting Rating: 50000 Amp Vac Rms Symmetrical, Dimensions: 1 9/16 Diameter X 7 1/8 Length Inch, Features: Low
$99.59Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Type | Fast Acting |
| Class | K5 |
Ratings
| Parameter | Value |
|---|---|
| Current (A) | 150 |
| Voltage (AC) | 250 |
Protection & Breaking
| Parameter | Value |
|---|---|
| DC interrupting rating | 20 kA |
Mechanical
| Parameter | Value |
|---|---|
| Mounting style | Clip |
Other specifications
| Parameter | Value |
|---|---|
| Volts DC | 250 |
MPN
NLN150
