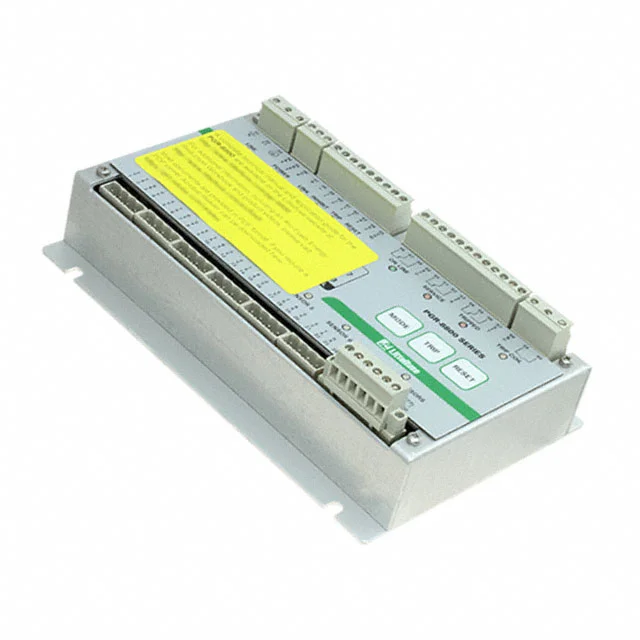

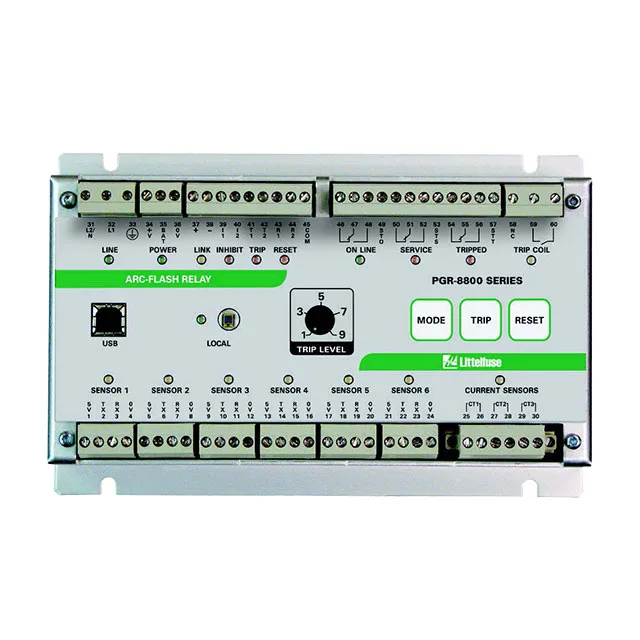

Littelfuse PGR-8800-00
MPNPGR-8800-00
Active
ARC-FLASH RELAY NO COMM. UL&C-TI
$4,008.57 – $10,332.67Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Input type | (2) Inhibit; (2) Remote Trip; (2) Reset |
| Output signal | IGBT Switch |
| Input voltage range | 12 to 48V DC120V AC/DC240V AC/DC |
| Trip coil voltage range | 24 to 300V AC; 24 to 300V DC |
| Interface | USB |
| Relay mounting style | DIN-Rail & Surface |
| Body depth | 2.2 in |
| Body width | 7.9 in |
| Body height | 5.2 in |
| Brand | LITTELFUSE |
| Buttons | Front Panel Switch; Two Remote Contacts |
| Application | Switchgear |
| For use with | Sensors |
| Status indicator | LED Indicator |
| Arc flash trip time | 1 msec |
| Trip coil contact mode | Fail-Safe |
| Includes backup battery | No |
| Compatible with manufacturer model number | PGA-1100; PGA-LS10; PGA-LS20; PGA-LS30 |
MPN
PGR-8800-00
