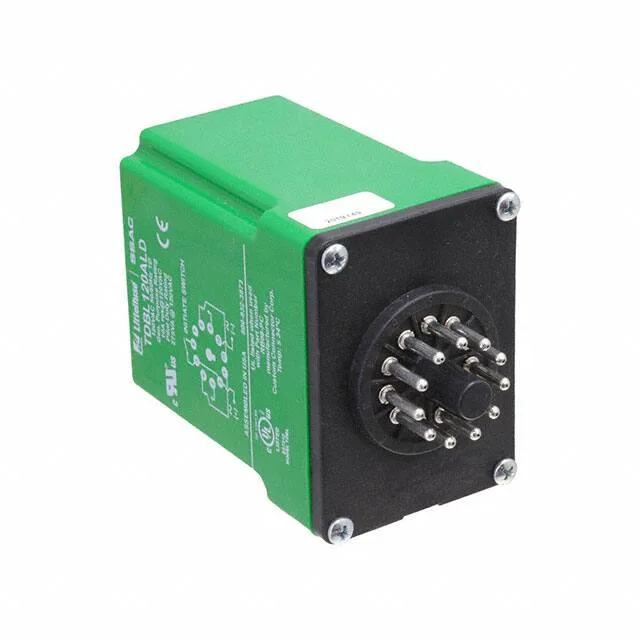

Littelfuse TDBL120ALD — Time Delay Relays

Littelfuse TDBL120ALD

MPNTDBL120ALD
Active

RELAY TIME DEL 102.3SEC 10A 120V

$130.69Ref. price · indicative, final on quote
Littelfuse TDBL120ALD datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

TDBL120ALD — Identification
ParameterValue
Relay typeMechanical Relay
SeriesTDBL
TDBL120ALD — Timing
ParameterValue
FunctionOff-Delay
Delay time range0.1 Sec ~ 102.3 Sec

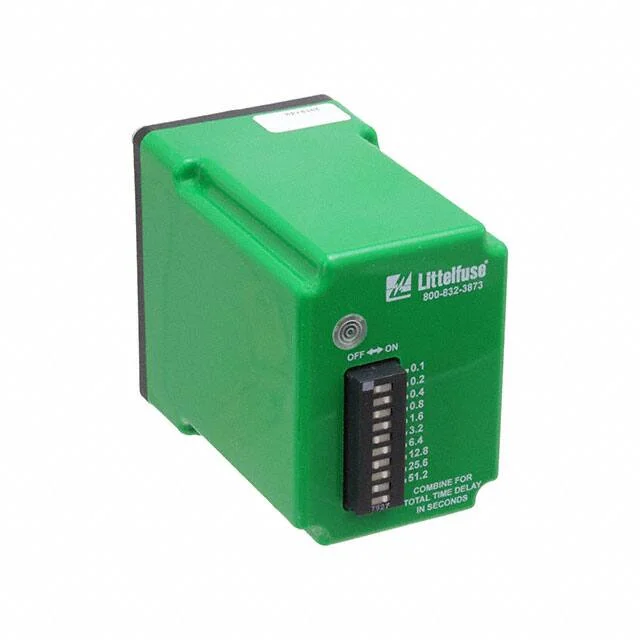

Timing adjustment methodDIP Switches
Timing initiate methodInput Voltage, Trigger Signal
TDBL120ALD — Electrical
ParameterValue
Supply voltage120VAC
TDBL120ALD — Output / Contacts
ParameterValue
Contact rating10A @ 120/240VAC
Contact configurationDPDT (2 Form C)
TDBL120ALD — Mechanical
ParameterValue
Termination stylePlug In, 11 Pin (Octal)
Mounting typeSocketable
MPN
TDBL120ALD
