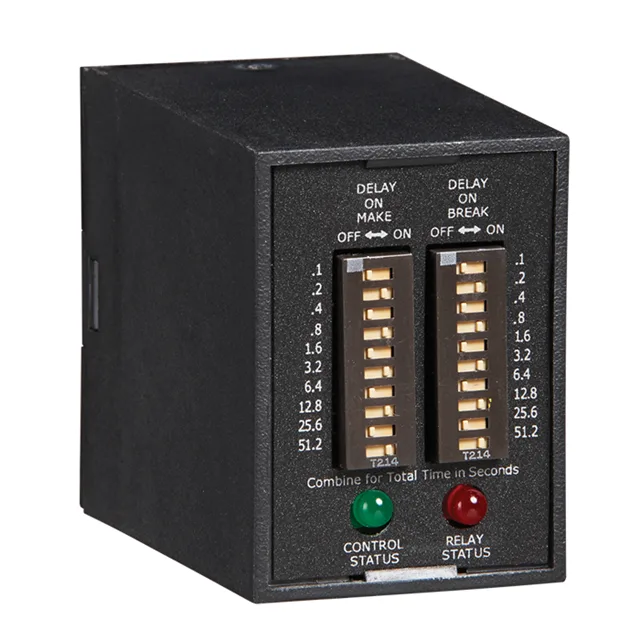

Littelfuse TDMB422D — Time Delay Relays

Littelfuse TDMB422D

MPNTDMB422D
Active

RELAY TIME DEL 1023SEC 10A 120V

$148.55Ref. price · indicative, final on quote
Littelfuse TDMB422D datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

TDMB422D — Identification
ParameterValue
Relay typeMechanical Relay
SeriesTDMB
TDMB422D — Timing
ParameterValue
FunctionOff-Delay, On-Delay
Delay time range1 Sec ~ 1023 Sec
Timing adjustment methodDIP Switches
Timing initiate methodInput Voltage, Trigger Signal
TDMB422D — Electrical
ParameterValue
Supply voltage120VAC
TDMB422D — Output / Contacts
ParameterValue
Contact rating10A @ 120/240VAC
Contact configurationDPDT (2 Form C)
TDMB422D — Mechanical
ParameterValue
Termination stylePlug In, 11 Pin (Octal)
Mounting typeSocketable
MPN
TDMB422D
