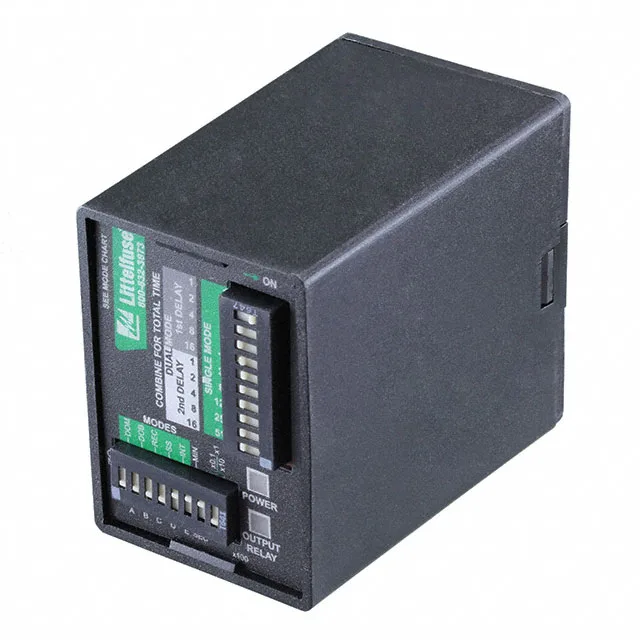

Littelfuse TRDU120A3
MPNTRDU120A3
Active
RELAY TIME DELAY 1705HR 10A 120V
$124.92Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Poles | Plug-in socket |
| Mounting | Plug-in socket |
| Operating temperature | -20 to 65 F |
| Standard | CE/UR/CSA |
| Category | Timing Relays & Accessories |
| Sub brand | SSAC |
| Manufacturer | Littelfuse, Inc. |
| Sub-Category | Programmable Timing Relay |
| Special features | 10Y WARR |
| Manufacturer brand | Littelfuse, Inc. |
| Product description | Littelfuse TRDU120A3 Time Delay |
| Full technical description | DPDT Contact Configuration; 10 Ampere Contact Rating; UL, CSA, CE Approval; Plug-in Mounting; 11-Pin Terminal Type; 120 VAC at 50/60 Hz Coil Voltage; 0.1 Sec to 1705 HR (Single Mode), 0.1 Sec to 3100 min (Dual Mode) Timing Range; 3-Position Dip Switch Timing Adjustment Operator Type; 8 Timing Range(S); Size 3.1 Inch L X 2.39 Inch W X 1.78 Inch H; Output Type Electromechanical Relay; Time Delay Type Microcontroller; Operating Temperature -20 to 65 Deg C |
| Proposition 65 warning | WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. |
MPN
TRDU120A3
