Littelfuse TVW5103S5S — General Purpose Relays

Littelfuse TVW5103S5S

MPNTVW5103S5S
Active

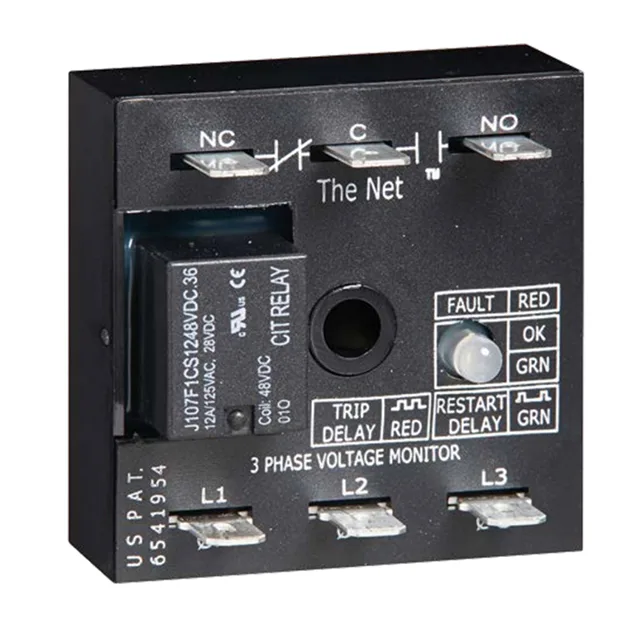

Littelfuse TVW5103S5S Monitoring Relay

$119.58 – $131.09Ref. price · indicative, final on quote
Littelfuse TVW5103S5S datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

TVW5103S5S — Identification
ParameterValue
SeriesTVW
TVW5103S5S — Contacts & Switching
ParameterValue
Contact rating at voltage10A @ 240VAC
TVW5103S5S — Coil & Supply
ParameterValue
Supply voltage range208 ~ 240VAC
TVW5103S5S — Function & Indication
ParameterValue
Trip range208 ~ 240V AC
TypeVoltage Sensing AC, Phase Loss, Phase Sequence
Delay timeFixed, 3 Sec
TVW5103S5S — Mechanical
ParameterValue
Mounting typePanel Mount
TVW5103S5S — Environmental
ParameterValue
Operating temperature range-40°C ~ 55°C
TVW5103S5S — Other specifications
ParameterValue
CircuitSPDT (1 Form C)
Output signalRelay
Trip statusEnergized High/Low
MPN
TVW5103S5S
