Mitsubishi Electric AJ65BT-D75P2-S3 — PLC I/O & Expansion Modules

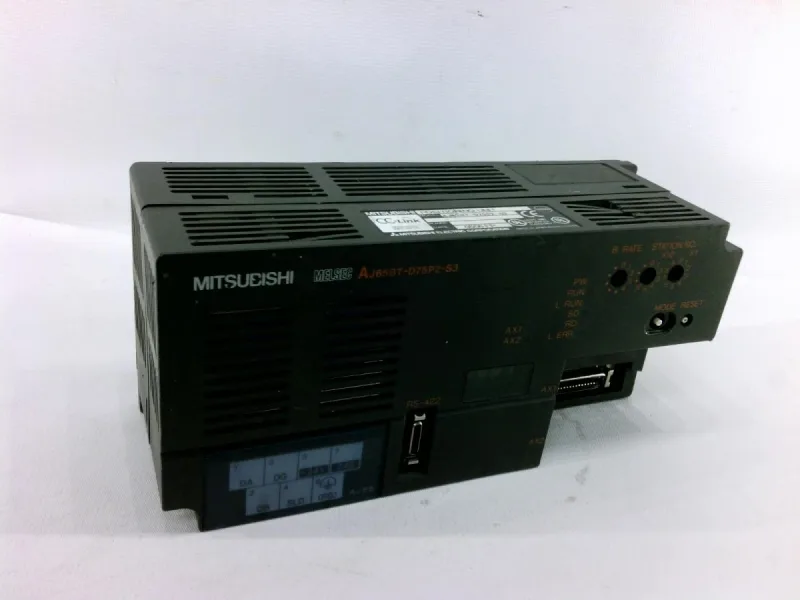

Mitsubishi AJ65BT-D75P2-S3 Positioning Module, 2 Axes, 24 VD

MPNAJ65BT-D75P2-S3

Mitsubishi AJ65BT-D75P2-S3 positioning module, 2 axes, CC-Link intelligent device station, 0.30 A, 24 VDC.

$761.00 – $830.58Ref. price · indicative, final on quote

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AJ65BT-D75P2-S3 key specifications
Parameter	Value
Station type	Intelligent device station (Ver.1 intelligent device station)
Withstand voltage	Power supply . Communication system all together and external input / output all together: AC 500 V for 1 minute
Over voltage category	II or less
Unit power supply voltage	DC 24 V (DC 20.4 to 26.4 V)
Current	0.30 A
Installation location	In the control panel
External wiring connection method	Communication part, Unit power supply part: 7 point 2 piece Terminal block (M3.5 screw) External device connection part: 10136-3000VE (soldering type, accessory), 10136-6000EL (pressure contact type, sold separately)
Maximum connection distance between servos	When connected to differential driver: 10 m when connected to open collector: 2 m
Storage ambient temperature	-20 to 75 ° C
Operating ambient temperature	0 to 55 ° C
Pollution degree	2 or less
Storage ambient humidity	10 to 90% RH, non condensing

All specifications

AJ65BT-D75P2-S3 additional specifications
Parameter	Value
Ambient operating humidity	10 to 90% RH, non condensing
When there is continuous vibration	Frequency: 5 to 8.4 Hz, One amplitude: 1.75 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m / s 2
Depth	63.5 mm
Width	170 mm
Shipping weight	1.5 Kg
External dimensions height	80 mm
Mass	0.5 Kg
Backup	Parameter and positioning data can be saved in flash ROM (battery less)
Start time	20 ms or less (excluding link scan time)
Control unit	mm, inch, degree, pulse
Use elevation	0 to 2000 m
Control method	PTP (Point To Point) control trajectory control (both linear and arc configurable) Speed ??control Speed ??/ position switching control
Use atmosphere	No corrosive gas
Speed ??command	Standard mode . 0.01 to 6000000.00 mm / min . 0.001 to 600000.000 inch / min . 0.001 to 600000.000 deg / min . 1 to 1000000 pulse / s stepping motor mode . 0.01 to 375000.00 mm / min . 0.001 to 37500.000 inch / min . 0.001 ~ 37500.000 deg / min . 1 to 62500 pulse / s
Increment method	Standard mode • -214748364.8 to 214748364.7 μm • -21474.83648 to 21474.83647 inch • -21474.83648 to 21474.83647 degree • -2147483648 to 2147483647 pulse stepping motor mode • -13421772.8 to 13421772.7 μm • -1342.17728 to 1342.17727 inch • -1342.17728 to 1342.17727 ° • -134217728 ~ 134217727 pulse
Positioning data	600 data / axis
Impact resistance	Meets JIS B 3502, IEC 61131-2 (147 m / s 2 , 3 times in each of X, Y and Z directions)
Trajectory control	Increment method / absolute method
Estimated lead time	Usually ships in 1 - 10 working days.
Maximum output pulse	When connected to differential driver: 400 k pulse / s When connected to open collector: 200 k pulse / s
Insulation resistance	Power supply . Communication system all together and external input / output at one time: 10 MΩ or more with DC 500 V insulation resistance meter
Interpolation function	2 axis linear interpolation 2 axis circular interpolation
Number of control axes	2 axes
Number of occupied stations	4 stations
Sudden stop deceleration time	Switching from 1 to 65535 ms / 1 to 8388608 ms is possible ( falling within the same range as acceleration / deceleration time)
Positioning range absolute method	Standard mode • -214748364.8 to 214748364.7 μm • -21474.83648 to 21474.83647 inch • 0 to 359.99999 degree • -2147483648 to 2147483647 pulse stepping motor mode • -13421772.8 to 13421772.7 μm • -1342.17728 to 1342.17727 inch • 0 to 359.99999 degree • -134217728 to 134217727 pulse
Acceleration and deceleration time	Switching from 1 to 65535 ms / 1 to 8388608 ms is possible Four patterns can be set for both acceleration time and deceleration time
Speed ?? (position switching control)	Increment method / absolute method
Acceleration (deceleration processing)	Automatic trapezoidal acceleration / deceleration, S-shaped acceleration / deceleration
Positioning positioning method PTP control	Increment method / absolute method
Speed ?? (position switching control (ABS mode))	Standard mode . 0 to 359.99999 degrees stepping motor mode . 0 to 359.99999 degree
Speed ?? (position switching control (INC mode))	Standard mode • 0 to 214748364.7 μm • 0 to 21474.83647 inch • 0 to 21474.83647 degree • 0 to 2147483647 pulse stepping motor mode • 0 to 13421772.7 μm • 0 to 1342.17727 inch • 0 to 1342.17727 degree • 0 to 134217727 pulse

Product details

Mitsubishi AJ65BT-D75P2-S3 is a 2-axis positioning module for CC-Link. It runs on 24 VDC drawing 0.30 A. Parameters and positioning data store in flash ROM — no battery to change. Control methods include PTP, linear and circular interpolation. Typically ships in 1–10 days.

Positioning Capabilities

Supports increment method and absolute method for positioning range. Speed commands in standard mode go up to 6,000,000.00 mm/min or 1,000,000 pulse/s. Stepping motor mode maxes at 62,500 pulse/s. Acceleration and deceleration times are configurable from 1 ms to 8,388,608 ms with four pattern sets each. Sudden stop deceleration time falls in the same range.
