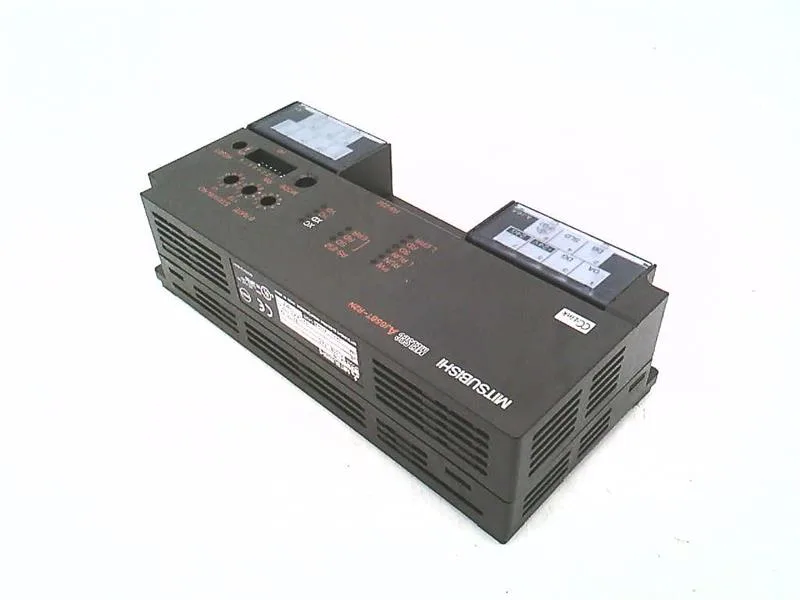

Mitsubishi AJ65BT-R2N PLC I/O Module
MPNAJ65BT-R2N
RS-232 Interface Unit AJ65BT-R2N
$551.00 – $1,364.44Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Station type | Intelligent device station (Ver.1 intelligent device station) |
| Input common type | 2 points / common |
| Withstand voltage | Between DC external terminal and ground: AC 500 V for 1 minute |
| Rated load voltage | DC 12 to 24 V (+ 20 / -15%) |
| Rated input voltage | DC 24 V (ripple ratio within 5%) (Allowable voltage range DC 19.2 to 28.8 V) |
| Over voltage category | II or less |
| ON voltage (ON current) | 14 V or more / 3.5 mA or more |
| Used load voltage range | DC 10.2 to 28.8 V (ripple ratio within 5%) |
| OFF voltage (OFF current) | 6 V or less / 1.7 mA or less |
| Unit power supply voltage | DC 24 V (DC 20.4 to 26.4 V, ripple ratio within 5%) |
| Maximum voltage drop during ON | DC 0.1 V (TYP.) 0.1 A, DC 0.2 V (MAX.) 0.1 A |
| Output section external power supply voltage | DC 10.2 to 28.8 V (ripple ratio within 5%) |
All specifications+54 ▾
| Parameter | Value |
|---|---|
| Current | 0.11 A (TYP. At 24 VDC) |
| Rated input current | About 7 mA |
| Maximum load current | 0.1 A / 1 point, 0.2 A / 1 common |
| Leakage current at OFF | 0.1 mA or less |
| Maximum inrush current | 0.7 A less than 10 ms |
| Allowable momentary power failure time | 1 ms |
| Interface | RS-232 compliant (D-Sub 9P) |
| Communication cable | Ver.1.10 compatible CC-Link dedicated cable CC-Link dedicated cable (Ver.1.00 supported) CC-Link exclusive high-performance cable (Ver.1.00 supported) |
| Communication method | Full duplex communication method |
| Communication control (flow control) | DTR / DSR (ER / DR) control DC1 / DC3 control |
| Installation location | In the control panel |
| External wiring connection method | Communication part, Unit power supply part: 7 point 2-piece terminal block (M3.5 screw) RS-232 part: 9 pin D sub (female) screw type General purpose input / output part: 7 points 2 piece terminal block (M3.5 screw ) |
| Input response time OFF → ON | 10 ms or less |
| Output response time OFF → ON | 1ms or less |
| Storage ambient temperature | -20 to 75 ° C |
| Operating ambient temperature | 0 to 55 ° C |
| Pollution degree | 2 or less |
| Surge suppressor | Zener diode |
| Storage ambient humidity | 10 to 90% RH, non condensing |
| Ambient operating humidity | 10 to 90% RH, non condensing |
| When there is continuous vibration | Frequency: 5 to 8.4 Hz, One amplitude: 1.75 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m / s 2 |
| Depth | 47 mm |
| Width | 170 mm |
| Shipping weight | 1.4 Kg |
| External dimensions height | 80 mm |
| Mass | 0.40 Kg |
| Data bit | 7/8 |
| Stop bit | 1/2 |
| ON → OFF | 1 ms or less (resistance load) |
| Parity bit | 1 (vertical parity) / none |
| Input format | DC input (plus common / minus common common type) |
| Manufacturer | Mitsubishi Electric |
| Output format | Transistor output (sink type) |
| Use elevation | 0 to 2000 m |
| Use atmosphere | No corrosive gas |
| Input resistance | About 3.3 kΩ |
| Impact resistance | Meets JIS B 3502, IEC 61131-2 (147 m / s 2 , 3 times in each of X, Y and Z directions) |
| OS reception area | 5120 bytes |
| Transmission speed | 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| Data form start bit | 1 |
| Output common method | 2 points / common |
| Insulation resistance | DC external terminal collective to ground: 500 VDC DC insulation resistance meter 10 MΩ or more |
| Transmission distance | Maximum 15 m |
| Input isolation method | Photocoupler isolation |
| Number of input points | 2 points |
| Synchronization method | Start-stop synchronization method |
| Number of output points | 2 points |
| Output isolation method | Photocoupler isolation |
| Number of occupied stations | 1 station |
| Error detection parity check | Yes (odd / even) / none |
| Overload protection function | Operate in units of 1 point |
| Maximum number of simultaneous input points | 100% |
| Protection function overheat protection function | Operate in units of 1 point |
