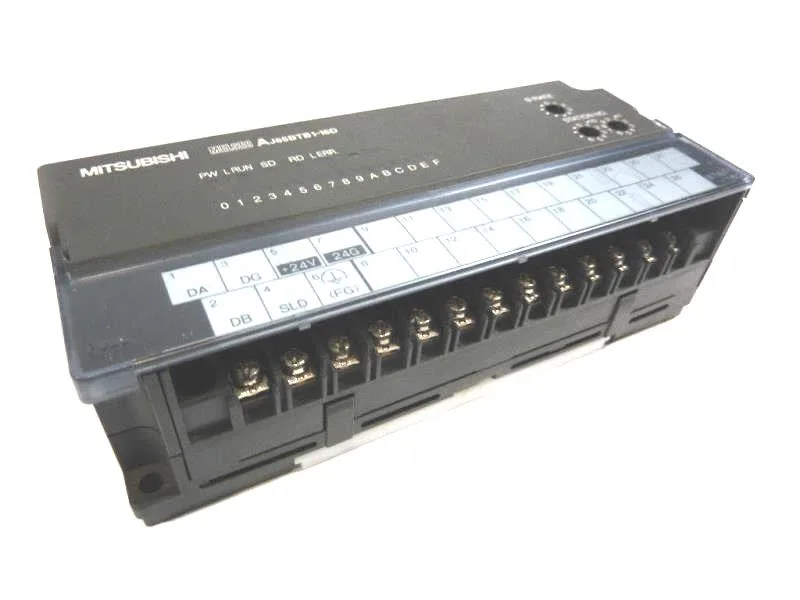

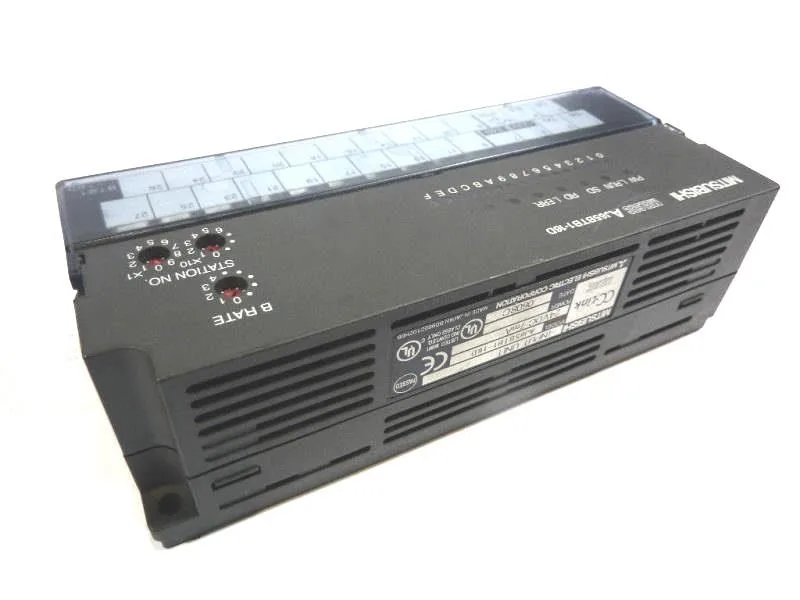

Mitsubishi Electric AJ65BTB1-16D
MPNAJ65BTB1-16D
CC-Link remote I / O unit (DC input, terminal block) AJ65BTB1-16D
$189.98 – $199.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Station type | Remote I / O station |
| Input common type | 16 points 1 common (terminal trapezoid 1 wire type) |
| Withstand voltage | Between DC external terminal and ground: AC 500 V for 1 minute |
| Rated input voltage | DC 24 V (ripple ratio within 5%) (Allowable voltage range DC 19.2 to 28.8 V) |
| Over voltage category | II or less |
| ON voltage (ON current) | 14 V or more / 3.5 mA or more |
| OFF voltage (OFF current) | 6 V or less / 1.7 mA or less |
| Unit power supply voltage | DC 24 V (ripple ratio within 5%) (allowable voltage range DC 15.6 to 28.8 V) |
| Current | 60 mA or less (TYP. At 24 VDC) |
| Rated input current | About 7 mA |
| Installation location | In the control panel |
| External wiring connection method | Communication part, Unit power supply part: 7 points 2 piece terminal block (M3.5 screw) I / O power supply part, input / output part: 27 points 2 piece terminal block (M3.5 screw) |
All specifications+25 ▾
| Parameter | Value |
|---|---|
| Input response time OFF → ON | 10 ms or less |
| Storage ambient temperature | -20 to 75 ° C |
| Operating ambient temperature | 0 to 55 ° C |
| Pollution degree | 2 or less |
| Storage ambient humidity | 10 to 90% RH, non condensing |
| Ambient operating humidity | 10 to 90% RH, non condensing |
| When there is continuous vibration | Frequency: 5 to 8.4 Hz, One amplitude: 1.75 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m / s 2 |
| Depth | 46 mm |
| Width | 151.9 mm |
| Shipping weight | 1.3 Kg |
| External dimensions height | 65 mm |
| Mass | 0.32 Kg |
| ON → OFF | 10 ms or less |
| Input format | DC input (plus common / minus common common type) |
| Manufacturer | Mitsubishi Electric |
| Use elevation | 0 to 2000 m |
| Use atmosphere | No corrosive gas |
| Input resistance | About 3.3 kΩ |
| Impact resistance | Meets JIS B 3502, IEC 61131-2 (147 m / s 2 , 3 times in each of X, Y and Z directions) |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| Insulation resistance | DC external terminal collective to ground: 500 VDC DC insulation resistance meter 10 MΩ or more |
| Input isolation method | Photocoupler isolation |
| Number of input points | 16 points |
| Number of occupied stations | 1 station |
| Maximum number of simultaneous input points | 100% |
