AJ65BTB1-16DT - Mitsubishi Electric
MPNAJ65BTB1-16DT

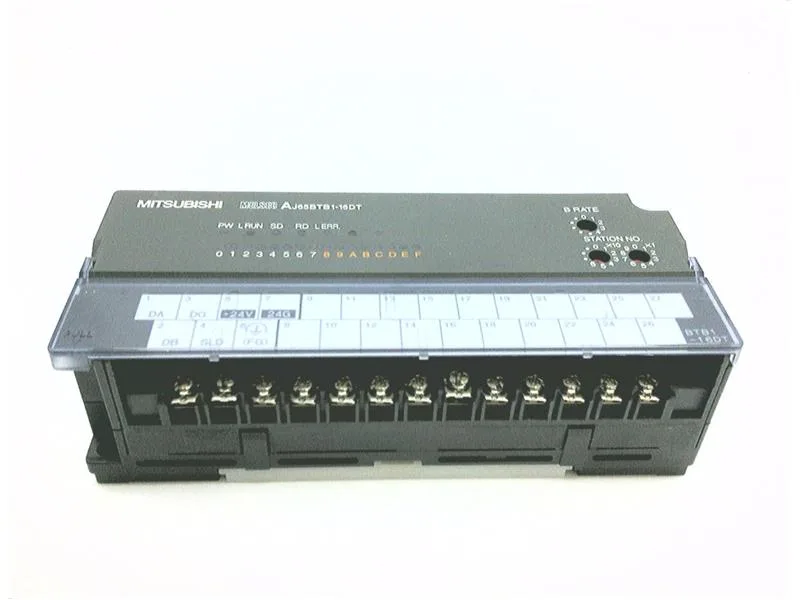

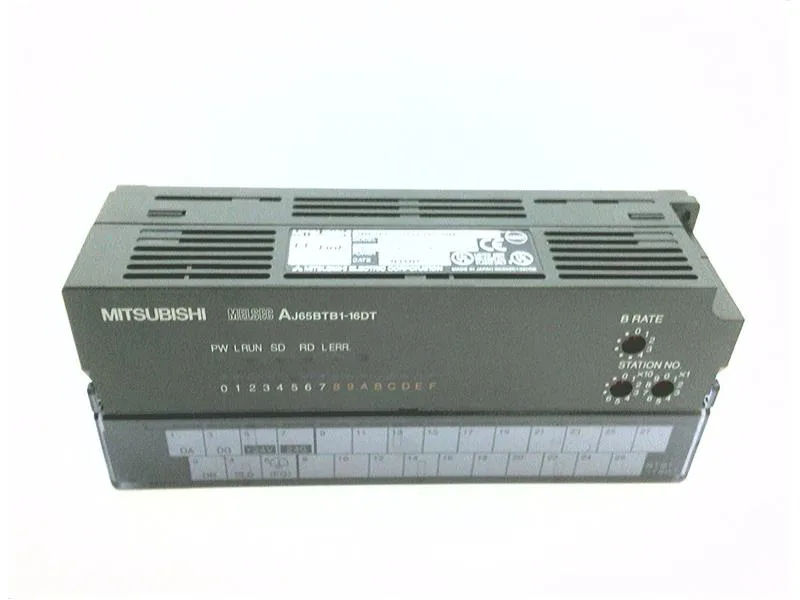

CC-Link remote I / O unit (DC input / transistor output, terminal block) AJ65BTB1-16DT
$139.70 – $199.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Station type | Remote I / O station |
| Input common type | 8 points / common (terminal trapezoid 1 wire type) |
| Withstand voltage | Between DC external terminal and ground: AC 500 V for 1 minute |
| Rated load voltage | DC12 / 24V (ripple ratio within 5%) |
| Rated input voltage | DC 24 V (ripple ratio within 5%) (Allowable voltage range DC 19.2 to 28.8 V) |
| Over voltage category | II or less |
| ON voltage (ON current) | 14 V or more / 3.5 mA or more |
| Used load voltage range | DC 10.2 to 28.8 V |
| OFF voltage (OFF current) | 6 V or less / 1.7 mA or less |
| Unit power supply voltage | DC 24 V (ripple ratio within 5%) (allowable voltage range DC 15.6 to 28.8 V) |
| Maximum voltage drop during ON | DC 0.9 V or less (TYP.) 0.5 A, DC 1.5 V or less (MAX.) 0.5 A |
| Output section external power supply voltage | DC 12/24 V (ripple ratio within 5%) (allowable voltage range DC 10.2 to 28.8 V) |
All specifications
| Parameter | Value |
|---|---|
| Current | 70 mA or less (TYP. At 24 VDC) |
| Rated input current | About 7 mA |
| Maximum load current | 0.5 A / 1 point, 4 A / 1 common |
| Leakage current at OFF | 0.1 mA or less |
| Maximum inrush current | 4 A 10 ms or less |
| Installation location | In the control panel |
| External wiring connection method | Communication part, Unit power supply part: 7 points 2 piece terminal block (M3.5 screw) I / O power supply part, input / output part: 27 points 2 piece terminal block (M3.5 screw) |
| Input response time OFF → ON | 10 ms or less |
| Output response time OFF → ON | 2 ms or less |
| Storage ambient temperature | -20 to 75 ° C |
| Operating ambient temperature | 0 to 55 ° C |
| Pollution degree | 2 or less |
| Surge suppressor | Zener diode |
| Storage ambient humidity | 10 to 90% RH, non condensing |
| Ambient operating humidity | 10 to 90% RH, non condensing |
| When there is continuous vibration | Frequency: 5 to 8.4 Hz, One amplitude: 1.75 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m / s 2 |
| Depth | 46 mm |
| Width | 151.9 mm |
| Shipping weight | 1.3 Kg |
| External dimensions height | 65 mm |
| Mass | 0.33 Kg |
| ON → OFF | 2 ms or less (resistance load) |
| Input format | DC input (plus common type) |
| Manufacturer | Mitsubishi Electric |
| Output format | Transistor output (sink type) |
| Use elevation | 0 to 2000 m |
| Use atmosphere | No corrosive gas |
| Input resistance | About 3.3 kΩ |
| Impact resistance | Meets JIS B 3502, IEC 61131-2 (147 m / s 2 , 3 times in each of X, Y and Z directions) |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| Output common method | 8 points / common (terminal trapezoid 1 wire type) |
| Insulation resistance | DC external terminal collective to ground: 500 VDC DC insulation resistance meter 10 MΩ or more |
| Input isolation method | Photocoupler isolation |
| Number of input points | 8 points |
| Number of output points | 8 points |
| Output isolation method | Photocoupler isolation |
| Number of occupied stations | 1 station |
| Maximum number of simultaneous input points | 100% |
