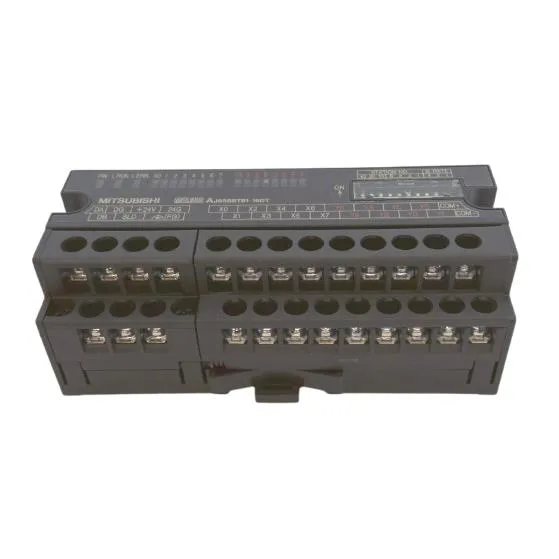

Mitsubishi AJ65SBTB1-16DT is a remote I/O station that packs 8 DC inputs (plus common type) and 8 transistor sink outputs into a compact 118 mm wide, 40 mm deep housing. It draws 50 mA or less from the 24 VDC bus with all points ON—efficient for crowded panels.
Station type is a remote I/O node with 16 points per common terminal (trapezoid 1-wire terminals). Input resistance sits around 3.3 kΩ; rated input current is 7 mA at 24 VDC. Outputs handle 0.5 A per point with a 2.4 A common limit—keep that derating in mind when grouping loads. Install inside the control panel only. No corrosive gas atmosphere—standard industrial cabinet conditions.
This module is in its mature lifecycle phase, meaning stable, ongoing production with consistent availability. Typical lead time runs 1–10 working days. For allocation on larger BOMs, an RFQ locks in supply against your schedule.
