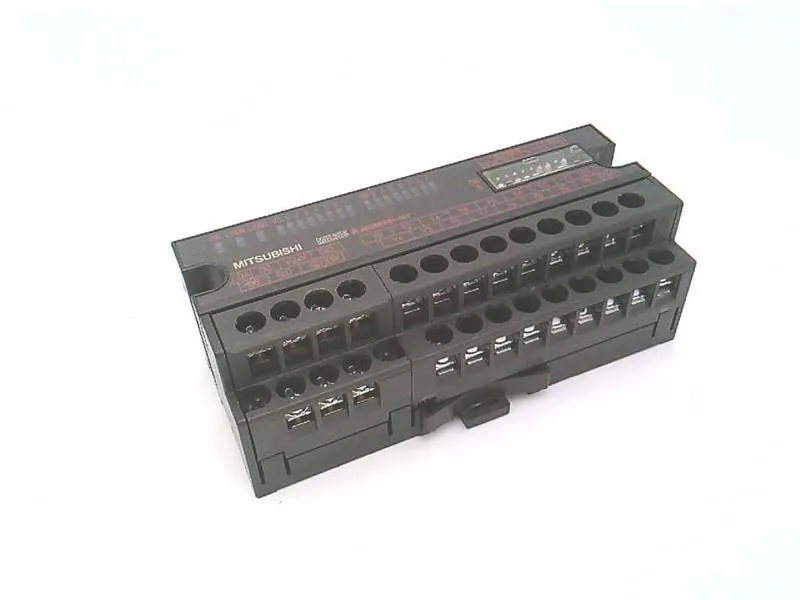

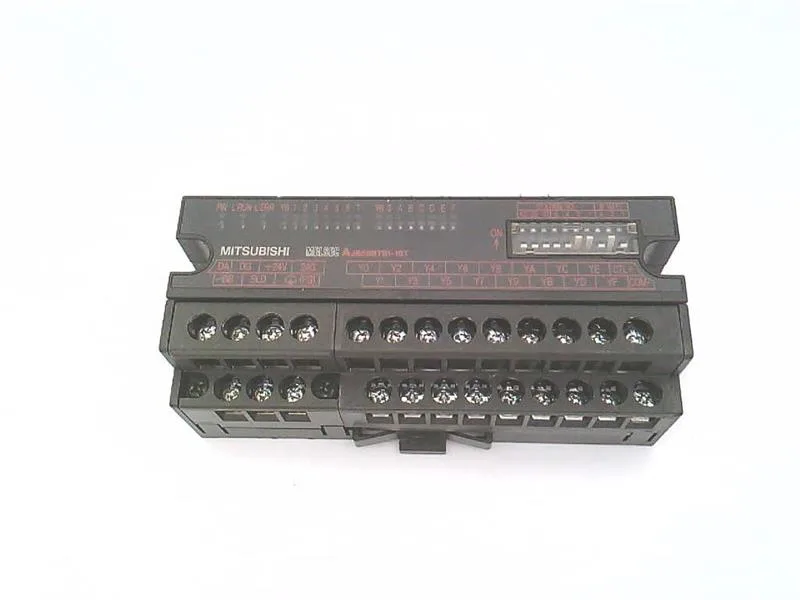

Mitsubishi Electric AJ65SBTB1-16T — Digital Output Modules

Mitsubishi AJ65SBTB1-16T Remote I/O Station, 16 Sink Outputs

MPNAJ65SBTB1-16T

Mitsubishi AJ65SBTB1-16T Remote I/O Station, 16 Sink Transistor Outputs, 0.5 A/point, DC 12/24 V.

$163.00 – $372.07Ref. price · indicative, final on quote
Mitsubishi Electric AJ65SBTB1-16T datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

AJ65SBTB1-16T key specifications
ParameterValue
Station typeRemote I / O station
Withstand voltageBetween DC external terminal and ground: AC 500 V for 1 minute
Rated load voltageDC12 / 24V
Over voltage categoryII or less
Used load voltage rangeDC 10.2 to 26.4 V (ripple ratio within 5%)
Unit power supply voltageDC 20.4 to 26.4 V (ripple ratio within 5%)
Maximum voltage drop during ONDC 0.3 V or less (TYP.) 0.5 A, DC 0.6 V or less (MAX.) 0.5 A
Output section external power supply voltageDC 10.2 to 26.4 V (ripple ratio within 5%)
Current50 mA or less (24 VDC, all points ON)
Maximum load current0.5 A / 1 point, 3.6 A / 1 common
Leakage current at OFF0.25 mA or less
Maximum inrush current1.0 A less than 10 ms

All specifications

AJ65SBTB1-16T additional specifications
ParameterValue
Installation locationIn the control panel
External wiring connection methodCommunication unit, Unit power supply unit: 7 points 2-piece terminal block (M3 screw) I / O power supply unit, input / output unit: 18 points Direct mounting terminal block (M3 screw)
Output response time OFF → ON0.5ms or less
Storage ambient temperature-20 to 75 ° C
Operating ambient temperature0 to 55 ° C
Pollution degree2 or less
Surge suppressorZener diode
Storage ambient humidity10 to 90% RH, non condensing
Ambient operating humidity10 to 90% RH, non condensing
When there is continuous vibrationFrequency: 5 to 8.4 Hz, One amplitude: 1.75 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m / s 2
Depth40 mm
Width118 mm
Shipping weight1.2 Kg
External dimensions height50 mm
Mass0.18 Kg
ON → OFF1.5 ms or less (resistance load)
Output formatTransistor output (sink type)
Use elevation0 to 2000 m
Use atmosphereNo corrosive gas
Protection gradeIP2X
Impact resistanceMeets JIS B 3502, IEC 61131-2 (147 m / s 2 , 3 times in each of X, Y and Z directions)
Estimated lead timeUsually ships in 1 - 10 working days.
Protection functionOverload protection function, overvoltage protection function, overheat protection function
Output common method16 points 1 common (terminal trapezoid 1 wire type)
Insulation resistanceDC external terminal collective to ground: 500 VDC DC insulation resistance meter 10 MΩ or more
Number of output points16 points
Output isolation methodPhotocoupler isolation
Number of occupied stations1 station

Product details

The Mitsubishi AJ65SBTB1-16T is a remote I/O station — it sits on a CC-Link or equivalent fieldbus, handling 16 transistor sink outputs. Each point switches up to 0.5 A (3.6 A per common), rated for DC 12/24 V loads. It occupies one station on the bus, with photocoupler isolation and a Zener diode surge suppressor across each output. Protection includes overload, overvoltage, and overheat — so a shorted load or stalled solenoid won't take out the entire common. Off-state leakage is under 0.25 mA; ON voltage drop stays below 0.6 V at full current. Installed inside a control panel (IP2X, Pollution degree 2), this module handles ambient temperatures from 0 to 55 °C and can be mounted at up to 2000 m elevation without derating.

Submit an RFQ to lock in allocation.

Frequently asked questions

What is the mass of the AJ65SBTB1-16T?

0.18 kg.

What is the current consumption of the AJ65SBTB1-16T?

50 mA or less from 24 VDC with all output points ON.
