Mitsubishi Electric AJ65SBTB1-32DT — Digital Output Modules

Mitsubishi AJ65SBTB1-32DT CC-Link Remote I/O, 16 In/16 Out

MPNAJ65SBTB1-32DT

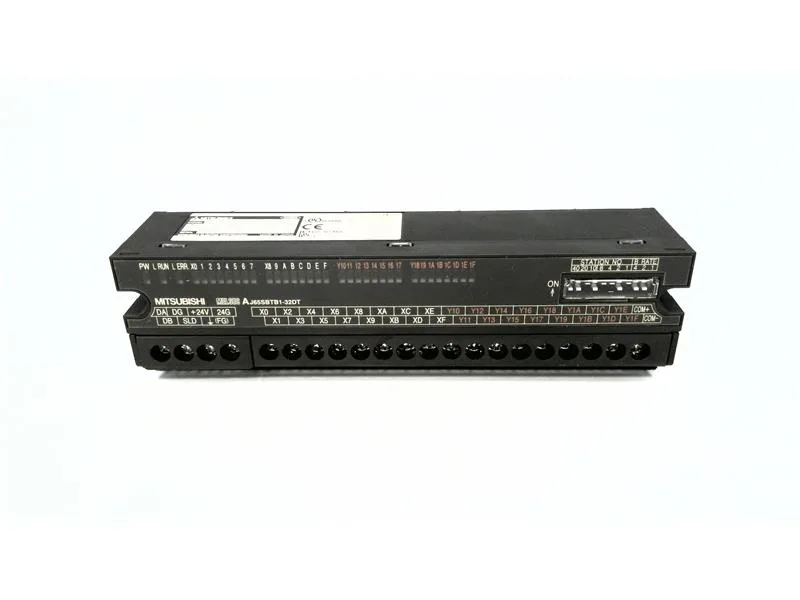

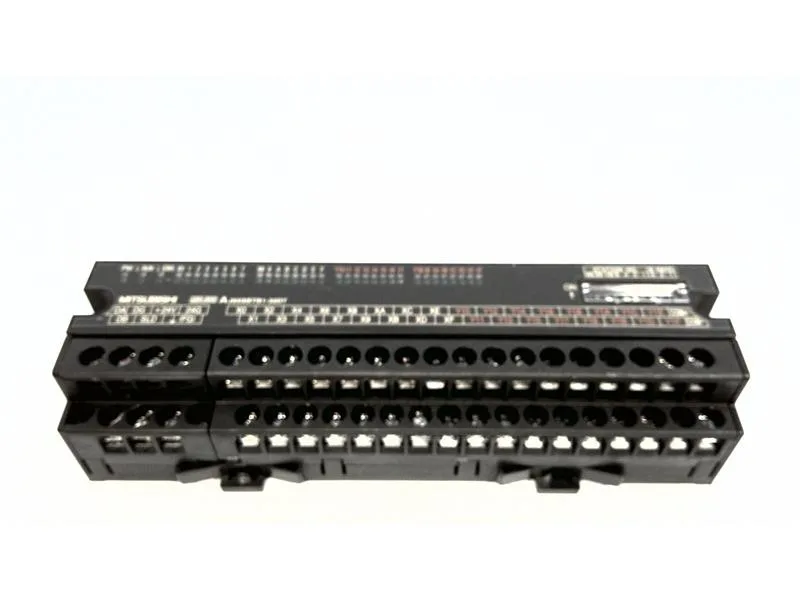

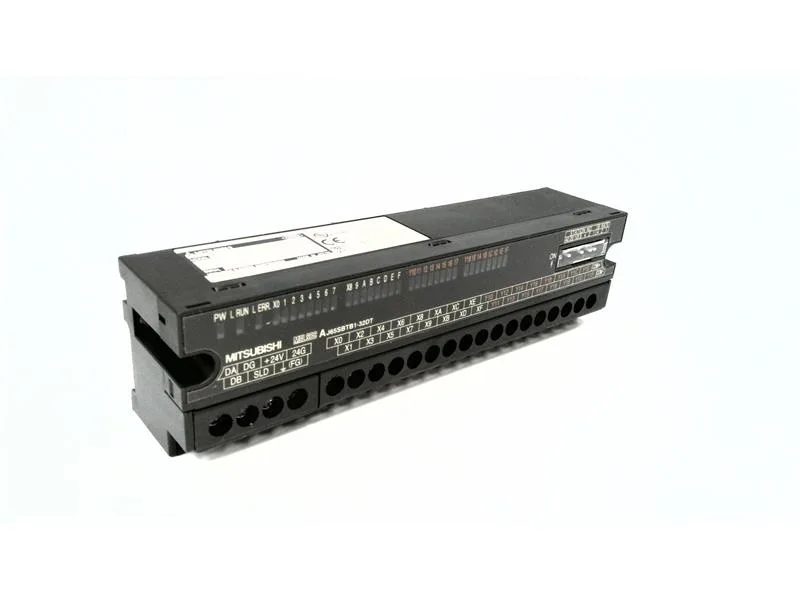

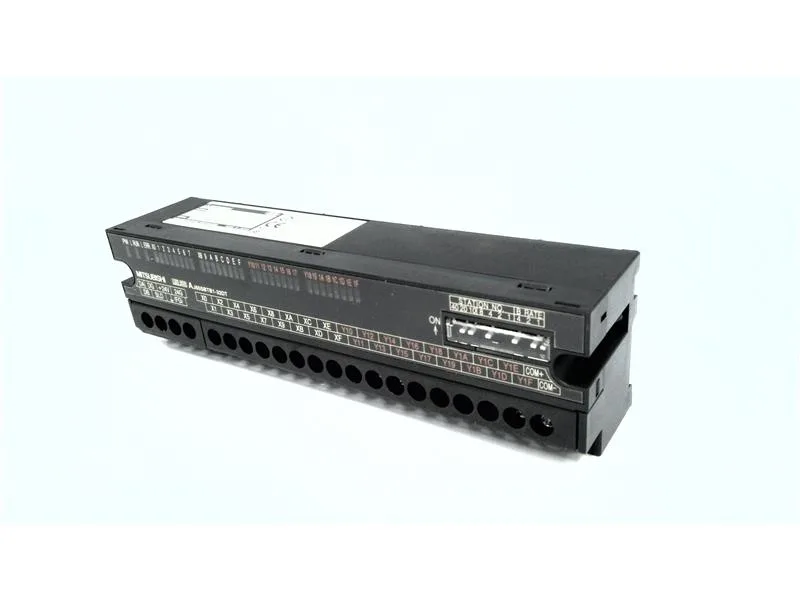

Mitsubishi AJ65SBTB1-32DT CC-Link Remote I/O Station, 16-point DC Input (plus common), 16-point Transistor Output (sink type), 24 VDC, 0.5 A per point.

$257.00 – $359.70Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AJ65SBTB1-32DT key specifications
ParameterValue
Station typeRemote I / O station
Withstand voltageBetween DC external terminal and ground: AC 500 V for 1 minute
Rated load voltageDC 24V
Rated input voltageDC 24 V (ripple ratio within 5%) (Allowable voltage range DC 19.2 to 26.4 V)
Over voltage categoryII or less
ON voltage (ON current)14 V or more / 3.5 mA or more
Used load voltage rangeDC 19.2 to 26.4 V (ripple ratio within 5%)
OFF voltage (OFF current)6 V or less / 1.7 mA or less
Unit power supply voltageDC 20.4 to 26.4 V (ripple ratio within 5%)
Maximum voltage drop during ONDC 0.3 V or less (TYP.) 0.5 A, DC 0.6 V or less (MAX.) 0.5 A
Output section external power supply voltageDC 19.2 to 26.4 V (ripple ratio within 5%)
Current60 mA or less (24 VDC, all points ON)

All specifications

AJ65SBTB1-32DT additional specifications
ParameterValue
Rated input currentAbout 7 mA
Maximum load current0.5 A / 1 point, 3.6 A / 1 common
Leakage current at OFF0.25 mA or less
Maximum inrush current1.0 A less than 10 ms
Installation locationIn the control panel
External wiring connection methodCommunication part, unit power supply part: 7 points 2 piece terminal block (M3 screw) I / O power supply part, input / output part: 34 points Direct mounting terminal block (M3 screw)
Input response time OFF → ON1.5 ms or less (24 VDC)
Output response time OFF → ON0.5ms or less
Storage ambient temperature-20 to 75 ° C
Operating ambient temperature0 to 55 ° C
Pollution degree2 or less
Surge suppressorZener diode
Storage ambient humidity10 to 90% RH, non condensing
Ambient operating humidity10 to 90% RH, non condensing
When there is continuous vibrationFrequency: 5 to 8.4 Hz, One amplitude: 1.75 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m / s 2
Depth40 mm
Width179 mm
Shipping weight1.3 Kg
External dimensions height50 mm
Mass0.25 Kg
ON → OFF1.5 ms or less (resistance load)
Input formatDC input (plus common type)
Common method32 points 1 common (terminal trapezoid 1 wire type)
Output formatTransistor output (sink type)
Use elevation0 to 2000 m
Use atmosphereNo corrosive gas
Input resistanceAbout 3.3 kΩ
Protection gradeIP2X
Impact resistanceMeets JIS B 3502, IEC 61131-2 (147 m / s 2 , 3 times in each of X, Y and Z directions)
Estimated lead timeUsually ships in 1 - 10 working days.
Protection functionOverload protection function, overvoltage protection function, overheat protection function
Insulation resistanceDC external terminal collective to ground: 500 VDC DC insulation resistance meter 10 MΩ or more
Input isolation methodPhotocoupler isolation
Number of input points16 points
Number of output points16 points
Output isolation methodPhotocoupler isolation
Number of occupied stations1 station
Maximum number of simultaneous input points100%

Product details

The Mitsubishi AJ65SBTB1-32DT is a CC-Link remote I/O station delivering 16 DC inputs (sink type, 24 VDC, 7 mA typical) and 16 transistor outputs (sink type, 24 VDC, 0.5 A per point, 3.6 A per common bus). Input isolation is photocoupler; output side adds overload, overvoltage, and overheat protection — a step up from basic fuse-only modules. Power draw: 60 mA at 24 VDC with all points ON, so the station adds roughly 1.5 W to the 24V rail.

The NZ2EX2B1-16D is a 16-point DC input module for the MELSEC iQ‑F series — same function class but no outputs, no CC‑Link interface, and a different physical footprint (slim 12mm slice vs 179mm wide standalone block). It is not a drop‑in second‑source. For a pure input expansion on an iQ‑F base it is the modern equivalent, but the AJ65SBTB1-32DT remains the correct fit for CC‑Link networks needing combined I/O in a single addressed station.

Panel‑mount only: 179 mm wide × 40 mm deep, rated IP2X. Pollution degree 2, overvoltage category II. Input supply tolerates 19.2–26.4 VDC (ripple ≤5%), so it rides through weak 24 V bus conditions. Output common is 32 points per common on a trapezoid terminal block — plan wire routing to keep the 3.6 A common limit. Surge suppression via zener diode on outputs. No corrosive gas environment specified; storage at 10–90% RH non‑condensing.

Frequently asked questions

Can the NZ2EX2B1-16D replace the AJ65SBTB1-32DT?

No. The NZ2EX2B1-16D is a 16‑point input module for the MELSEC iQ‑F series — it has no outputs and no CC‑Link remote station interface. It is not electrically or mechanically interchangeable.

What is the mass of the AJ65SBTB1-32DT?

The unit mass is 0.25 kg. Shipping weight is 1.3 kg due to packaging.

What is the current consumption?

60 mA or less at 24 VDC with all points ON, plus a typical 7 mA per input channel.
