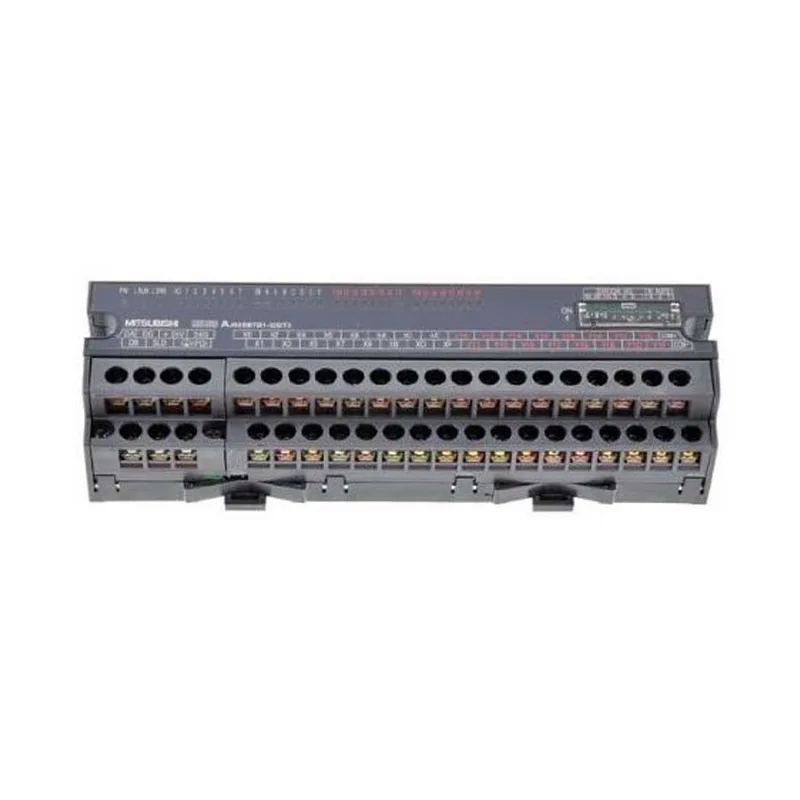

Mitsubishi Electric AJ65SBTB1-32DT3
MPNAJ65SBTB1-32DT3
CC-Link small type remote I / O unit (DC input / transistor output, terminal block)
$152.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | CC-Link small type remote I / O unit (DC input / transistor output, terminal block) AJ65SBTB 1-32DT3 |
| Station type | Remote I / O station |
| Withstand voltage | Between DC external terminal and ground: AC 500 V for 1 minute |
| Rated load voltage | DC 24V |
| Rated input voltage | DC 24 V (ripple ratio within 5%) (Allowable voltage range DC 19.2 to 26.4 V) |
| Over voltage category | II or less |
| ON voltage (ON current) | 15 V or more / 3 mA or more |
| Used load voltage range | DC 19.2 to 26.4 V (ripple ratio within 5%) |
| OFF voltage (OFF current) | 3 V or less / 0.5 mA or less |
| Unit power supply voltage | DC 20.4 to 26.4 V (ripple ratio within 5%) |
| Maximum voltage drop during ON | DC 0.3 V or less (TYP.) 0.5 A, DC 0.6 V or less (MAX.) 0.5 A |
| Output section external power supply voltage | DC 19.2 to 26.4 V (ripple ratio within 5%) |
All specifications+39 ▾
| Parameter | Value |
|---|---|
| Current | 60 mA or less (24 VDC, all points ON) |
| Rated input current | About 5 mA |
| Maximum load current | 0.5 A / 1 point, 3.6 A / 1 common |
| Leakage current at OFF | 0.1 mA or less |
| Maximum inrush current | 1.0 A less than 10 ms |
| Installation location | In the control panel |
| External wiring connection method | Communication part, unit power supply part: 7 points 2 piece terminal block (M3 screw) I / O power supply part, input / output part: 34 points Direct mounting terminal block (M3 screw) |
| Input response time OFF ? ON | 0.2 ms or less (24 VDC) |
| Output response time OFF ? ON | 0.5ms or less |
| Storage ambient temperature | -20 to 75 ° C |
| Operating ambient temperature | 0 to 55 ° C |
| Pollution degree | 2 or less |
| Surge suppressor | Zener diode |
| Storage ambient humidity | 10 to 90% RH, non condensing |
| Ambient operating humidity | 10 to 90% RH, non condensing |
| When there is continuous vibration | Frequency: 5 to 8.4 Hz, One amplitude: 1.75 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m / s 2 |
| Depth | 40 mm |
| Width | 179 mm |
| Shipping weight | 1.3 Kg |
| External dimensions height | 50 mm |
| Mass | 0.25 Kg |
| ON ? OFF | 1.5 ms or less (resistance load) |
| Input format | DC input (plus common type) |
| Manufacturer | Mitsubishi Electric |
| Common method | 32 points 1 common (terminal trapezoid 1 wire type) |
| Output format | Transistor output (sink type) |
| Use elevation | 0 to 2000 m |
| Use atmosphere | No corrosive gas |
| Input resistance | About 4.7 kO |
| Protection grade | IP2X |
| Impact resistance | Meets JIS B 3502, IEC 61131-2 (147 m / s 2 , 3 times in each of X, Y and Z directions) |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| Insulation resistance | DC external terminal collective to ground: 500 VDC DC insulation resistance meter 10 MO or more |
| Input isolation method | Photocoupler isolation |
| Number of input points | 16 points |
| Number of output points | 16 points |
| Output isolation method | Photocoupler isolation |
| Number of occupied stations | 1 station |
| Maximum number of simultaneous input points | 100% |
