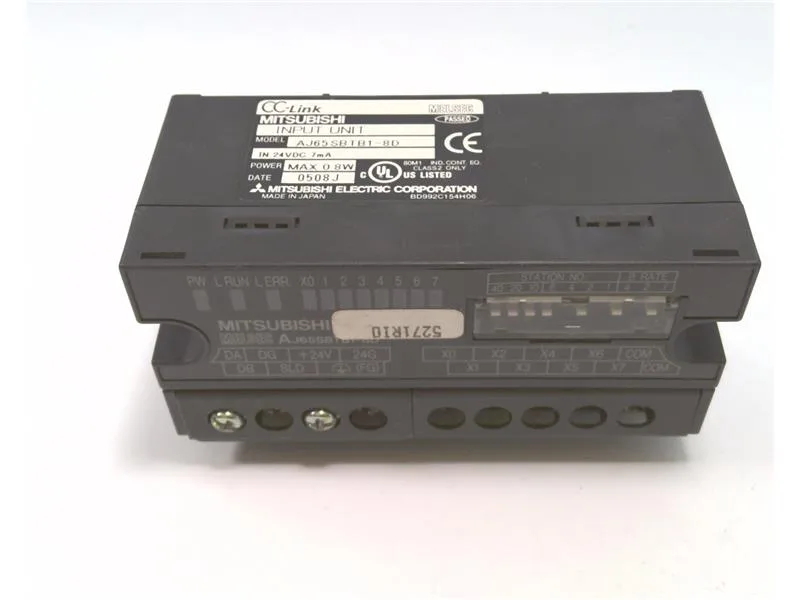

Mitsubishi Electric AJ65SBTB1-8D — PLC I/O & Expansion Modules

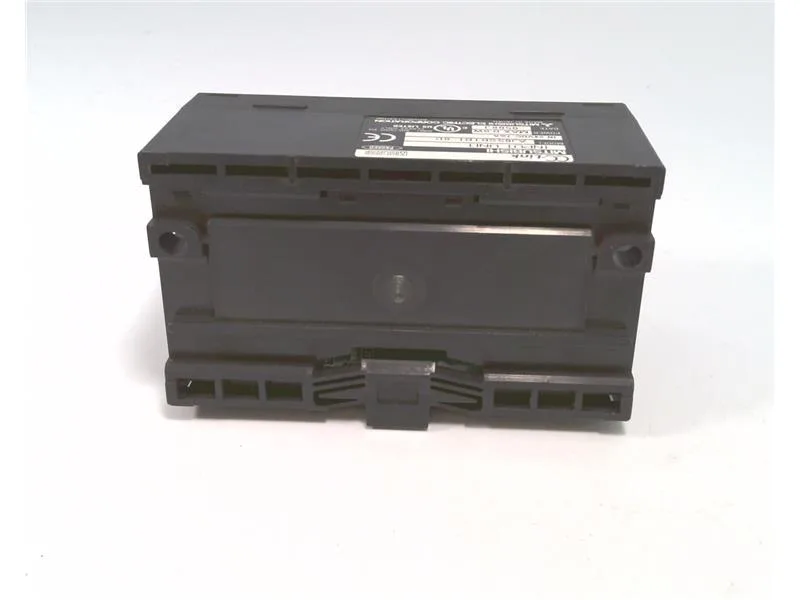

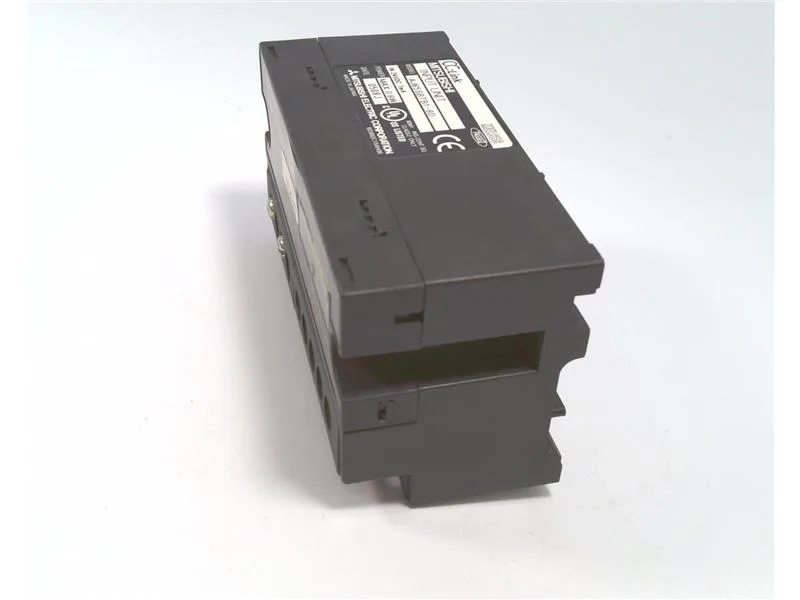

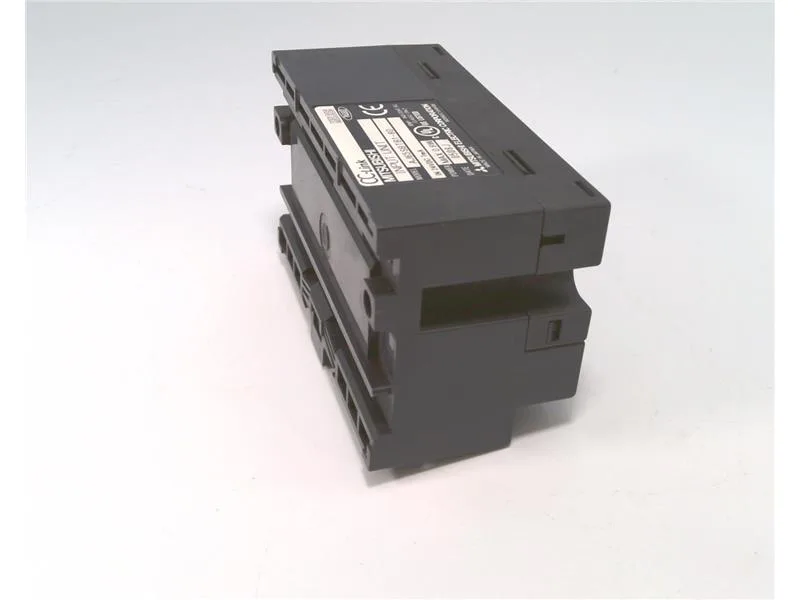

Mitsubishi AJ65SBTB1-8D CC-Link remote I/O, 8 DC inputs

MPNAJ65SBTB1-8D

Mitsubishi AJ65SBTB1-8D CC-Link small remote I/O unit, DC input, terminal block, 8 points, 24 VDC, 30 mA, 1 station.

$140.00 – $334.01Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AJ65SBTB1-8D key specifications
ParameterValue
Station typeRemote I / O station
Input common type8 points / common (terminal trapezoid 1 wire type)
Withstand voltageBetween DC external terminal and ground: AC 500 V for 1 minute
Rated input voltageDC 24 V (ripple ratio within 5%) (Allowable voltage range DC 19.2 to 26.4 V)
Over voltage categoryII or less
ON voltage (ON current)14 V or more / 3.5 mA or more
OFF voltage (OFF current)6 V or less / 1.7 mA or less
Unit power supply voltageDC 20.4 to 26.4 V (ripple ratio within 5%)
Current30 mA or less (24 VDC, all points ON)
Rated input currentAbout 7 mA
Installation locationIn the control panel
External wiring connection methodCommunication part, unit power supply part: 7 points 2 piece terminal block (M3 screw) I / O power supply part, input / output part: 10 points Direct mounting terminal block (M3 screw)

All specifications

AJ65SBTB1-8D additional specifications
ParameterValue
Input response time OFF → ON1.5 ms or less (24 VDC)
Storage ambient temperature-20 to 75 ° C
Operating ambient temperature0 to 55 ° C
Pollution degree2 or less
Storage ambient humidity10 to 90% RH, non condensing
Ambient operating humidity10 to 90% RH, non condensing
When there is continuous vibrationFrequency: 5 to 8.4 Hz, One amplitude: 1.75 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m / s 2
Depth40 mm
Width87.3 mm
Shipping weight1.1 Kg
External dimensions height50 mm
Mass0.14 Kg
ON → OFF1.5 ms or less (24 VDC)
Input formatDC input (plus common / minus common common type)
Use elevation0 to 2000 m
Use atmosphereNo corrosive gas
Input resistanceAbout 3.3 kΩ
Protection gradeIP2X
Impact resistanceMeets JIS B 3502, IEC 61131-2 (147 m / s 2 , 3 times in each of X, Y and Z directions)
Estimated lead timeUsually ships in 1 - 10 working days.
Insulation resistanceDC external terminal collective to ground: 500 VDC DC insulation resistance meter 10 MΩ or more
Input isolation methodPhotocoupler isolation
Number of input points8 points
Number of occupied stations1 station
Maximum number of simultaneous input points100%

Product details

The AJ65SBTB1-8D is a CC-Link remote I/O station that brings eight DC inputs back to the PLC over one network station. It's built for control-panel install: 87.3 mm wide, 40 mm deep, 50 mm tall — fits in a standard gland-plate layout without crowding the next slice. Rated input 24 VDC (19.2 to 26.4 V allowable), draws 30 mA with all points ON, and each input is photocoupler-isolated with a 3.3 kΩ input resistor. ON threshold is 14 V / 3.5 mA; OFF is 6 V / 1.7 mA. Response is 1.5 ms each way, which is fine for discrete sensing on a conveyor or station interlock.

The 8 points share one common terminal (trapezoid 1-wire type), so all inputs on this unit must be the same polarity — plus common or minus common, chosen at wiring. That's typical for CC-Link remote blocks, but if your field devices mix PNP and NPN, you'll need a separate unit per polarity. Input resistance is 3.3 kΩ, so the 7 mA rated input current is well within a standard 24 VDC sensor drive. Protection is IP2X — fine inside a control panel, not for washdown or dust. Terminal blocks are M3 screw type, 7-point for comms and power, 10-point for I/O — no special tools needed on site.

Frequently asked questions

Can the AJ65SBTB1-8D be used with FX3S-20MR/ES or FX5-ENET?

No. The AJ65SBTB1-8D is a CC-Link remote I/O station; FX3S-20MR/ES is a standalone PLC, and FX5-ENET is an Ethernet module. They serve different functions on different networks. There is no direct compatibility or drop-in replacement between them.

What are the key electrical ratings for the AJ65SBTB1-8D?

Rated input voltage is 24 VDC (19.2 to 26.4 V allowable). Input current is about 7 mA per point; unit draw is 30 mA at 24 VDC with all points ON. ON threshold is 14 V / 3.5 mA; OFF threshold is 6 V / 1.7 mA. Response time is 1.5 ms or less for both ON and OFF transitions.
