8-point AC output slice for CC-Link fieldbus

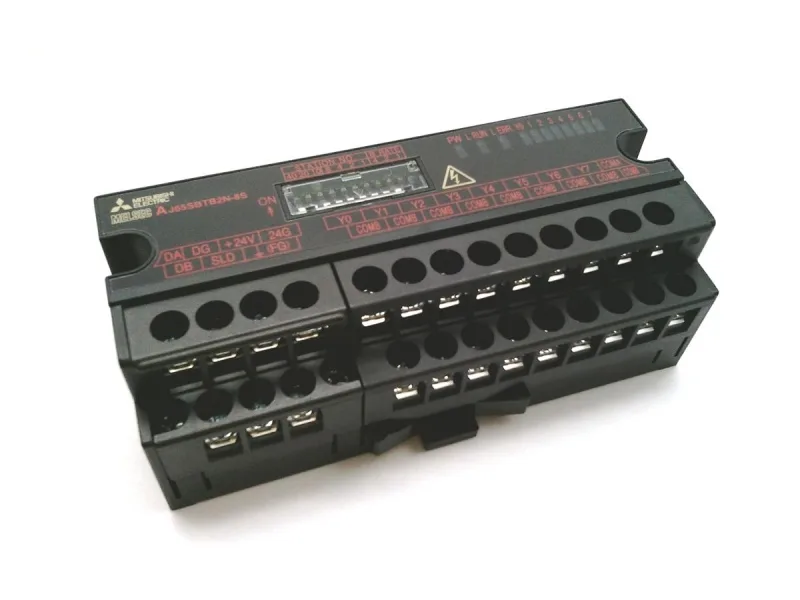

The AJ65SBTB2N-8S is a compact remote I/O module on the CC-Link network, providing 8 output points rated at 0.6 A per point with a common limit of 2.4 A — enough to drive small contactors, solenoid valves, or indicator lamps on a conveyor or material handling line. Rated load voltage is 100 to 240 VAC at 50/60 Hz, with a maximum of 264 VAC — the module handles standard line voltages across most regions without a step-down transformer. Photocoupler isolation between the field outputs and the CC-Link bus protects the master controller from load-side faults — a practical choice when outputs share a panel with motor starters or other inductive loads.
Minimum load and switching reliability
The minimum load conditions are specified at 50 VAC with 100 mA, 100 VAC with 10 mA, and 240 VAC — this ensures the output triac or relay (depending on variant) switches cleanly without false triggering on small-signal AC loads like pilot lights or PLC input simulators. Load voltage distortion must stay within 5% — if the panel feeds a VFD or UPS that introduces harmonics, a line filter ahead of the module keeps the output switching reliable.
