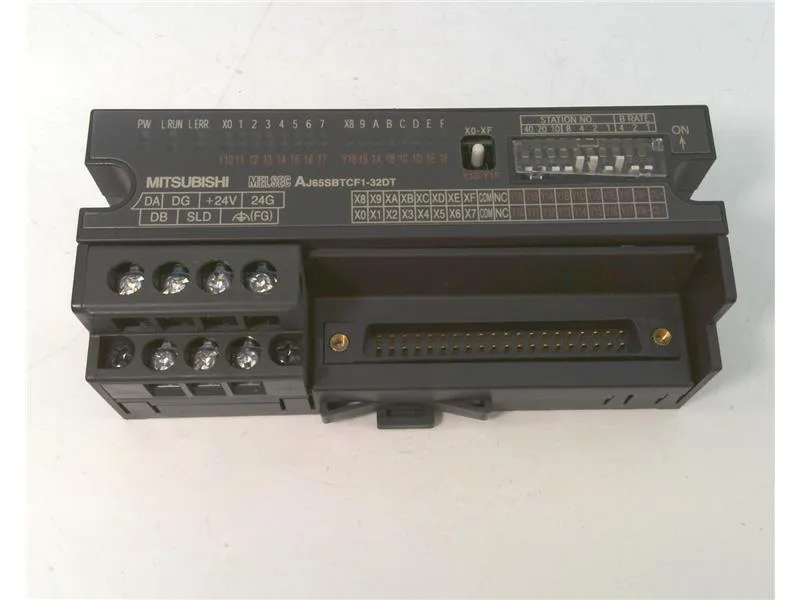

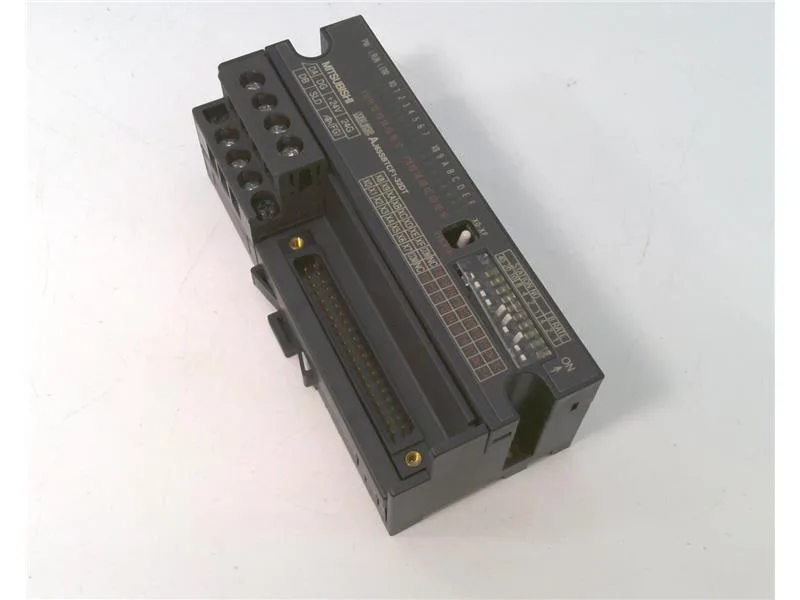

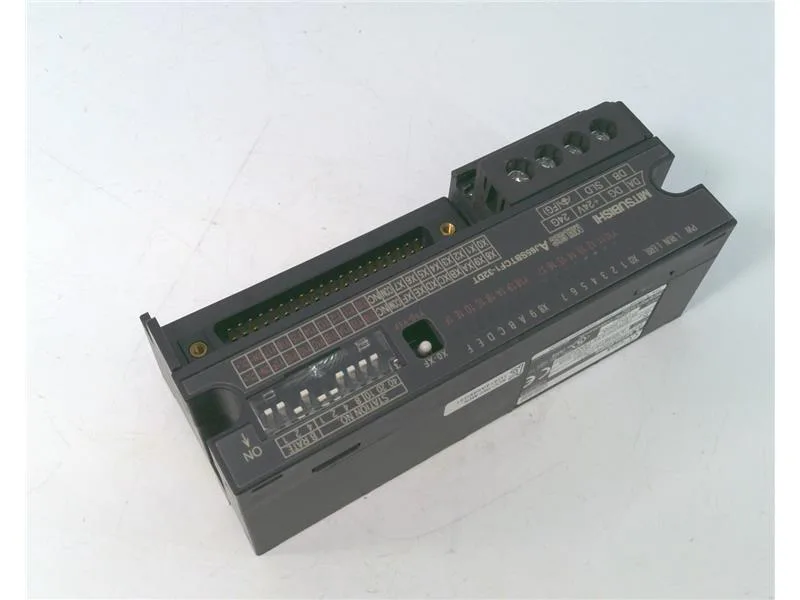

Mitsubishi Electric AJ65SBTCF1-32DT, 16-point sinking/sourcing input expansion module for PLC, 0.45 kg, mature lifecycle stage.
| Parameter | Value |
|---|---|
| Weight | 0.45 kgs |
The Mitsubishi AJ65SBTCF1-32DT is a 16-point sinking/sourcing input expansion module, designed to add discrete input capacity to a Mitsubishi PLC system. Each channel can be configured as either sinking (NPN) or sourcing (PNP) depending on the common wiring — this flexibility lets the same module handle both sensor types on the same rack without a separate interface board.
Sinking (NPN) inputs switch the load to ground — the sensor sources current into the module. Sourcing (PNP) inputs switch the load to positive — the module sources current to the sensor. The AJ65SBTCF1-32DT supports both configurations, so you can mix NPN and PNP sensors on the same module by wiring the commons accordingly.
The AJ65SBTCF1-32DT is part of the Mitsubishi PLC expansion module family. Compatibility with specific FX series CPUs depends on the backplane connector and addressing scheme — confirm the CPU model and the expansion bus protocol before ordering.
