Mitsubishi Electric AJ65VBTCE32-16DT — Digital Output Modules

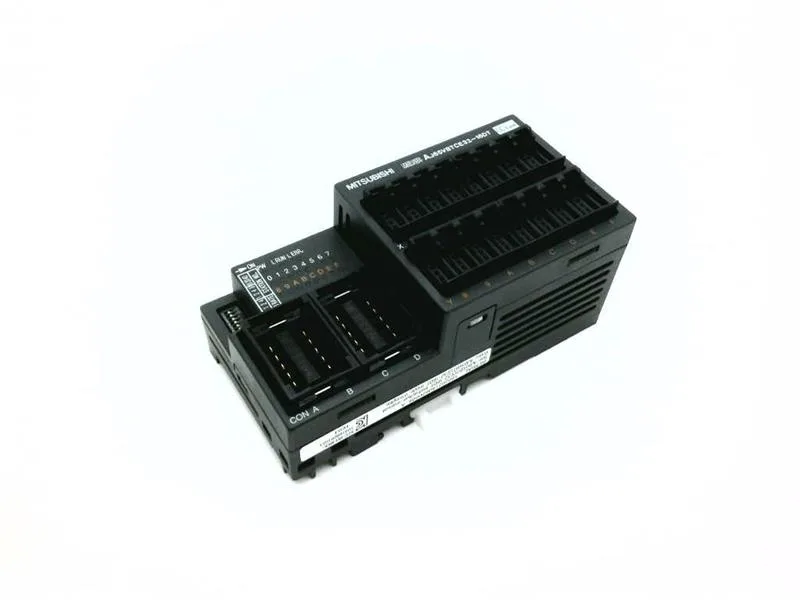

Mitsubishi AJ65VBTCE32-16DT Remote I/O, 8I/8O, DC 24V

MPNAJ65VBTCE32-16DT

Mitsubishi AJ65VBTCE32-16DT remote I/O station, CC-Link, 8 DC inputs / 8 transistor outputs, DC 24 V.

$298.00 – $809.36Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AJ65VBTCE32-16DT key specifications
ParameterValue
Station typeRemote I / O station
Withstand voltageBetween DC external terminal and ground: AC 500 V for 1 minute
Rated load voltageDC 24V
Rated input voltageDC 24 V (ripple ratio within 5%) (Allowable voltage range DC 19.2 to 26.4 V)
Over voltage categoryII or less
ON voltage (ON current)14 V or more / 3.5 mA or more
Used load voltage rangeDC 19.2 to 26.4 V (ripple ratio within 5%)
OFF voltage (OFF current)6 V or less / 1.7 mA or less
Unit power supply voltageDC 20.4 to 26.4 V (ripple ratio within 5%)
Maximum voltage drop during ONDC 0.1 V or less (TYP.) 0.1 A, DC 0.2 V or less (MAX.) 0.1 A
Output section external power supply voltageDC 19.2 to 26.4 V (ripple ratio within 5%)
Current40 mA or less (24 VDC, all points ON)

All specifications

AJ65VBTCE32-16DT additional specifications
ParameterValue
Rated input currentAbout 5 mA
Maximum load current0.1 A / 1 point, 0.8 A / 1 common
Leakage current at OFF0.1 mA or less
Maximum inrush current0.7 A less than 10 ms
Communication cableVer.1.10 compatible CC-Link dedicated cable: FANC-110SBH, FA-CBL 200PSBH, CS-110
Installation locationIn the control panel
External wiring connection methodCommunication unit: One-touch connector for communication (sold separately) Unit power supply unit, I / O power supply unit: Power supply . FG one-touch connector (sold separately) Input / output unit: sensor connector (e-CON)
Input response time OFF → ON1.5 ms or less (24 VDC)
Output response time OFF → ON1ms or less
Storage ambient temperature-20 to 75 ° C
Operating ambient temperature0 to 55 ° C
Pollution degree2 or less
Surge suppressorZener diode
Storage ambient humidity10 to 90% RH, non condensing
Ambient operating humidity10 to 90% RH, non condensing
When there is continuous vibrationFrequency: 5 to 8.4 Hz, One amplitude: 1.75 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m / s 2
Depth45.5 mm
Width100 mm
Shipping weight1.2 Kg
External dimensions height50 mm
Mass0.11 Kg
ON → OFF1 ms or less (resistance load)
Input formatDC input (plus common type)
Common method16 points 1 common (Input: sensor connector (e-CON) type 3 wire type, output: sensor connector (e-CON type 2 wire type)
Output formatTransistor output (sink type)
Use elevation0 to 2000 m
Use atmosphereNo corrosive gas
Input resistanceAbout 4.7 kΩ
Protection gradeIP 1 XB
Impact resistanceMeets JIS B 3502, IEC 61131-2 (147 m / s 2 , 3 times in each of X, Y and Z directions)
Estimated lead timeUsually ships in 1 - 10 working days.
Protection functionOverload protection function, overvoltage protection function, overheat protection function
Insulation resistanceDC external terminal collective to ground: 500 VDC DC insulation resistance meter 10 MΩ or more
Input isolation methodPhotocoupler isolation
Number of input points8 points
Number of output points8 points
Output isolation methodPhotocoupler isolation
Number of occupied stations1 station
Maximum number of simultaneous input points100%

Product details

The Mitsubishi AJ65VBTCE32-16DT is a CC-Link remote I/O station offering 8 DC inputs (plus common, sensor connector e-CON type) and 8 transistor sink outputs, each rated 0.1 A at 24 VDC. Response time is 1 ms or less for resistance loads, making it suitable for high-speed sensing and actuation in distributed control layouts. Inputs are photocoupler-isolated with a 4.7 kΩ input resistance and ON voltage threshold of 14 V. Outputs include overload, overvoltage, and overheat protection, plus a Zener diode surge suppressor.

FANC-110SBH). The 100 mm width and 45.5 mm depth fit standard DIN-rail enclosures inside a control panel.
