Mitsubishi AJ65VBTCE32-32DT is a CC-Link remote I/O station that packs 16 DC inputs and 16 transistor-sink outputs into a 155 mm wide module. It draws 45 mA or less at 24 VDC with all points ON, and the input OFF time on resistive loads is 1 ms or less — no parasitic delay in fast shutdown paths. The module's protection functions — overload, overvoltage, overheat — give early warning before a fault takes a line down. The photocoupler isolation on both input and output sides keeps surges from jumping between field and bus. Communication runs over CC-Link Ver.1.10 with dedicated cable (FANC-110SBH or equivalent). Inputs are plus-common DC, 4.7 kΩ impedance, rated 24 VDC (19.2 to 26.4 V range). Outputs are sink-type transistor, 0.1 A per point, 1.6 A per common, with surge suppression via Zener diode.
Mitsubishi AJ65VBTCE32-32DT Remote I/O 16In/16Out
MPNAJ65VBTCE32-32DT

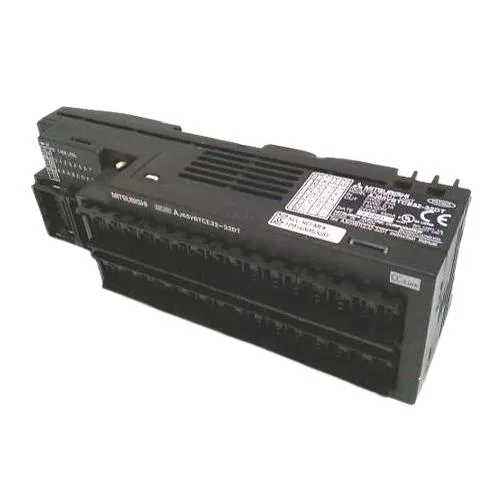

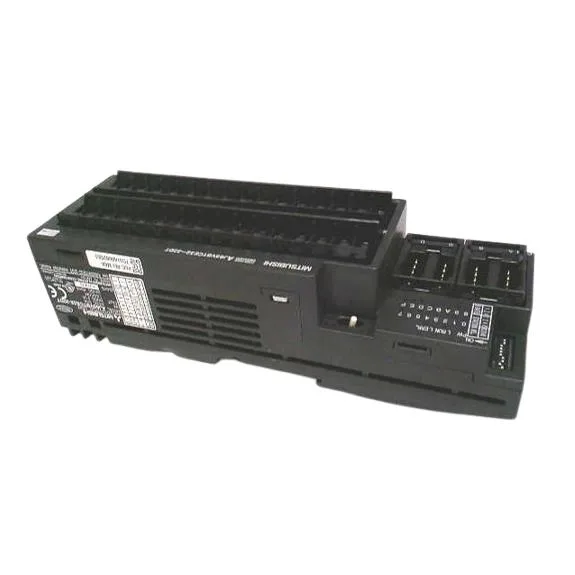

Mitsubishi AJ65VBTCE32-32DT CC-Link remote I/O station, 16 DC inputs plus 16 transistor-sink outputs, 45 mA bus draw, 0.16 kg.
$332.00 – $825.80Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Station type | Remote I / O station |
| Withstand voltage | Between DC external terminal and ground: AC 500 V for 1 minute |
| Rated load voltage | DC 24V |
| Rated input voltage | DC 24 V (ripple ratio within 5%) (Allowable voltage range DC 19.2 to 26.4 V) |
| Over voltage category | II or less |
| ON voltage (ON current) | 14 V or more / 3.5 mA or more |
| Used load voltage range | DC 19.2 to 26.4 V (ripple ratio within 5%) |
| OFF voltage (OFF current) | 6 V or less / 1.7 mA or less |
| Unit power supply voltage | DC 20.4 to 26.4 V (ripple ratio within 5%) |
| Maximum voltage drop during ON | DC 0.1 V or less (TYP.) 0.1 A, DC 0.2 V or less (MAX.) 0.1 A |
| Output section external power supply voltage | DC 19.2 to 26.4 V (ripple ratio within 5%) |
| Current | 45 mA or less (24 VDC, all points ON) |
All specifications+39 ▾
| Parameter | Value |
|---|---|
| Rated input current | About 5 mA |
| Maximum load current | 0.1 A / 1 point, 1.6 A / 1 common |
| Leakage current at OFF | 0.1 mA or less |
| Maximum inrush current | 0.7 A less than 10 ms |
| Communication cable | Ver.1.10 compatible CC-Link dedicated cable: FANC-110SBH, FA-CBL 200PSBH, CS-110 |
| Installation location | In the control panel |
| External wiring connection method | Communication unit: One-touch connector for communication (sold separately) Unit power supply unit, I / O power supply unit: Power supply . FG one-touch connector (sold separately) Input / output unit: sensor connector (e-CON) |
| Input response time OFF → ON | 1.5 ms or less (24 VDC) |
| Output response time OFF → ON | 1ms or less |
| Storage ambient temperature | -20 to 75 ° C |
| Operating ambient temperature | 0 to 55 ° C |
| Pollution degree | 2 or less |
| Surge suppressor | Zener diode |
| Storage ambient humidity | 10 to 90% RH, non condensing |
| Ambient operating humidity | 10 to 90% RH, non condensing |
| When there is continuous vibration | Frequency: 5 to 8.4 Hz, One amplitude: 1.75 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m / s 2 |
| Depth | 45.5 mm |
| Width | 155 mm |
| Shipping weight | 1.2 Kg |
| External dimensions height | 50 mm |
| Mass | 0.16 Kg |
| ON → OFF | 1 ms or less (resistance load) |
| Input format | DC input (plus common type) |
| Common method | 32 inputs 1 common (Input: sensor connector (e - CON) type 3 wire type, output: sensor connector (e - CON type 2 wire type) |
| Output format | Transistor output (sink type) |
| Use elevation | 0 to 2000 m |
| Use atmosphere | No corrosive gas |
| Input resistance | About 4.7 kΩ |
| Protection grade | IP 1 XB |
| Impact resistance | Meets JIS B 3502, IEC 61131-2 (147 m / s 2 , 3 times in each of X, Y and Z directions) |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| Protection function | Overload protection function, overvoltage protection function, overheat protection function |
| Insulation resistance | DC external terminal collective to ground: 500 VDC DC insulation resistance meter 10 MΩ or more |
| Input isolation method | Photocoupler isolation |
| Number of input points | 16 points |
| Number of output points | 16 points |
| Output isolation method | Photocoupler isolation |
| Number of occupied stations | 1 station |
| Maximum number of simultaneous input points | 100% |
