Mitsubishi Electric AJ65VBTCU-68DAVN — Analog Output Modules

Mitsubishi AJ65VBTCU-68DAVN CC-Link 8-Ch Analog Output, ±10

MPNAJ65VBTCU-68DAVN

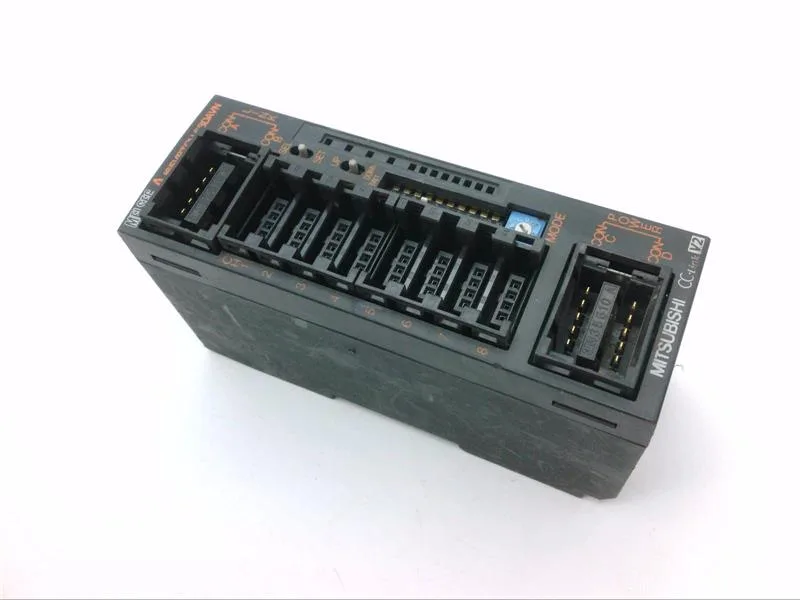

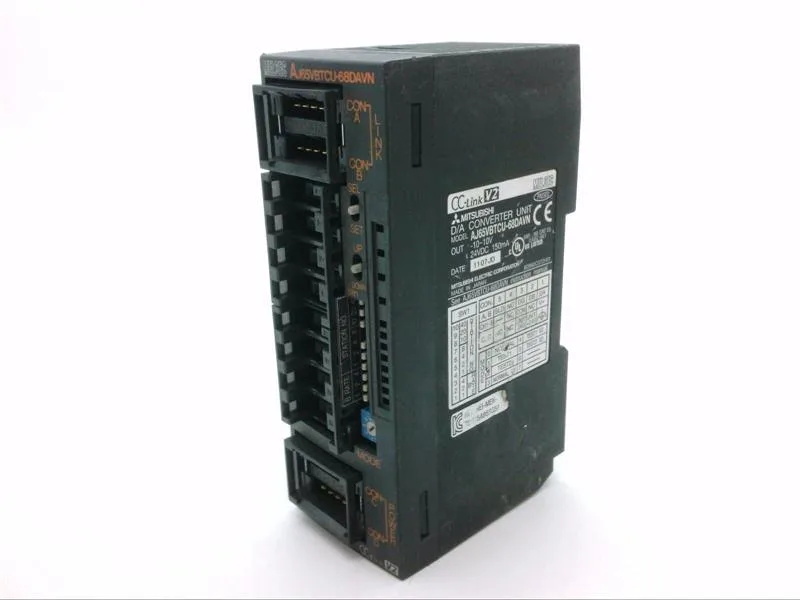

Mitsubishi AJ65VBTCU-68DAVN CC-Link digital-analog conversion unit, 8 analog output channels (8 points), voltage output from ±10 V through 0–5 V and 1–5 V, 1 ms/ch conversion speed, 0.15 A at 24 VDC, mass 0.16 kg.

$646.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AJ65VBTCU-68DAVN key specifications
ParameterValue
Product typeCC - Link Digital - Analog Conversion Unit
Station typeRemote device station (Ver.1 remote device station or Ver.2 remote device station)
Withstand voltagePower supply . Communication system all together and analog output Batch: AC 500 V for 1 minute
Analog output voltageDC-10 to + 10 V (external load resistance value: 2 kO to 1 MO)
Over voltage categoryII or less
Voltage output 0 to 50 to 4000 (1.25 mV)
Unit power supply voltageDC 24 V (DC 20.4 to 26.4 V, ripple ratio within 5%)
Absolute maximum output voltage± 12 V
Current0.15 A (at 24 VDC)
Inrush current4.3 A, 1.2 ms or less
Output short circuit protectionThere
Communication cableVer.1.10 compatible CC-Link dedicated cable: FANC-110SBH, FA-CBL 200PSBH, CS-110

All specifications

AJ65VBTCU-68DAVN additional specifications
ParameterValue
Installation locationIn the control panel
External wiring connection methodOne-touch connector for communication (sold separately) Unit power supply unit: Power supply . One touch connector for FG (sold separately) Input / output unit: One touch connector for I / O (sold separately)
Operating temperature0 to 55 ° C : ± 0.3%
Storage ambient temperature-20 to 75 ° C
Operating ambient temperature0 to 55 ° C
Accuracy (accuracy with respect to the maximum value of the analog output value) ambient temperature25 ± 5 ° C : ± 0.2%
Pollution degree2 or less
Storage ambient humidity10 to 90% RH, non condensing
Ambient operating humidity10 to 90% RH, non condensing
When there is continuous vibrationFrequency: 5 to 8.4 Hz, One amplitude: 1.75 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m / s 2
Depth67 mm
Width41 mm
Shipping weight1 Kg
External dimensions height115 mm
Mass0.16 Kg
1 to 50 to 4000 (1 mV)
-10 to 10-4000 to 4000 (2.5 mV)
Digital input-4096 to + 4095
Use elevation0 to 2000 m
Use atmosphereNo corrosive gas
Protection gradeIP 1 XB
Impact resistanceMeets JIS B 3502, IEC 61131-2 (147 m / s 2 , 3 times in each of X, Y and Z directions)
Insulation methodCommunication system and analog output at one time: Photocoupler Isolated power supply system and analog output at one time: Transformer Isolation channel to non-insulation
Estimated lead timeUsually ships in 1 - 10 working days.
D (A conversion speed)1 ms / channel
Number of occupied stationsVer.1 Remote device station: 3 stations Ver.2 Remote device station: 1 station (extended cyclic setting: 4 times)
Number of analog output points8 points (8 channels)
User range setting 2 (0 to 5 v)0 to 4000 (1 mV)
User range setting 1 (-10 to 10 v)-4000 to 4000 (2.5 mV)
I (O characteristics, resolution output range)Digital input value (maximum resolution)

Product details

The Mitsubishi AJ65VBTCU-68DAVN is a CC-Link remote device station (Ver.1 or Ver.2) that provides 8 channels of isolated analog voltage output. It accepts digital input values from -4096 to +4095 and converts them to one of three user-selectable ranges: -10 to +10 V, 0 to 5 V, or 1 to 5 V. Conversion speed is 1 ms per channel, suitable for real-time control loops. The unit draws 0.15 A from a 24 VDC supply (20.4–26.4 V, ripple ≤5%), and its inrush current is 4.3 A for less than 1.2 ms. Ambient operating range is 0 to 55°C with ±0.3% accuracy across that band.

Output ranges and resolution

Each range has a dedicated digital-to-analog scaling: the -10 to +10 V span maps to -4000 to +4000 with a resolution of 2.5 mV per LSB. The 0 to 5 V range covers 0 to 4000 counts at 1.25 mV/LSB, and the 1 to 5 V range also covers 0 to 4000 counts but at 1 mV/LSB. The absolute maximum output voltage is ±12 V, with built-in short-circuit protection. Isolation between the communication system and the analog output is via photocoupler; the power supply is transformer-isolated from the output. Channels are non-isolated from each other.

Frequently asked questions

How many analog output channels does it have?

It provides 8 analog output points (8 channels).

What is the conversion speed?

D/A conversion speed is 1 ms per channel.

What is the physical mass of the unit?

The mass is 0.16 kg.
