Mitsubishi Electric AJ65VBTS2-16T — Digital Output Modules

Mitsubishi AJ65VBTS2-16T Remote I/O, 16-Point Transistor Sin

MPNAJ65VBTS2-16T

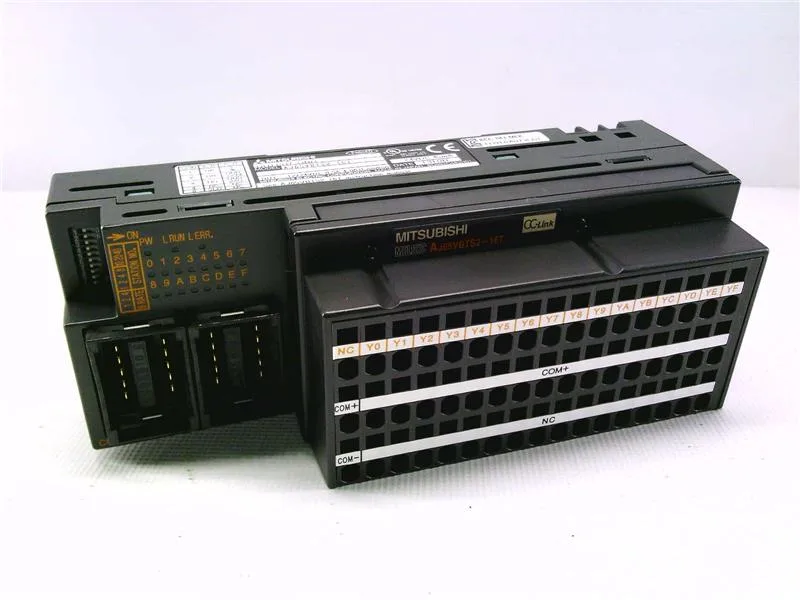

Mitsubishi AJ65VBTS2-16T, Remote I/O station, 16-point transistor output (sink type), 0.5 A per point, CC-Link communication, 0.24 kg.

$300.22 – $332.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AJ65VBTS2-16T key specifications
ParameterValue
Station typeRemote I / O station
Withstand voltageBetween DC external terminal and ground: AC 500 V for 1 minute
Rated load voltageDC12 / 24V
Over voltage categoryII or less
Used load voltage rangeDC 10.2 to 26.4 V (ripple ratio within 5%)
Unit power supply voltageDC 20.4 to 26.4 V (ripple ratio within 5%)
Maximum voltage drop during ONDC 0.3 V or less (TYP.) 0.5 A, DC 0.6 V or less (MAX.) 0.5 A
Output section external power supply voltageDC 10.2 to 26.4 V (ripple ratio within 5%)
Current45 mA or less (24 VDC, all points ON)
Maximum load current0.5 A / 1 point, 4 A / 1 common
Leakage current at OFF0.1 mA or less
Maximum inrush current1.0 A less than 10 ms

All specifications

AJ65VBTS2-16T additional specifications
ParameterValue
Communication cableVer.1.10 compatible CC-Link dedicated cable: FANC-110SBH, FA-CBL 200PSBH, CS-110
Installation locationIn the control panel
External wiring connection methodCommunication unit: One-touch connector for communication (sold separately) Unit power supply unit, input / output power supply unit: Power supply . FG one-touch connector (sold separately) Input / output unit: 2 piece spring clamp terminal block
Output response time OFF → ON1ms or less
Storage ambient temperature-20 to 75 ° C
Operating ambient temperature0 to 55 ° C
Pollution degree2 or less
Surge suppressorZener diode
Storage ambient humidity10 to 90% RH, non condensing
Ambient operating humidity10 to 90% RH, non condensing
When there is continuous vibrationFrequency: 5 to 8.4 Hz, One amplitude: 1.75 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m / s 2
Depth51.5 mm
Width137 mm
Shipping weight1.2 Kg
External dimensions height50 mm
Mass0.24 Kg
ON → OFF1 ms or less (resistance load)
Output formatTransistor output (sink type)
Use elevation0 to 2000 m
Use atmosphereNo corrosive gas
Protection gradeIP 1 XB
Impact resistanceMeets JIS B 3502, IEC 61131-2 (147 m / s 2 , 3 times in each of X, Y and Z directions)
Estimated lead timeUsually ships in 1 - 10 working days.
Output common method16 points 1 common (Spring clamp terminal trapezoid 2 wire type)
Insulation resistanceDC external terminal collective to ground: 500 VDC DC insulation resistance meter 10 MΩ or more
Number of output points16 points
Output isolation methodPhotocoupler isolation
Number of occupied stations1 station

Product details

The AJ65VBTS2-16T is a 16-point transistor output remote I/O station for Mitsubishi CC-Link networks. Outputs are sink type (common-negative), each rated 0.5 A at DC 12/24 V, with a 4 A total per common terminal — that common limit governs simultaneous actuator loads like multiple solenoids. The station occupies one CC-Link station and communicates via Ver.1.10 dedicated cable (FANC-110SBH or equivalent). Unit power supply is DC 24 V (20.4–26.4 V range), drawing 45 mA with all points ON.

Integration and mounting notes

Mounts inside a control panel (IP 1XB) with dimensions 137 mm wide × 50 mm high × 51.5 mm deep. The 16 outputs terminate on a 2-piece spring clamp block per common (16 points / common). Communication and power use sold-separate one-touch connectors — factor that into your BOM line item for the CC-Link drop cable and power supply connector. Operating temperature range is 0–55 °C; storage -20–75 °C. Pollution degree 2, overvoltage category II. Shock resistance meets JIS B 3502 and IEC 61131-2 (147 m/s², 3 directions). For installations with continuous vibration, derate below 8.4 Hz at 1.75 mm amplitude.
