Mitsubishi Electric AJ65VBTS3-32D — PLC I/O & Expansion Modules

Mitsubishi AJ65VBTS3-32D CC-Link 32-Point DC Input Remote I/

MPNAJ65VBTS3-32D

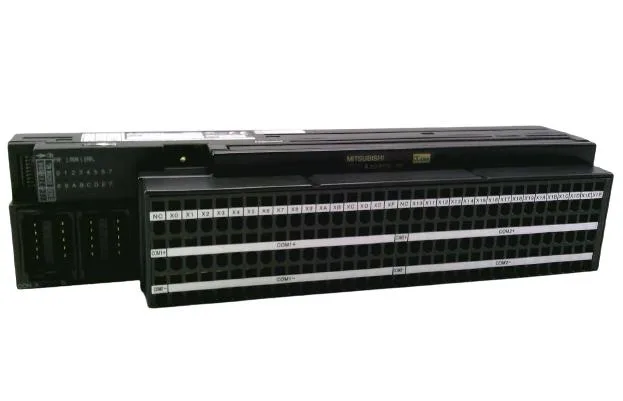

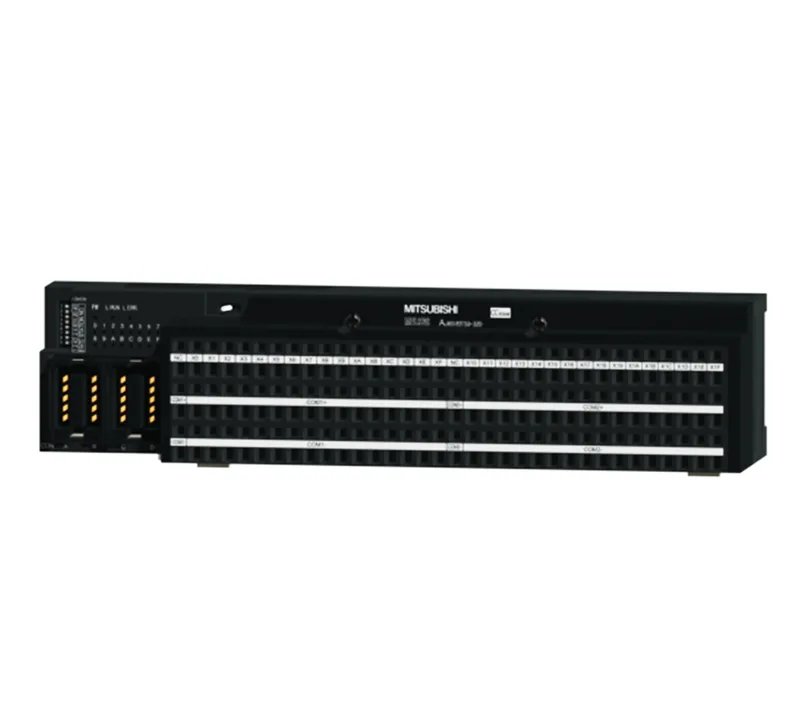

Mitsubishi CC-Link small type remote I/O unit, AJ65VBTS3-32D, 32 DC input points, spring clamp terminal block, 24 VDC, 5 mA input, 1.5 ms response, 0.41 kg.

$332.00 – $722.99Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AJ65VBTS3-32D key specifications
ParameterValue
Station typeRemote I / O station
Input common type16 points 1 common (Spring clamp terminal trapezoid 3 wire type)
Withstand voltageBetween DC external terminal and ground: AC 500 V for 1 minute
Rated input voltageDC 24 V (ripple ratio within 5%) (Allowable voltage range DC 19.2 to 26.4 V)
ON voltage (ON current)14 V or more / 3.5 mA or more
OFF voltage (OFF current)6 V or less / 1.7 mA or less
Unit power supply voltageDC 20.4 to 26.4 V (ripple ratio within 5%)
Current40 mA or less (24 VDC, all points ON)
Rated input currentAbout 5 mA
Communication cableVer.1.10 compatible CC-Link dedicated cable: FANC-110SBH, FA-CBL 200PSBH, CS-110
External wiring connection methodCommunication unit: One-touch connector for communication (sold separately) Unit power supply unit, input / output power supply unit: Power supply . FG one-touch connector (sold separately) Input / output unit: 2 piece spring clamp terminal block
Input response time OFF → ON1.5 ms or less (24 VDC)

All specifications

AJ65VBTS3-32D additional specifications
ParameterValue
Depth51.5 mm
Width222 mm
Shipping weight1.4 Kg
External dimensions height50 mm
Mass0.41 Kg
ON → OFF1.5 ms or less (24 VDC)
Input formatDC input (plus common type)
Input resistanceAbout 4.7 kΩ
Protection gradeIP 1 XB
Estimated lead timeUsually ships in 1 - 10 working days.
Insulation resistanceDC external terminal collective to ground: 500 VDC DC insulation resistance meter 10 MΩ or more
Input isolation methodPhotocoupler isolation
Number of input points32 points
Number of occupied stations1 station
Maximum number of simultaneous input points100% (when mounted on the front), see the derating chart except when front mounted

Product details

The Mitsubishi AJ65VBTS3-32D is a CC-Link small-type remote I/O unit delivering 32 DC input points (plus common type) in a compact package. It occupies 1 station on the CC-Link network and connects via a spring-clamp terminal block (2-piece type). Rated input voltage is 24 VDC (allowable range 19.2 to 26.4 V) with about 5 mA per point. Input response time is 1.5 ms or less both ON→OFF and OFF→ON. Isolation is via photocoupler; insulation resistance 10 MΩ or more at 500 VDC.

Power & signal

Unit power supply is DC 20.4 to 26.4 V. The unit itself draws 40 mA or less (24 VDC, all points ON). Input ON threshold is 14 V / 3.5 mA; OFF threshold 6 V / 1.7 mA. Input resistance about 4.7 kΩ. Withstand voltage between DC external terminal and ground: AC 500 V for 1 minute.

Frequently asked questions

What are the key specifications of the AJ65VBTS3-32D?

32 DC input points (plus common type), 24 VDC nominal (19.2–26.4 V range), input current ~5 mA, response time 1.5 ms, photocoupler isolation, IP1XB, mass 0.41 kg, dimensions 222×50×51.5 mm, occupies 1 CC-Link station, spring-clamp terminals.

What is the mass of the AJ65VBTS3-32D?

0.41 kg.

What is the current consumption of the AJ65VBTS3-32D?

40 mA or less (at 24 VDC, all points ON).

MPN
AJ65VBTS3-32D
