Mitsubishi Electric AJ65VBTS32-32DT — Digital Output Modules

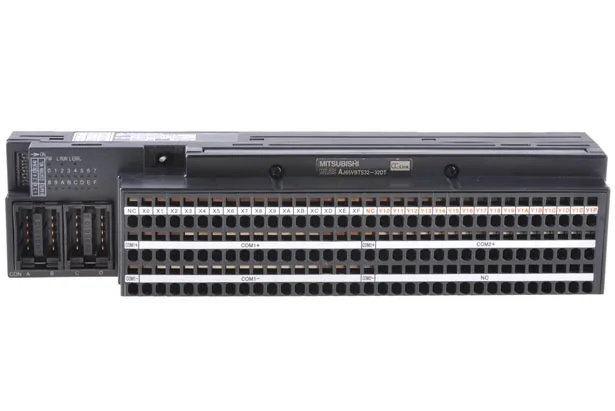

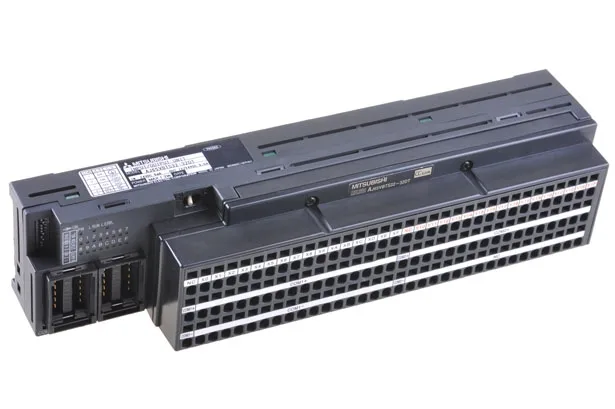

Mitsubishi AJ65VBTS32-32DT Remote I/O, 16in/16out, CC-Link

MPNAJ65VBTS32-32DT

Mitsubishi AJ65VBTS32-32DT, CC-Link remote I/O station, 16 DC inputs (plus common), 16 transistor outputs (sink), rated 24 VDC. Mature lifecycle, active production.

$332.00 – $773.57Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

AJ65VBTS32-32DT key specifications
ParameterValue
Station typeRemote I / O station
Input common type16 points 1 common (Spring clamp terminal trapezoid 3 wire type)
Withstand voltageBetween DC external terminal and ground: AC 500 V for 1 minute
Rated load voltageDC12 / 24V
Rated input voltageDC 24 V (ripple ratio within 5%) (Allowable voltage range DC 19.2 to 26.4 V)
Over voltage categoryII or less
ON voltage (ON current)14 V or more / 3.5 mA or more
Used load voltage rangeDC 10.2 to 26.4 V (ripple ratio within 5%)
OFF voltage (OFF current)6 V or less / 1.7 mA or less
Unit power supply voltageDC 20.4 to 26.4 V (ripple ratio within 5%)
Maximum voltage drop during ONDC 0.3 V or less (TYP.) 0.5 A, DC 0.6 V or less (MAX.) 0.5 A
Output section external power supply voltageDC 10.2 to 26.4 V (ripple ratio within 5%)

All specifications

AJ65VBTS32-32DT additional specifications
ParameterValue
Current50 mA or less (24 VDC, all points ON)
Rated input currentAbout 5 mA
Maximum load current0.5 A / 1 point, 4 A / 1 common
Leakage current at OFF0.1 mA or less
Maximum inrush current1.0 A less than 10 ms
Communication cableVer.1.10 compatible CC-Link dedicated cable: FANC-110SBH, FA-CBL 200PSBH, CS-110
Installation locationIn the control panel
External wiring connection methodCommunication unit: One-touch connector for communication (sold separately) Unit power supply unit, input / output power supply unit: Power supply . FG one-touch connector (sold separately) Input / output unit: 2 piece spring clamp terminal block
Input response time OFF → ON1.5 ms or less (24 VDC)
Output response time OFF → ON1ms or less
Storage ambient temperature-20 to 75 ° C
Operating ambient temperature0 to 55 ° C
Pollution degree2 or less
Surge suppressorZener diode
Storage ambient humidity10 to 90% RH, non condensing
Ambient operating humidity10 to 90% RH, non condensing
When there is continuous vibrationFrequency: 5 to 8.4 Hz, One amplitude: 1.75 mm Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m / s 2
Depth51.5 mm
Width222 mm
Shipping weight1.4 Kg
External dimensions height50 mm
Mass0.41 Kg
ON → OFF1 ms or less (resistance load)
Input formatDC input (plus common type)
Output formatTransistor output (sink type)
Use elevation0 to 2000 m
Use atmosphereNo corrosive gas
Input resistanceAbout 4.7 kΩ
Protection gradeIP 1 XB
Impact resistanceMeets JIS B 3502, IEC 61131-2 (147 m / s 2 , 3 times in each of X, Y and Z directions)
Estimated lead timeUsually ships in 1 - 10 working days.
Output common method16 points 1 common (Spring clamp terminal trapezoid 2 wire type)
Insulation resistanceDC external terminal collective to ground: 500 VDC DC insulation resistance meter 10 MΩ or more
Input isolation methodPhotocoupler isolation
Number of input points16 points
Number of output points16 points
Output isolation methodPhotocoupler isolation
Number of occupied stations1 station
Maximum number of simultaneous input points100% (when mounted on the front), see the derating chart except when front mounted

Product details

The AJ65VBTS32-32DT is a CC-Link remote I/O station from Mitsubishi's AJ65 series, carrying 16 DC inputs (plus common type) and 16 transistor outputs (sink type). It operates on 24 VDC with an allowable range of 19.2 to 26.4 V on the input side and 20.4 to 26.4 V for the unit power supply. Each output is rated for 0.5 A per point, with a per-common limit of 4 A. The station draws 50 mA or less from the 24 V supply when all points are ON. Input resistance is about 4.7 kΩ, with an ON threshold of 14 V / 3.5 mA and OFF below 6 V / 1.7 mA. Protection is via photocoupler isolation, with a zener diode surge suppressor on the outputs. The spring-clamp terminals accept trapezoid 3-wire type for inputs and 2-wire for outputs, with 16 points per common.

The CC-Link bus uses Ver.1.10 compatible cable (FANC-110SBH, FA-CBL 200PSBH, or CS-110). Ensure the master is also Ver.1.10 or backward-compatible to avoid communication mismatches.

Panel Integration & Wiring Notes

Inputs are grouped 16 points per common (spring clamp trapezoid 3-wire type). Outputs are 16 points per common (spring clamp trapezoid 2-wire type). Surge suppression is built-in via zener diode per output. Withstand voltage between DC external terminal and ground is AC 500 V for 1 minute. Insulation resistance is 10 MΩ or more at 500 VDC. The unit meets JIS B 3502 and IEC 61131-2 for impact resistance (147 m/s², 3 times in each axis).

Frequently asked questions

What are the key electrical ratings of the AJ65VBTS32-32DT?

It has 16 DC inputs (24 VDC, 5 mA) and 16 transistor outputs (sink type, 0.5 A per point, 4 A per common). Unit power supply is 20.4–26.4 VDC. Input ON voltage is 14 V or more, OFF below 6 V.
