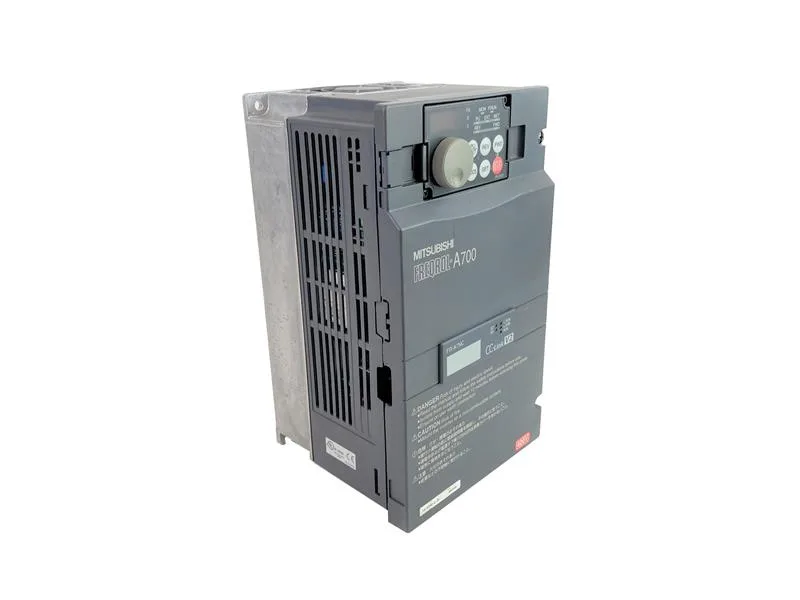

The FR-A740-2.2K is a 2.2 kW drive from the Mitsubishi A700 series, rated for three-phase 380-480 V input and 6 A output with an overload of 150% for 60 seconds or 200% for 3 seconds. Its enclosed IP20 frame uses forced air cooling and delivers a regenerative braking torque of 100% – enough for most deceleration profiles without needing an external resistor.

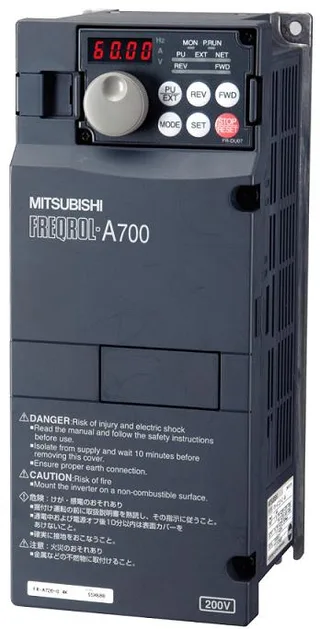

Mitsubishi FR-A740-2.2K A700 Series Drive, 2.2kW, 6A
MPNFR-A740-2.2K
End of Life
Mitsubishi Electric A700 series, FR-A740-2.2K, 2.2 kW, 6 A, three-phase 380-480 V, enclosed IP20.
$385.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | A700 |
| Voltage | *6 Three-phase 380 to 480V |
| Permissible AC voltage fluctuation | 323 to 528V 50Hz/60Hz |
| Power supply - rated input AC voltage (frequency) | Three-phase 380 to 480V 50Hz/60Hz |
| Current | 6 |
| Overload current rating | *5 150% 60s, 200% 3s (inverse-time characteristics) surrounding air temperature 50°C |
| Applicable motor capacity | 2.2 |
| Power supply capacity (kVA) *7 | 5.5 |
| Permissible frequency fluctuation | ±5% |
| Maximum value (permissible duty) | 2%ED*6 |
| Actual dimension standard packing box HXWXD | 48 x 40 x 55 |
| Model | FR-A740-2.2K |
| Condition | New |
| Cooling system | Forced air cooling |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| Protective structure *9 | Enclosed type (IP20) *9 |
| Output rated capacity | 4.6 |
| Regenerative braking torque | 100% torque |
Product details
MPN
FR-A740-2.2K
