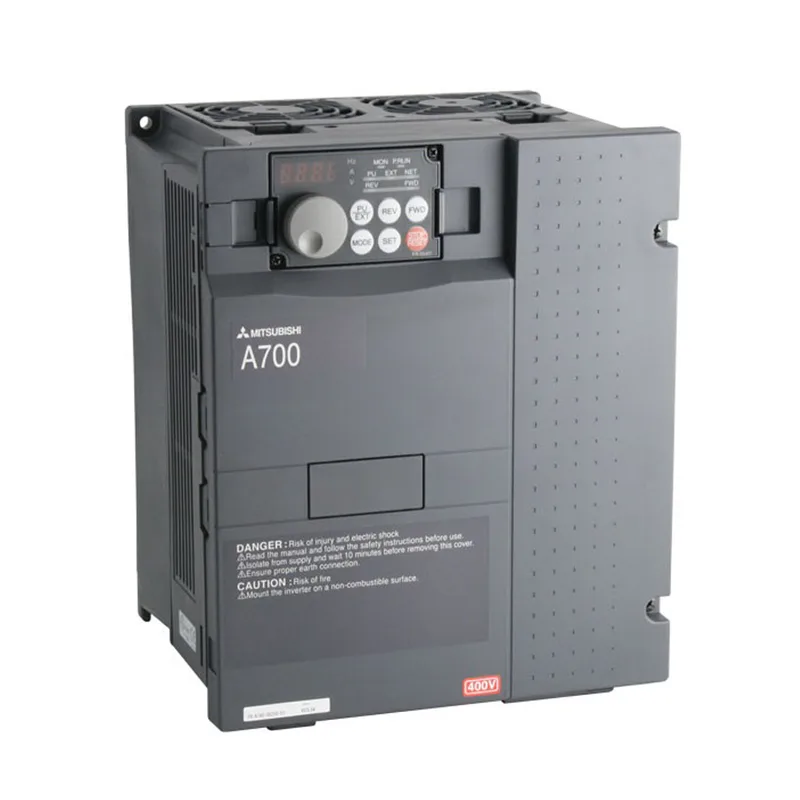

Mitsubishi A700 series drive, FR-A740-22K-CHT, 22 kW output, three-phase 380-480V input, 44 A rated current, IP20, forced air cooling.
| Parameter | Value |
|---|---|
| Model | FR-A740-22K-CHT |
| Series | A700 |
| Condition | New |
| Voltage | *6 Three-phase 380 to 480V |
| Cooling system | Forced air cooling |
| Current | 44 |
| Overload current rating | *5 150% 60s, 200% 3s (inverse-time characteristics) surrounding air temperature 50°C |
| Protective structure *9 | Enclosed type (IP20) *9 |
| OutputRated capacity | 32.8 |
| Regenerative braking torque | 20% torqueMaximum value/ permissible duty: continuous *6 |
| Applicable motor capacity | 22 |
| Power supply capacity (kVA) *7 | 41 |
| Permissible frequency fluctuation | ±5% |
| Permissible AC voltage fluctuation | 323 to 528V 50Hz/60Hz |
| Power SupplyRated input AC voltage (frequency) | Three-phase 380 to 480V 50Hz/60Hz |
The Mitsubishi FR-A740-22K-CHT is a A700 series inverter rated 22 kW, 44 A, on a three-phase 380 to 480V supply — the standard voltage class for European and Asian motor loads in that power band.
Overload rating is 150% for 60 s and 200% for 3 s (inverse-time), with ambient at 50°C. Regenerative braking torque is 20%, continuous duty — adequate for deceleration profiles on fan/pump loads, but not a vertical-load holding brake.
No. The FR-A820-18.5K is a 200-240V drive, while the FR-A740-22K-CHT is 380-480V. They are not electrically compatible without changing the power supply and motor circuit.
Rated current 44 A, applicable motor 22 kW, output capacity 32.8 kVA, with a 150% overload for 60 seconds.
