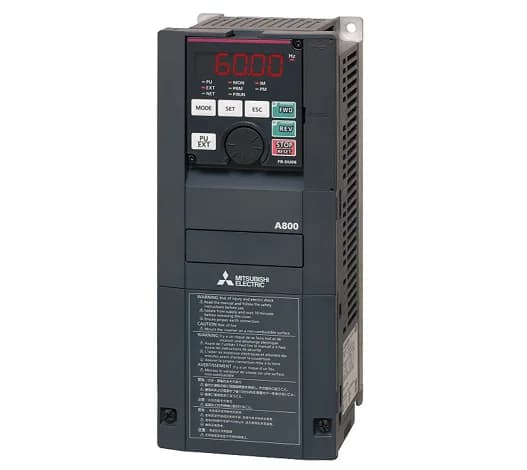

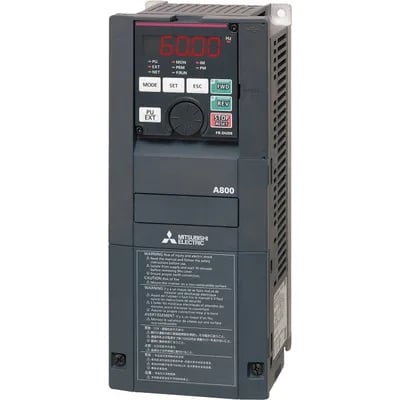

Mitsubishi Electric FREQROL-A 800 series, FR-A820-11K-1, 11 kW class VFD, 9.3 kg, current production.
| Parameter | Value |
|---|---|
| Display meter output terminal specification <fm type> maximum 2.4 | 1 point <CA type> maximum DC 20 mA: 1 point <voltage output (common)> maximum DC 10 V: 1 point |
| Control specification-Stall prevention operation level operable current level selectable, selectable or not available. SL rating | 0 to 120%, LD Rating: 0 to 150%, ND Rating: 0 to 220%, HD Rating: 0 to 280% |
| Operating specification-Frequency setting signal analog input terminal specification terminals 2 and 4 | 0 to 10 V, 0 to 5 V, 4 to 20 mA (0 to 20 mA) selectable, terminal 1: -10 to +10 V, -5 to +5 V selectable |
| Shipping weight | 9.3 Kg |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| Control specification-Starting torque SL rating | 120% 0.3 Hz, LD Rating: 150% 0.3 Hz, ND Rating: 200% 0.3 Hz, HD Rating: 250% 0.3 Hz (Real sensorless vector control, vector control) |
The FR-A820-11K-1: This drive delivers 250% starting torque at 0.3 Hz in HD (heavy duty) mode with real sensorless vector control. That means it can break away a loaded conveyor or crusher rotor without oversizing. In ND (normal duty) mode it still gives 200% at 0.3 Hz. The slope of the torque curve at stall is what counts here — the HD figure tells you how much grunt is available for high-inertia starts.
