The FR-A820-22K-1: Standard power terminals accept 200 V supply and motor cables. The RS-485 port is isolated; run the shield drain to PE bar at the panel entry. Confirm the motor nameplate matches the 22 kW ND current rating before first start.

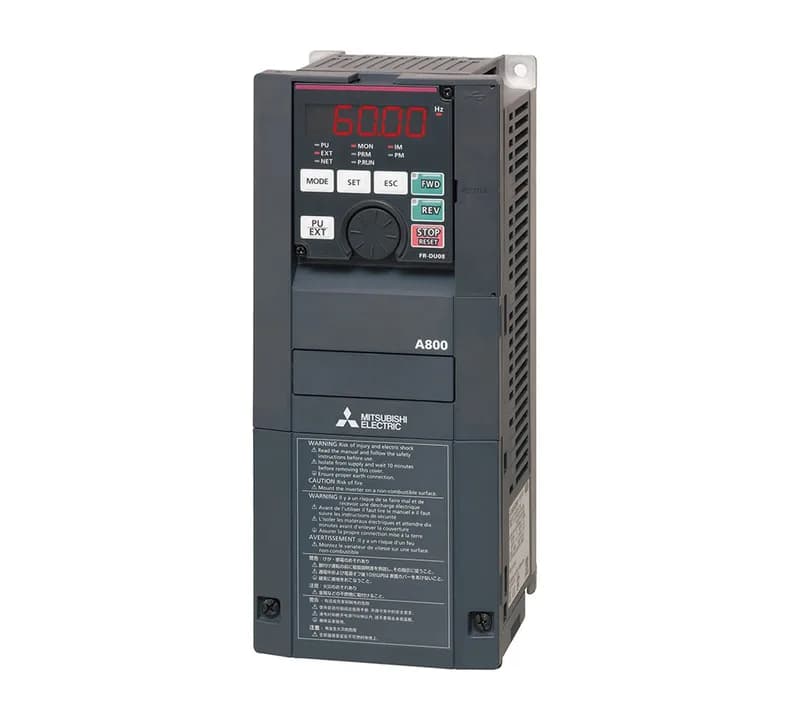

Mitsubishi FR-A820-22K-1 FR-A800 Inverter, 22 kW ND 200V
MPNFR-A820-22K-1
Mitsubishi Electric FR-A800 Series, FR-A820-22K-1 Inverter, 22 kW ND 200 V class, RS-485 communication.
$1,618.21Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | FR-A800 Inverter |
| Communication type | 1 = FM Type, RS-485 |
| Voltage class | 2 = 200 V class |
| Weight | 15 Kg |
| Shipping weight | 20 Kg |
| Symbol | 22K = Inverter ND rated capacity (kW) |
| Manufacturer | Mitsubishi Electric |
| Estimated lead time | Usually ships in 1 - 10 working days. |
| Structure, functionality | 0 = Standard model |
Product details
Frequently asked questions
What is its rated capacity and voltage class?
It is rated at 22 kW normal duty (ND) for a 200 V class three-phase supply. Matches a 22 kW induction motor.
What communication interface does it have?
Built-in RS-485 (FM Type) for Modbus RTU or Mitsubishi protocol. No additional option card needed.
How heavy is the drive?
Net weight is 15 kg; shipping weight 20 kg. A two-person lift or a hoist is recommended for installation.
MPN
FR-A820-22K-1
