The FR-D720-070-N7 is a Mitsubishi inverter drive rated for 7 Amp output, 2 HP, on a 200 V three-phase supply. It carries a specific firmware variant, meaning the control logic and parameter set are locked to a particular application profile — not a general-purpose unit you can freely re-task. If your BOM calls for this exact firmware, swapping in a standard D720 without the firmware match will change behavior.

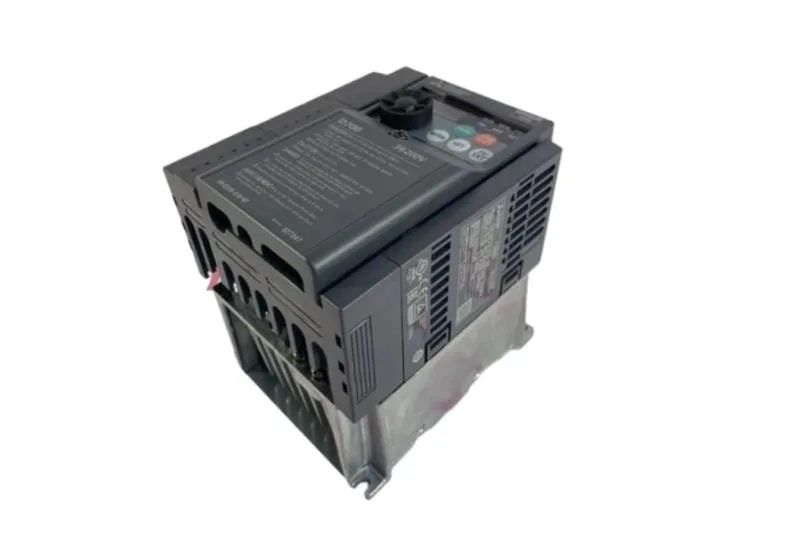

Mitsubishi FR-D720-070-N7 Drive, 7A, 2HP, 200V Three-Phase
MPNFR-D720-070-N7
Mitsubishi FR-D720-070-N7 inverter drive, 7 Amp, 2 HP, 200 V three-phase, with specific firmware.
$397.73Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Weight | 1.38 kgs |
| Parameter | Value |
|---|---|
| Design | With Specific Firmware |
| Rated current (HP) | 7 Amp, 2 HP |
| Voltage class (Phases) | Three-phase, 200 V |
Product details
Frequently asked questions
What does 'With Specific Firmware' mean for this drive?
It means the drive is configured with a particular firmware version tailored for a specific application. This is not a standard off-the-shelf unit; the firmware determines parameter access and control behavior. Ensure your application matches before ordering.
Will the FR-D720-070-N7 drop into a panel designed for an FR-A740-00015-NA?
No. The FR-A740-00015-NA is a higher-current, higher-voltage drive (200 V class but different frame and rating). The FR-D720-070-N7 is a 7 A, 2 HP unit; the FR-A740 series starts at a larger frame size. Mechanical mounting, wiring terminals, and control logic differ. They are not drop-in replacements.
MPN
FR-D720-070-N7
