Mitsubishi Electric FR-D720-070-NA — AC Drives (VFD)

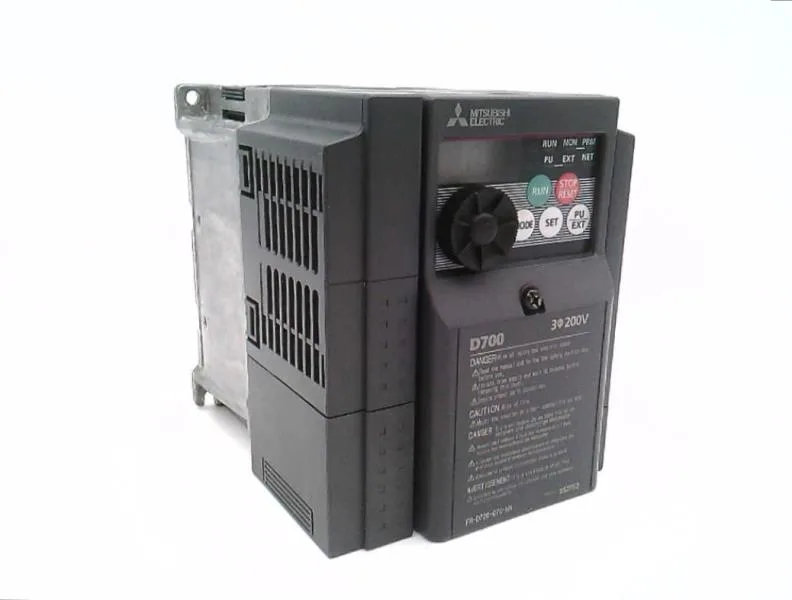

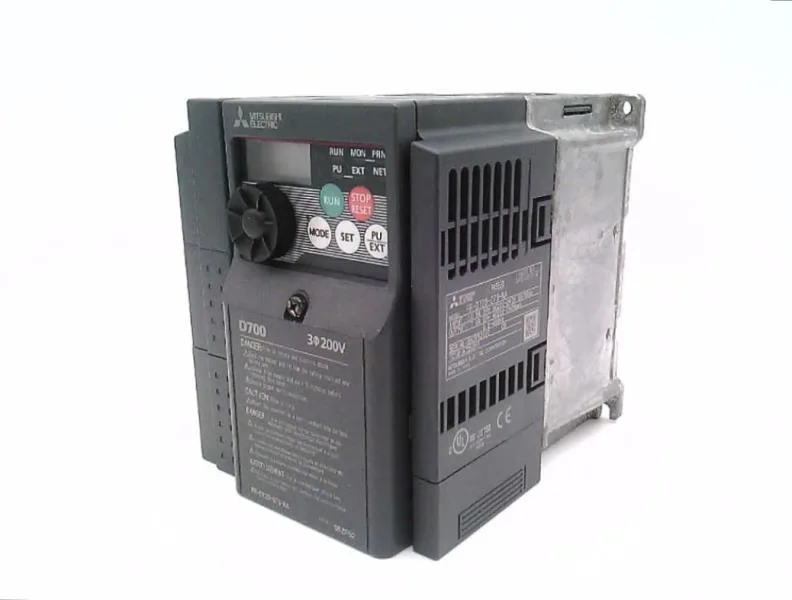

Mitsubishi FR-D720-070-NA Drive, 7A 2HP 200V 3-Phase

MPNFR-D720-070-NA

Mitsubishi FR-D700 Series, FR-D720-070-NA, 7 Amp 2 HP, 200 V three-phase, US/CA/MX Specification.

$487.21Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

FR-D720-070-NA — Mechanical
ParameterValue
Weight0.60 kgs
FR-D720-070-NA — Other specifications
ParameterValue
DesignUS/CA/MX Specification
Rated current (HP)7 Amp, 2 HP
Voltage class (Phases)Three-phase, 200 V

Product details

The Mitsubishi FR-D720-070-NA is a 7 Amp, 2 HP drive from the FR-D700 series, designed for three-phase 200 V applications and built to US/CA/MX Specification. That 7 A rating is the continuous output current — it matches a standard 2 HP 200 V motor on a pump, fan, or conveyor without oversizing.

The 200 V three-phase input and 7 A output define the motor frame: a 2 HP 200 V induction motor draws roughly 6.5 A full load, so this drive runs at about 93% of its rated capacity — comfortable headroom for continuous duty. The US/CA/MX design means the nameplate, manual, and agency markings (UL, CSA) are set for North American panels; no separate conversion needed for a 480 V plant.

Frequently asked questions

What is the design specification of the FR-D720-070-NA?

The FR-D720-070-NA is built to US/CA/MX Specification, meaning its nameplate, manual, and agency markings (UL, CSA) are set for North American panels.

Will the FR-D720-070-NA drop into a panel specified around the FR-A740-00015-NA?

No. The FR-A740-00015-NA is a larger, heavier drive (3.24 kg vs 0.60 kg) with a different mounting footprint and higher current rating. Rewiring and panel rework would be required.

MPN
FR-D720-070-NA
