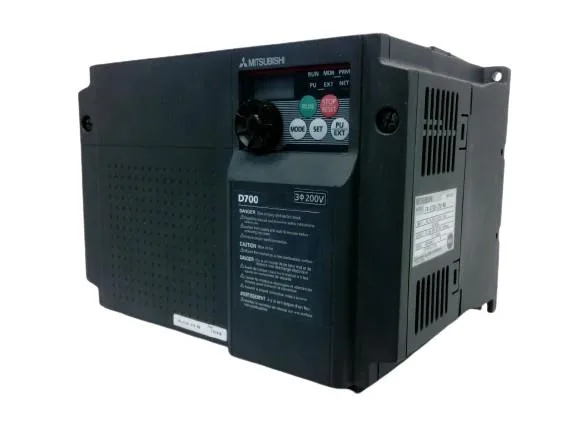

Mitsubishi Electric FR-D720-238-NA — AC Drives (VFD)

Mitsubishi FR-D720-238-NA Drive, 23.8 A, 7.5 HP, 200 V

MPNFR-D720-238-NA

Mitsubishi FR-D700 series, FR-D720-238-NA, 23.8 Amp, 7.5 HP, three-phase 200 V, US/CA/MX Specification.

$1,100.57Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

FR-D720-238-NA — Mechanical
ParameterValue
Weight3.18 kgs
FR-D720-238-NA — Other specifications
ParameterValue
DesignUS/CA/MX Specification
Rated current (HP)23.8 Amp, 7.5 HP
Voltage class (Phases)Three-phase, 200 V

Product details

The Mitsubishi FR-D720-238-NA is a FR-D700 series drive rated for 23.8 Amp and 7.5 HP on three-phase 200 V input, built to the US/CA/MX Specification. That 23.8 A continuous rating is the number that governs motor sizing — it tells you this drive can handle a 7.5 HP induction motor at 200 V without derating, which is what you'd expect for a standard-duty pump or fan on a 200 V plant bus.

The 23.8 A output at 200 V three-phase sets the motor full-load current limit. For a 7.5 HP motor at 200 V, that's right on the money — no headroom for overload cycling, so if your application has repetitive overloads or a service factor above 1.15, you'd want to step up to the next frame. The US/CA/MX designation means the drive is configured for North American line voltages and has the appropriate agency markings for the region.

Frequently asked questions

What is the rated current and horsepower of the FR-D720-238-NA?

It is rated for 23.8 Amp continuous output and 7.5 HP on three-phase 200 V input.

What is the design specification of the FR-D720-238-NA?

It is built to the US/CA/MX Specification, meaning it is configured for North American line voltages and agency approvals.

Will the FR-D720-238-NA drop into a panel specified for the FR-A740-00015-NA?

Not without rewiring. The FR-A740-00015-NA is a different series (A700 vs D700) with different frame size, terminal layout, and parameter set. The FR-D720-238-NA is an economy drive; the A740 is a high-performance model. Panel rework and re-commissioning would be required.

MPN
FR-D720-238-NA
