200 W drive for small motor loads

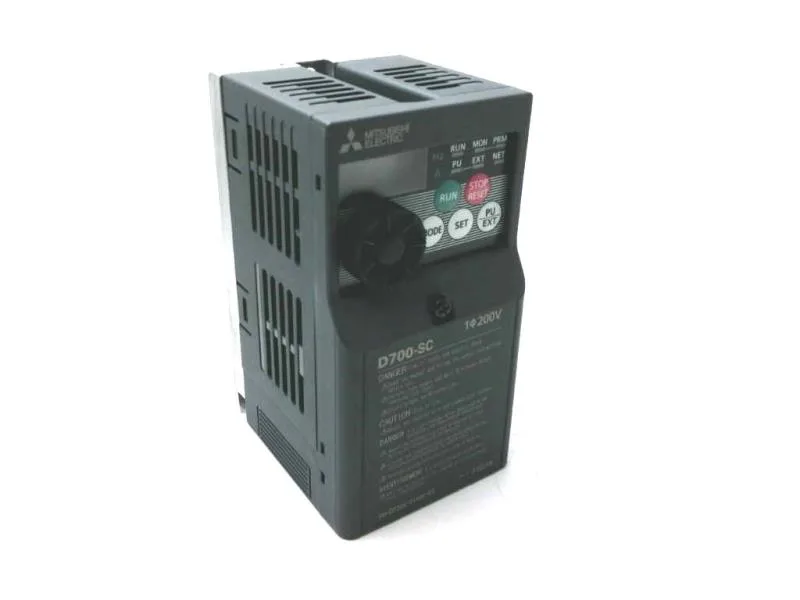

The Mitsubishi Electric FR-D720S-014SC-EC is a 200 W AC drive from the FR-D700 Series, designed for single-phase 200–240 V input and three-phase output up to 400 Hz. It delivers 1.4 A rated current — sized for fractional-horsepower motors on pumps, conveyors, or fans in light industrial applications.
MODBUS RTU and analog I/O for basic speed control
Built-in MODBUS RTU over RS485 lets the drive talk directly to a PLC or HMI without an extra communication card. The analog input accepts 0–5 V, 0–10 V, or 0–20 mA signals, and the analog output provides 0–10 VDC for speed feedback or retransmission. Five digital inputs at 24 VDC handle start/stop and multi-speed presets; one open-collector digital output and a relay change-over contact rated 250 VAC give basic status signalling.
Compact panel-mount footprint, IP20
Panel-mount chassis measuring 68 mm wide, 128 mm tall, and 80.5 mm deep — fits neatly into small enclosures. IP20 protection means it is suited for clean, dry control cabinets; no washdown exposure. Screw terminals for power and control wiring keep field connections straightforward for panel builders.
Carrier frequency and output range
Adjustable carrier frequency from 2 kHz to 14.5 kHz lets you trade off motor noise against drive losses — higher settings quiet the motor but derate continuous current. Output frequency spans 0–400 Hz, covering standard induction motors and higher-speed spindles.
