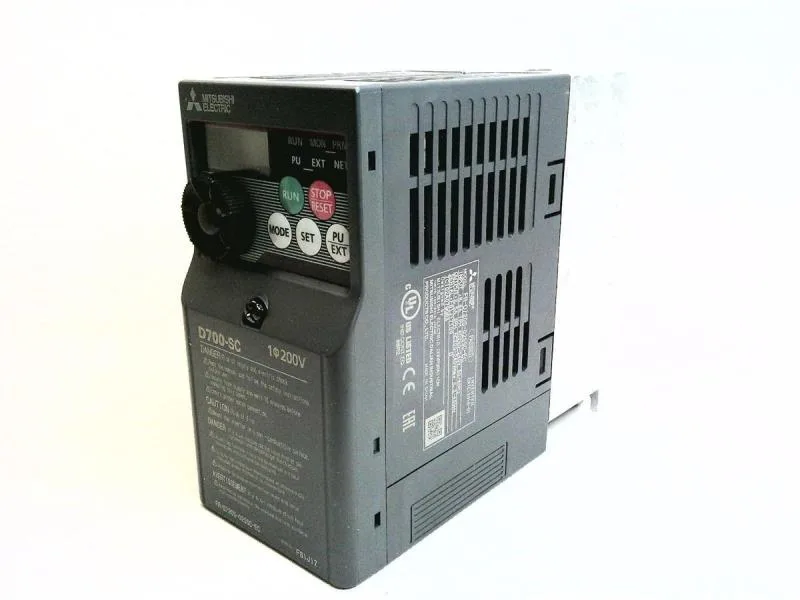

Mitsubishi Electric FR-D720S-025SC-EC

Mitsubishi FR-D720S-025SC-EC VFD, 0.4kW, 2.5A, 1-Phase Input

MPN FR-D720S-025SC-EC

Mitsubishi Electric FR-D720S-025SC-EC, FR-D700 Series, 400 W, 2.5 A, 1-phase 200-240 V input, 3-phase output, MODBUS RTU/RS485, Panel mount, IP20.

$127.83 – $234.30 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

FR-D720S-025SC-EC specifications
ParameterValue
SeriesFR-D700 Series
InterfaceMODBUS RTU;RS485
Digital output type1x Open-Collector Output
Current2.5 A
Power400 W
IP ratingIP20
MountingPanel Mount
Depth142.5 mm
Width68 mm
Height128 mm

Product details

The FR-D720S-025SC-EC is a compact single-phase-fed VFD from the FR-D700 series, rated 400 W continuous output at 2.5 A. It accepts 200-240 VAC single-phase input (50/60 Hz) and delivers three-phase output variable from 0 to 400 Hz. The panel-mount enclosure carries an IP20 protection rating.

Interface and I/O

Built-in MODBUS RTU over RS485 at up to 14.5 kHz carrier frequency. Five 24 VDC digital inputs, one open-collector digital output, one change-over relay output rated 250 VAC. Analog input accepts 0-5 V, 0-10 V, or 0-20 mA; analog output is 0-10 VDC. Screw-terminals for power and control wiring.

MPN
FR-D720S-025SC-EC
