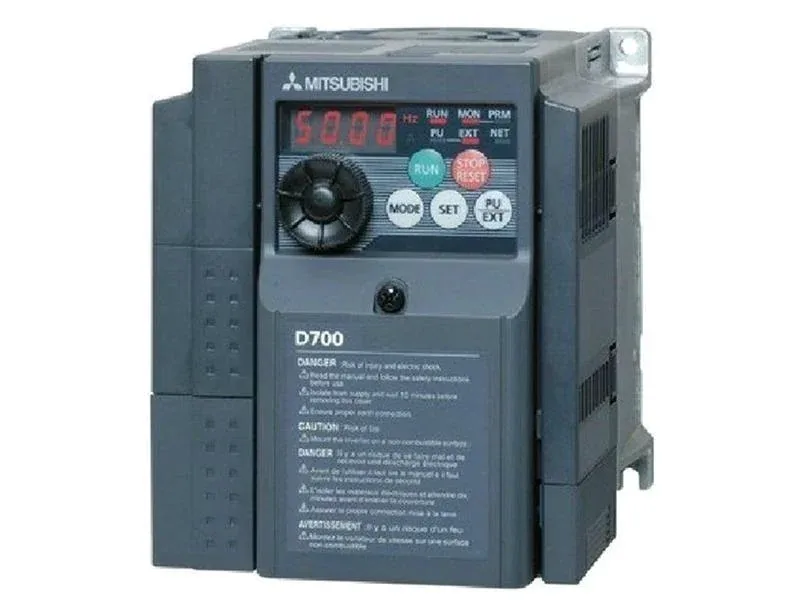

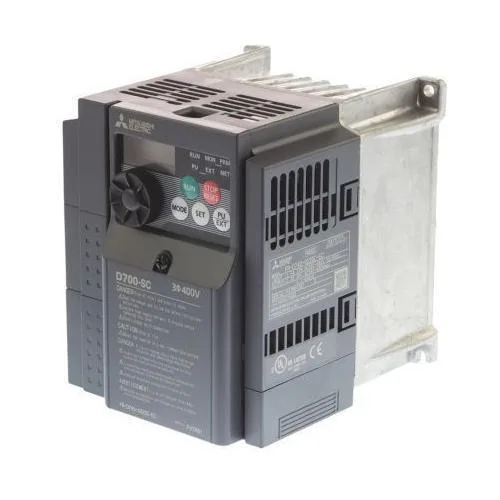

Mitsubishi Electric FR-D740-022-EC

Mitsubishi FR-D740-022-EC Inverter Drive, 0.75 kW, 3-Phase 3

MPN FR-D740-022-EC

Mitsubishi FR-D700 series, FR-D740-022-EC, 3-phase 380-480 V input, 0.75 kW output, 2.2 A, IP20, built-in PID and RS485 Modbus RTU.

$664.31 – $1,041.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

FR-D740-022-EC specifications
ParameterValue
SeriesFR-D700
Current2.2 A
Phases3-phase
Temp storage max65 °C
Temp storage min-20 °C
Temp operating max50 °C
Temp operating min-10 °C
Weight1.2 kg
Capacity0.75 kW
Applicationfans, General Purpose, pumps

Product details

The Mitsubishi FR-D740-022-EC is a 0.75 kW inverter from the FR-D700 series, designed for three-phase 380-480 VAC input and delivering 0.2-400 Hz output. It carries a 150% overload capacity for 60 seconds, so it handles short-duration load spikes on pumps, fans, or general-purpose conveyors without tripping. The built-in PID controller (V/f control mode) means you can close a loop on pressure or flow without an external controller — saves a panel slot and one SKU on the BOM. IP20 enclosure suits it for a clean, dry cabinet — not washdown or outdoor. Mount it inside a standard IP54 panel and it's fine. RS485 Modbus RTU is onboard, so it talks to a PLC or HMI without an option card; that's another slot saved.

The 0.75 kW rating at 380-480 V three-phase matches a standard 1 HP (0.75 kW) induction motor. The 2.2 A output current is the continuous rating at 400 V — size your motor FLA against that. The 150% overload for 1 minute covers starting current and momentary overloads, but sustained overloads above 100% will trip the thermal model. Acceleration and deceleration times are adjustable from 0.01 to 3600 seconds, so you can ramp a high-inertia fan up slowly without a braking resistor.

MPN
FR-D740-022-EC
