Mitsubishi Electric FR-D740-050-EC — AC Drive (VFD) 480V

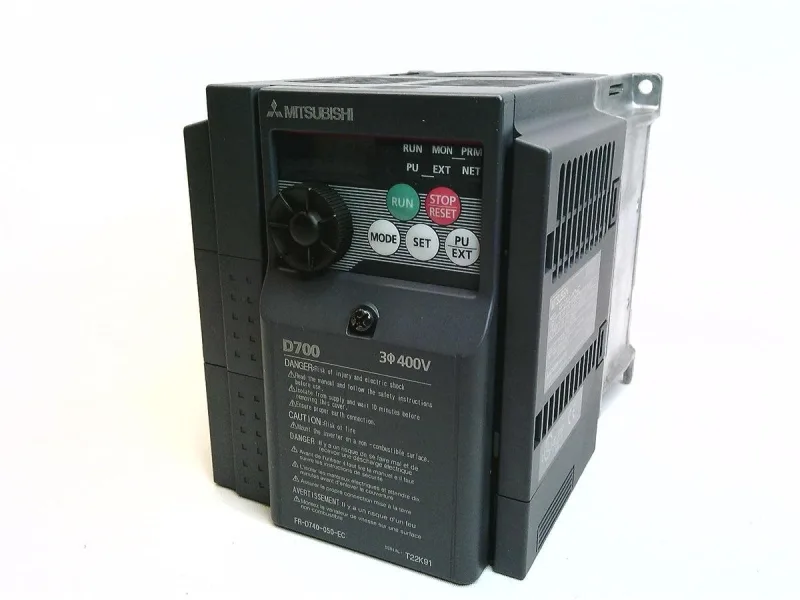

Mitsubishi FR-D740-050-EC Drive, 5A 3HP 400V Three-Phase

MPNFR-D740-050-EC

Mitsubishi FR-D740-050-EC, FR-D700 series, motor drive, 5 A, 3 HP, three-phase 400 V.

$1,006.63Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

FR-D740-050-EC — Specifications
ParameterValue
Weight0.91 kgs
Rated current (HP)5 Amp, 3 HP
Voltage class (Phases)Three-phase, 400 V

Product details

The FR-D740-050-EC is a Mitsubishi motor drive from the FR-D700 series, rated for 5 A continuous output current and 3 HP at three-phase 400 V. This is the entry-level frame in the D700 family, sized for small induction motors on standard European line voltage.

The 5 A rating is the continuous output current at 400 V three-phase — this determines the maximum motor full-load current the drive can supply without derating. For a 3 HP (2.2 kW) four-pole motor drawing roughly 4.5 A at full load, this drive leaves about 10% headroom, which is adequate for constant-torque applications like conveyors or fans. The three-phase 400 V input matches standard European industrial mains; single-phase input is not supported on this variant.

Frequently asked questions

What compliance documentation is available for the FR-D740-050-EC?

As a Mitsubishi drive, the FR-D740-050-EC is CE-marked for the European market and carries RoHS compliance. Specific documentation (declaration of conformity, manual) is provided with the unit or available from the manufacturer.

MPN
FR-D740-050-EC
