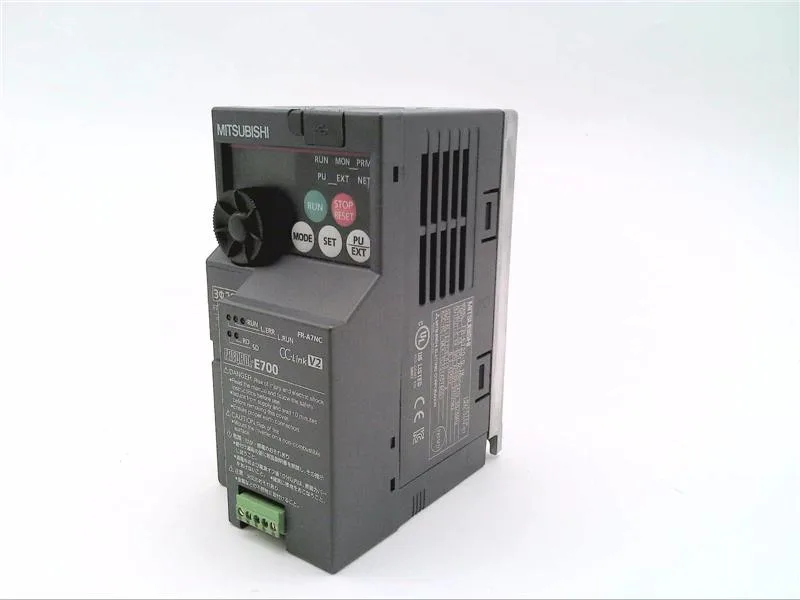

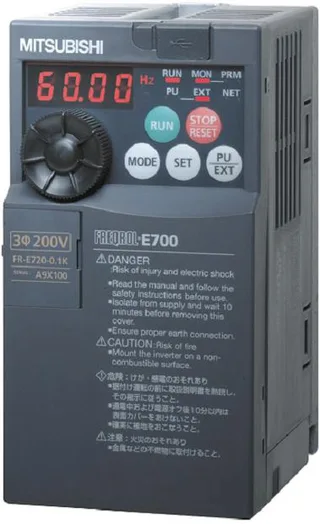

Mitsubishi Electric FR-E720-0.1K
MPNFR-E720-0.1K
Simple and Powerful Compact Inverter FREQROL-E700 Series Three-phase 200 V
$278.00 – $768.88Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Simple and Powerful Compact Inverter FREQROL-E700 Series Three-phase 200 V |
| Product series | FREQROL-E700 |
| Power supply- voltage class | Three-phase 200 V class |
| Power supply- AC voltage tolerance fluctuation | 170-264V 50Hz / 60Hz |
| Power supply- rated input AC voltage (frequency) | Three-phase 200 to 240 V 50 Hz / 60 Hz |
| Control specification- voltage (frequency characteristics) | Base frequency 0 to 400 Hz can be set arbitrarily, constant torque, reduced torque pattern selectable |
| Applicable motor capacity | 0.1 kW |
| Power supply- power supply capacity | 0.4 |
| Power supply- frequency tolerance fluctuation | ± 5% |
| Control specification- output frequency range | 0.2 to 400 Hz |
| Control specification- frequency accuracy- analog input | Within ± 0.5% of maximum output frequency (25 ° C ± 10 ° C) |
| Control specification- frequency accuracy- digital input | Within 0.01% of the set output frequency |
All specifications+26 ▾
| Parameter | Value |
|---|---|
| Control specification- frequency setting resolution- analog input | 0.06 Hz / 60 Hz (terminal 2, 4: 0 to 10 V / 10 bit), 0.12 Hz / 60 Hz (terminal 2, 4: 0 to 5 V / 9 bit), 0.06 Hz / 60 Hz (terminal 4: 4 to 20 mA / 10 bit) |
| Control specification- frequency setting resolution- digital input | 0.01 Hz |
| Protocol | RS-485, CC-Link, LONWorks, DeviceNet, PROFIBUS-DPV0, Modbus RTU |
| Environment- ambient temperature | -10 ° C to + 50 ° C (without freezing) (-10 ° C to + 40 ° C in the case of fully closed structural specification) |
| Environment- ambient humidity | 90% RH or less (without condensation) |
| Environment- elevation and vibration | Less than 1000m above sea level 5.9m / s 2 or less |
| Shipping weight | 2 Kg |
| Output | Regenerative braking torque - Maximum value / Permissible usage rate : - |
| Manufacturer | Mitsubishi Electric |
| Cooling method | Self-cooling |
| Rough mass | 0.5 |
| Abnormal content | Display the contents of abnormality when the protection function is operating, and store 8 times of the contents of abnormality |
| Estimated lead time | Usually ships in 1-10 working days. |
| Environment- atmosphere | Indoor (corrosion gas, flammable gas, oil mist, no dust) |
| Operation specification | Output signal Display terminal output terminal selectable signal : Output frequency, motor current (steady), output voltage, frequency setting value, motor torque, converter output voltage, regenerative brake usage rate, electronic thermal load factor, output current peak value, converter output voltage peak value, reference voltage output, motor load Select from rate, PID target value, PID measured value, output power. Pulse train output |
| Protection and alarm function | Over current during acceleration, Over current during constant speed, Over current during deceleration, Over voltage during acceleration, Over voltage during constant speed, Over voltage during deceleration, Inverter protection thermal operation, Motor protection thermal operation, Fin overheating, Input phase loss, Start-up Output side ground fault overcurrent, output short circuit, output phase failure, external thermal operation, option error, parameter error, PU error, retry count over, CPU error, brake transistor error, rush resistance overheat, communication error, analog input error , USB communication error, brake sequence error 4 to 7 Fan failure, over current stall prevention, over voltage stall prevention, PU stop, parameter write error, regenerative brake pre alarm, electronic thermal pre alarm, maintenance output, under voltage |
| Protective structure (JEM 1030) | Closed type (IP20), the fully closed series is IP40. |
| Environment- storage temperature | -20 ° C to + 65 ° C |
| Control specification- DC braking | Operating frequency (0 to 120 Hz), operating time (0 to 10 s), operating voltage (0 to 30%) variable |
| Control specification- torque boost | Manual torque boost |
| Control specification- control method | Soft-PWM control / high carrier frequency PWM control (V / F control, advanced magnetic flux vector control, general-purpose magnetic flux vector control, optimal excitation control can be selected) |
| Control specification- starting torque | 200% or more (at 0.5 Hz) ... When advanced flux vector control is set (3.7 K or less) |
| Display control panel driving condition | Output frequency, motor current (steady), output voltage, frequency setting value, integrated energizing time, actual operation time, motor torque, converter output voltage, regenerative brake duty factor, electronic thermal load factor, output current peak value, converter output voltage peak Motor load factor, PID target value, PID measured value, PID deviation, inverter input / output terminal monitor, input / output terminal option monitor, output power, integrated power, motor thermal load factor, inverter thermal load factor selectable |
| Control specification- torque limit level | 0 to 200% |
| Control specification- stall prevention operation level | Operating current level can be set (0 to 200% variable), can be selected |
| Control specification- acceleration (deceleration time setting) | 0.01 to 360s, 0.1 to 3600s (acceleration / deceleration can be set individually), linear or S-curve acceleration / deceleration mode selectable |
MPN
FR-E720-0.1K
