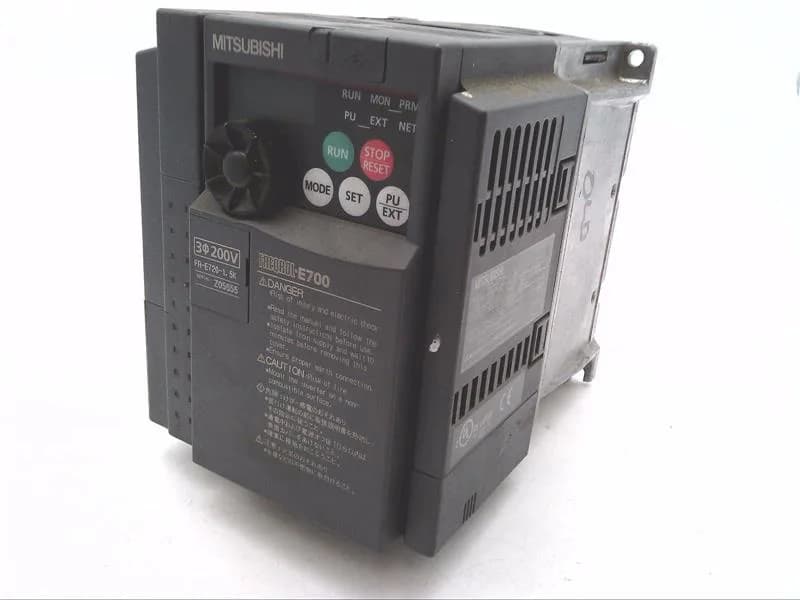

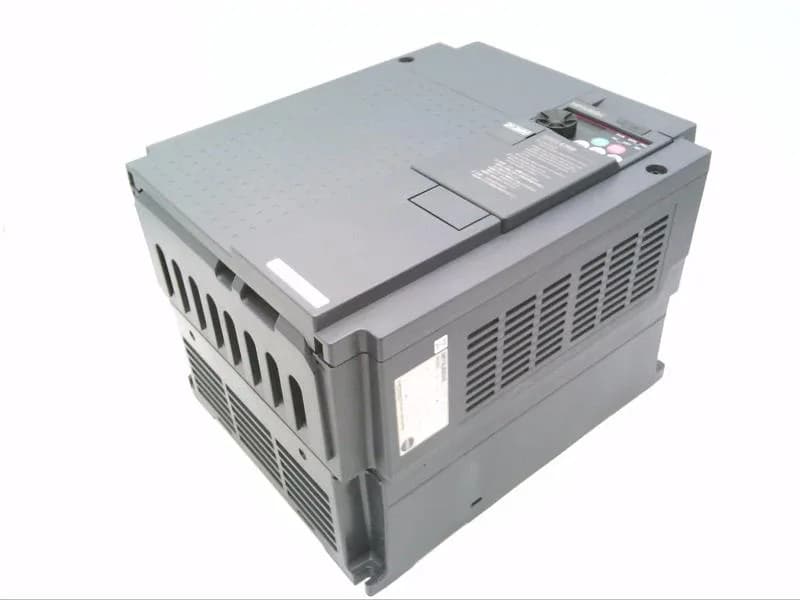

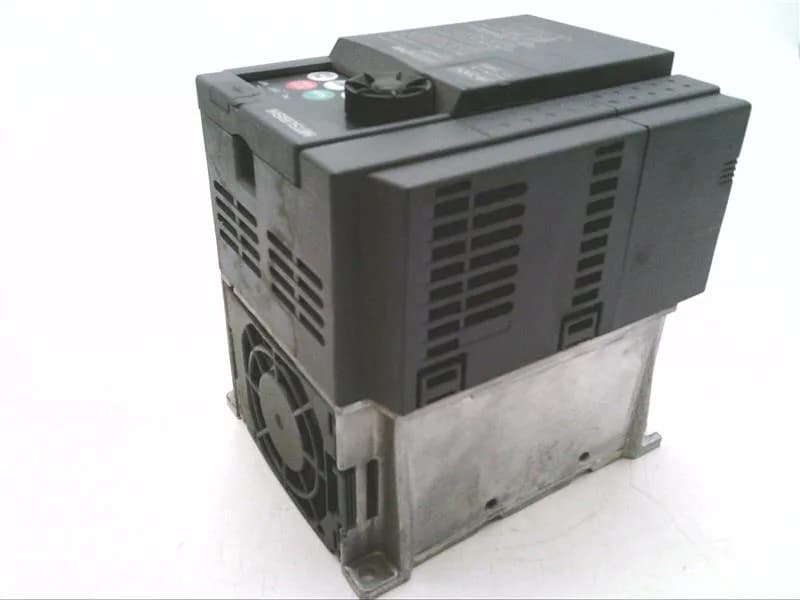

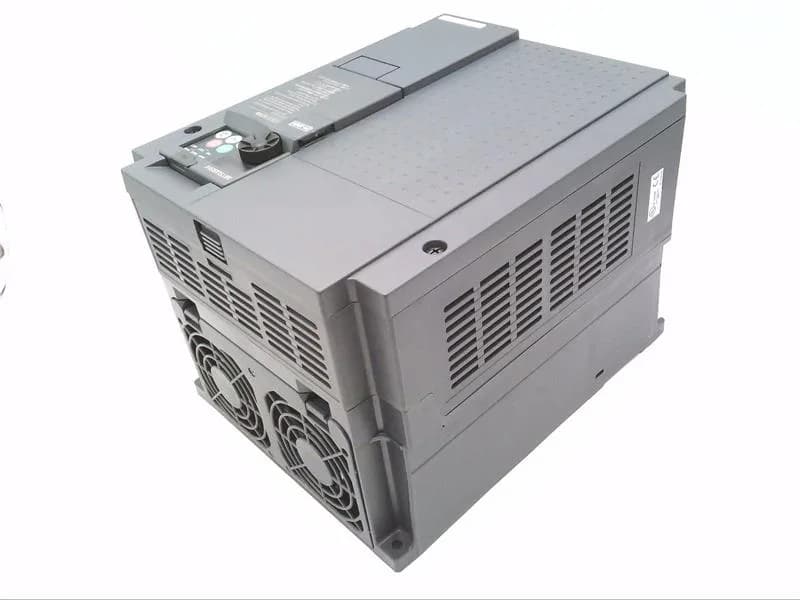

Mitsubishi FR-E720-15K FREQROL-E700 Inverter, 1.5 kW, 240 V

Name: FR-E720-15K
Brand: Mitsubishi Electric
SKU: FR-E720-15K
Availability: LimitedAvailability
Author: Rolling-Mill Rosa

MPNFR-E720-15K

Mitsubishi Electric FREQROL-E700 series, FR-E720-15K three-phase 200V inverter, 1.5 kW, 3.2 kVA, IP20.

$389.00Ref. price · indicative, final on quote

Request quote

Mitsubishi Electric FR-E720-15K datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

FR-E720-15K key specifications
Parameter	Value
Series	FREQROL-E700
Voltage AC	240 V
Protocols	RS-485, CC-Link, LONWorks, DeviceNet, PROFIBUS-DPV0, Modbus RTU
Analog_input_terminal_specs	Terminal 2: 0 to 10 V, 0 to 5 V selectable Terminal 4: 0 to 10 V, 0 to 5 V, 4 to 20 mA selectable
Applicable motor capacity	1.5 kW
Input_terminal_selectable_signal	Multistage speed selection, remote setting, contact selection, second function selection, terminal 4 input selection, JOG operation selection, PID control valid terminal, brake release complete signal, external thermal input, PU-external operation switching, V / F switching, Selection from output stop, start self-hold selection, forward rotation, reverse rotation command, inverter reset, PU-NET operation switching, external-NET operation switching, command authority switching, inverter operation permission signal, PU operation external interlock
Output_terminal_selectable_signal	During inverter operation, frequency arrival, overload alarm, output frequency detection, regenerative brake pre-alarm, electronic thermal pre-alarm, inverter operation preparation completed, output current detection, zero current detection, PID lower limit limit, PID upper limit limit, PID forward rotation reverse Output, brake release request, fan failure, FIN overheat pre-alarm, power failure decelerating, PID control in operation, retrying, life alarm, average current value monitor, remote output, light failure output, abnormal output, abnormal output 3, maintenance timer Select from alarm
Output_terminal_relay_output_points	1point
Output_terminals_for_indicator_count	1
Display_terminal_output_terminal_specs	FM: up to 2.4 kHz
Input_signalnumber_of_terminals_contact_input	7 points
Display_terminal_output_terminal_selectable_signal	Output frequency, motor current (steady), output voltage, frequency setting value, motor torque, converter output voltage, regenerative brake usage rate, electronic thermal load factor, output current peak value, converter output voltage peak value, reference voltage output, motor load Select from rate, PID target value, PID measured value, output power. Pulse train output

All specifications

FR-E720-15K additional specifications
Parameter	Value
Output_terminal_selectable_signal_when_option_is_installed	Output the same signal as the main unit
Operating temperature	-10 ° C to + 50 ° C (without freezing) (-10 ° C to + 40 ° C in the case of fully closed structural specification)
Vibration	Less than 1000m above sea level 5.9m / s 2 or less
Humidity max	90
Power	4.5
Frequency	5
Product type	Simple and Powerful Compact Inverter FREQROL-E700 Series Three-phase 200 V
Start_signal	Forward / reverse individual, start signal self-holding input (3 wire input) selectable
Storage_temp	-20 ° C to + 65 ° C
Digital_input	Input by operation panel, parameter unit
Output signal	2 points
Rough mass	1.4
Cooling_method	Forced wind cold
Cooling_system	Forced air cooling
Abnormal_content	Display the contents of abnormality when the protection function is operating, and store 8 times of the contents of abnormality
Supply voltage	240
Display_resolution	0.06 Hz / 60 Hz (terminal 2, 4: 0 to 10 V / 10 bit), 0.12 Hz / 60 Hz (terminal 2, 4: 0 to 5 V / 9 bit), 0.06 Hz / 60 Hz (terminal 4: 4 to 20 mA / 10 bit)
Switching current	8
Environment_atmosphere	Indoor (corrosion gas, flammable gas, oil mist, no dust)
Output rated capacity	3.2
Protection_and_alarm_function	Over current during acceleration, Over current during constant speed, Over current during deceleration, Over voltage during acceleration, Over voltage during constant speed, Over voltage during deceleration, Inverter protection thermal operation, Motor protection thermal operation, Fin overheating, Input phase loss, Start-up Output side ground fault overcurrent, output short circuit, output phase failure, external thermal operation, option error, parameter error, PU error, retry count over, CPU error, brake transistor error, rush resistance overheat, communication error, analog input error, USB communication error, brake sequence error 4 to 7 Fan failure, over current stall prevention, over voltage stall prevention, PU stop, parameter write error, regenerative brake pre alarm, electronic thermal pre alarm, maintenance output, under voltage
Protective_structure_jem_1030	IP20
Control_specification_dc_braking	Operating frequency (0 to 120 Hz), operating time (0 to 10 s), operating voltage (0 to 30%) variable
Control_specification_digital_input	Within 0.01% of the set output frequency
Control_specification_control_method	Soft-PWM control / high carrier frequency PWM control (V / F control, advanced magnetic flux vector control, general-purpose magnetic flux vector control, optimal excitation control can be selected)
Displaycontrol_paneldriving_condition	Output frequency, motor current (steady), output voltage, frequency setting value, integrated energizing time, actual operation time, motor torque, converter output voltage, regenerative brake duty factor, electronic thermal load factor, output current peak value, converter output voltage peak Motor load factor, PID target value, PID measured value, PID deviation, inverter input / output terminal monitor, input / output terminal option monitor, output power, integrated power, motor thermal load factor, inverter thermal load factor selectable
Operation_specification_driving_function	Upper / lower limit frequency setting, frequency jump operation, external thermal input selection, instantaneous power failure restart operation, forward / reverse rotation prevention, remote setting, brake sequence, second function, multistage speed operation, stop control, droop control, regeneration avoidance, Slip compensation, operation mode selection, off-line auto tuning function, PID control, computer link operation (RS-485)
Control_specification_stall_prevention_operation_level	Operating current level can be set (0 to 200% variable), can be selected

Product details

Drive for a 1.5 kW motor on a 200 V line

The Mitsubishi FR-E720-15K is a compact FREQROL-E700 inverter rated for a 1.5 kW three-phase induction motor at 240 V. Output capacity is 3.2 kVA, with a forced-air cooling system that keeps it running in ambient conditions down to -10 °C and up to 50 °C (40 °C in a fully enclosed panel). The enclosure is IP20, so it belongs inside a control cabinet away from dust and liquid ingress. Analog inputs accept 0–10 V, 0–5 V, or 4–20 mA, selectable per terminal. For network integration, the drive carries RS-485, CC-Link, LONWorks, DeviceNet, PROFIBUS-DPV0, and Modbus RTU—covering most industrial fieldbuses without an option card. The control method supports Soft-PWM and high carrier frequency PWM with V/F control, advanced magnetic flux vector, general-purpose magnetic flux vector, and optimal excitation control. That gives flexibility for fan/pump loads as well as constant-torque applications where slip compensation and droop control are needed.

The FR-E720-15K is a mature product in Mitsubishi's FREQROL-E700 line. It is still in regular production, so there is no last-time-buy pressure. We source this inverter to order for BOM lines, with lead times quoted against your specific quantity request.
