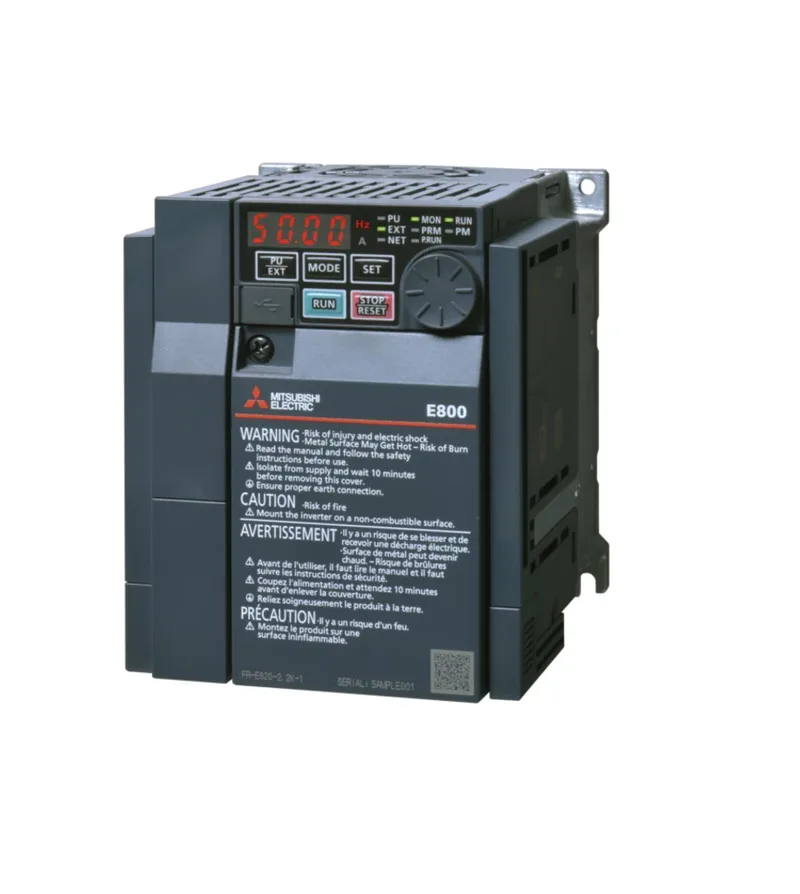

Mitsubishi Electric FR-E820S-0080-4-60 — AC Drives (VFD)

Mitsubishi FR-E820S-0080-4-60 Single-Phase Inverter, Modbus

MPNFR-E820S-0080-4-60

Mitsubishi Electric FR-E800 RS485 inverter, single-phase input, built-in Modbus RTU and PLC, 2K program memory, 4-digit LED display.

$400.00Ref. price · indicative, final on quote
Mitsubishi Electric FR-E820S-0080-4-60 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

FR-E820S-0080-4-60 key specifications
ParameterValue
TypeFR-E800 RS485 INVERTER
SeriesFR-E800 SERIES
MOTOR TYPEINDUCTION MOTOR, PM MOTOR
CURRENT TYPEAC
DISPLAY TYPE4-DIGIT LED
IO TYPE OF TERMINAL BLOCKSPRING CLAMP
MAXIMUM RATED VOLTAGE240
MINIMUM RATED VOLTAGE200
MAX. PERMISSIBLE VOLTAGE264
MIN. PERMISSIBLE VOLTAGE170
LEAKAGE CURRENT1,2
RATED OUTPUT CURRENT ND8

All specifications

FR-E820S-0080-4-60 additional specifications
ParameterValue
POWER LOSS ND80
RATED MOTOR CAPACITY ND1,5
FREQUENCY RANGE0,2–590
Phases1
RS-4851
INTEGRATED EMC FILTERNO
WIDTH12,5 CM
HEIGHT22 CM
DEPTH161
WEIGHT1,4
SHIPPING WEIGHT2 Kg
EXTERNAL MATERIAL GROUPStandard Material
CECOMPLIANT
UL (CUL)COMPLIANT
ROHS COMPLIANCECOMPLIANT
EACCOMPLIANT
USB1 (MINI B)
LENGTH21 CM
VOLUME5.775 CDM
DISPLAYBUILT-IN
EXPANDABLEYES
PREDECESSOR234799 FR-E720S-080SC-EC
PLC FUNCTIONYES
ETHERNET PORTNO
LOGISTIC CLASSA
PROGRAM MEMORY2K
SELLING STATUSStandard
BUILT-IN NETWORKMODBUS RTU
IP ratingIP20
CLASS DESCRIPTIONFA-Inverter: Inverter
GLOBAL ORDER CODEE820S0080460
PRODUCT HIERARCHYIAK24801
REGENERATIVE (4Q)NO
ESTIMATED LEAD TIME1-10 WORKING DAYS
EUROPEAN ORDER CODE504750
INTEGRATED DC CHOKENO
PROGRAM MEMORY UNITSTEPS
BRAKE CHOPPER ED (%)100
SAFE TORQUE OFFYES
DIGITAL OUTPUTS (RELAY)1
INTEGRATED DIGITAL INPUTS7
INTEGRATED ANALOGUE INPUTS2
DANGEROUS GOODS REGULATIONSNO
INTEGRATED ANALOGUE OUTPUTS1
DIGITAL OUTPUTS (TRANSISTOR)2

Product details

Single-phase input, Modbus RTU onboard

The FR-E820S-0080-4-60: Rated for single-phase AC input, this drive handles induction and permanent-magnet motors without needing a separate communication card — Modbus RTU is built in. The 4-digit LED display shows status or parameters directly; a built-in PLC function with 2K step program memory lets you handle basic machine logic locally. It's expandable for option cards if you need extra I/O or feedback. Protection class IP20 means it's suited for clean indoor panel mounting.

Compliance stack: CE, EAC, UL/CUL, RoHS

CE, EAC, and UL/CUL compliance are all on file, along with RoHS. That covers EU, EAEU, and North American panel certifications for most standard installations.

Frequently asked questions

What compliance documentation does this inverter carry?

CE, EAC, UL/CUL, and RoHS compliance are all documented. This covers EU, EAEU, and North American regulatory requirements for standard panel installations.

What is the predecessor to this model?

The predecessor is the FR-E720S-080SC-EC. That is an earlier generation; the FR-E820S-0080-4-60 is the current model in the FR-E800 series.
