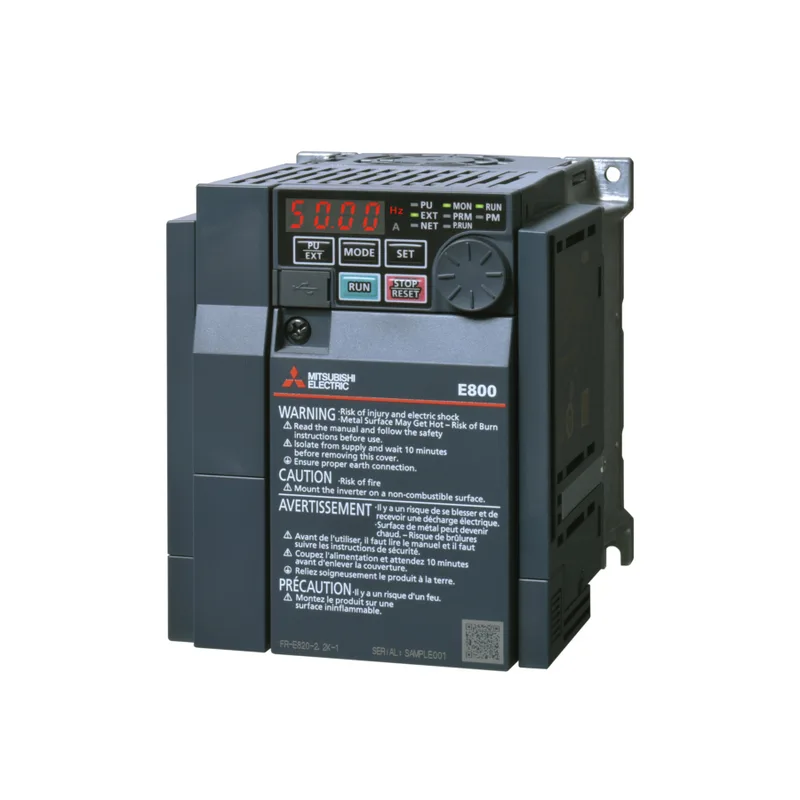

Mitsubishi Electric FR-E840-0060-4-60 — AC Drive (VFD) 480V

Mitsubishi FR-E840-0060-4-60, 6.0A ND 400V class

MPNFR-E840-0060-4-60

Mitsubishi Electric FR-E800 series inverter, FR-E840-0060-4-60, 400 V class, ND rated current 6.0 A, three-phase input, with circuit board coating for harsh environments.

$419.00 – $851.56Ref. price · indicative, final on quote
Mitsubishi Electric FR-E840-0060-4-60 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

FR-E840-0060-4-60 — Specifications
ParameterValue
4400 V class
-4Monitoring/protocol specifications : Voltage (terminal AM)Rated frequency (initial setting) : 50 HzInput signal (initial status) : Source logicSafety stop signal : Source logic (fixed)
-60Circuit board coating : With coatingPlated conductor : Without plated conductors
0060Inverter ND rated current (A)
NoneThree-phase input
Weight1.8 Kg
Product typeInverter FR-E800
Plated conductorWithout plated conductors
Safety stop signalSource logic (fixed)
Circuit board coatingWith coating
Input signal (initial status)Source logic
Rated frequency (initial setting)50 Hz
Monitoring (protocol specifications)Voltage (terminal AM)

Product details

Integrator’s field note

The FR-E840-0060-4-60: The board comes with coating as standard, so it’ll handle a damp panel or a dusty enclosure without extra conformal coating. Saves a step when you’re fitting it on site. Input logic defaults to source (PNP), and the safety stop signal is also configured for source. The analog output on terminal AM is voltage-type.

Board coating is included – not an option. For a maintenance swap in a washdown area or a cabinet with condensation history, that’s a real plus. No need to order a coated variant separately.

MPN
FR-E840-0060-4-60
