The FR-F840-00023-2-60: Self-cooled means no fan to fail, but you do need to respect the natural convection clearance — IP21 is not sealed. Mount it vertically with enough free space above and below for airflow. Input voltage tolerance is ±5% frequency, 323–550 V AC, so it handles typical utility swings. For wiring, use standard three-phase cable sized for the output current (not listed, but the frame implies a moderate rating — check the drive's rated current on the nameplate when you receive it).

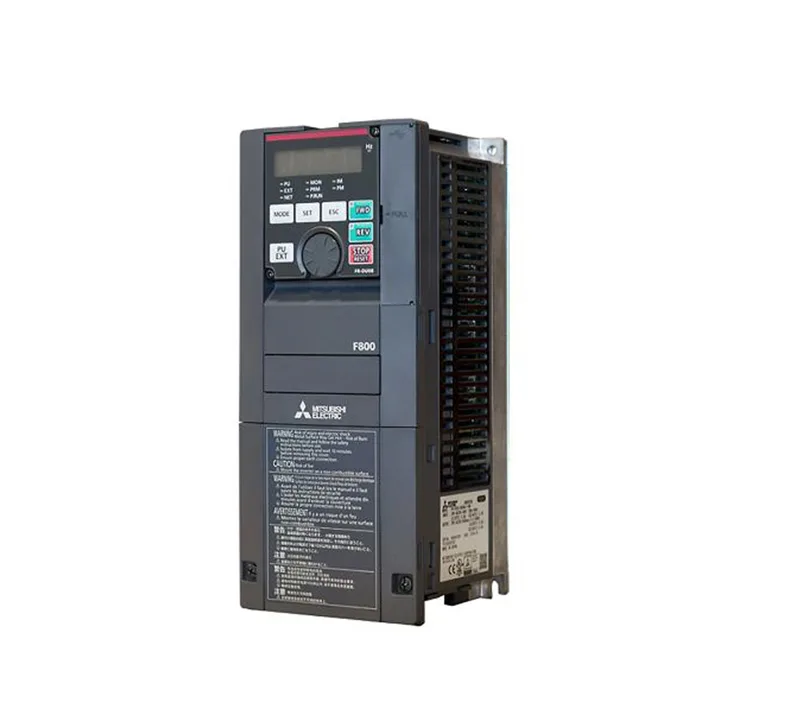

Mitsubishi FR-F840-00023-2-60 F800 Inverter, 400V, 2.5kg
MPNFR-F840-00023-2-60
Mitsubishi Electric F800 Series High Performance Inverter, FR-F840-00023-2-60, 400 V class, self-cooled, IP21, 2.5 kg.
$401.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| -60 | With circuit board coatingWithout Plated conductor |
| Type | -2 = CA |
| Weight | 2.5 Kg |
| Product type | F800 Series High Performance Inverter |
| Voltage class | 4 = 400 V class |
| Cooling system | Self-cooling |
| Structure, functionality | 0 = Standard model |
| Protective structure (IEC 60529) | Enclose type (IP21) |
| Rated input AC voltage (frequency) | Three-phase 380 to 500 V 50 Hz/60 Hz |
| Permissible frequency fluctuation | ±5% |
| Permissible AC voltage fluctuation | 323 to 550 V 50 Hz/60 Hz |
| Power supplyRated input AC voltage (frequency) | Three-phase 380 to 500 V 50 Hz/60 HzPermissible AC voltage fluctuation : 323 to 550 V 50 Hz/60 HzPermissible frequency fluctuation : ±5% |
Product details
Frequently asked questions
What does the '-60' suffix mean on this order code?
It indicates the drive includes circuit board coating and does not have plated conductor connections.
What is the type code '-2 = CA'?
The type -2 = CA designates a standard model without special functional options.
