AC input accepts three-phase 380 to 500 V at 50 or 60 Hz, with permissible fluctuation down to 323 V and up to 550 V. Frequency tolerance is ±5 %. That range covers most industrial mains and generator-backed supplies without extra line conditioning. The IP21 enclosure means no drip protection — mount above any water sources and avoid condensation-prone locations.

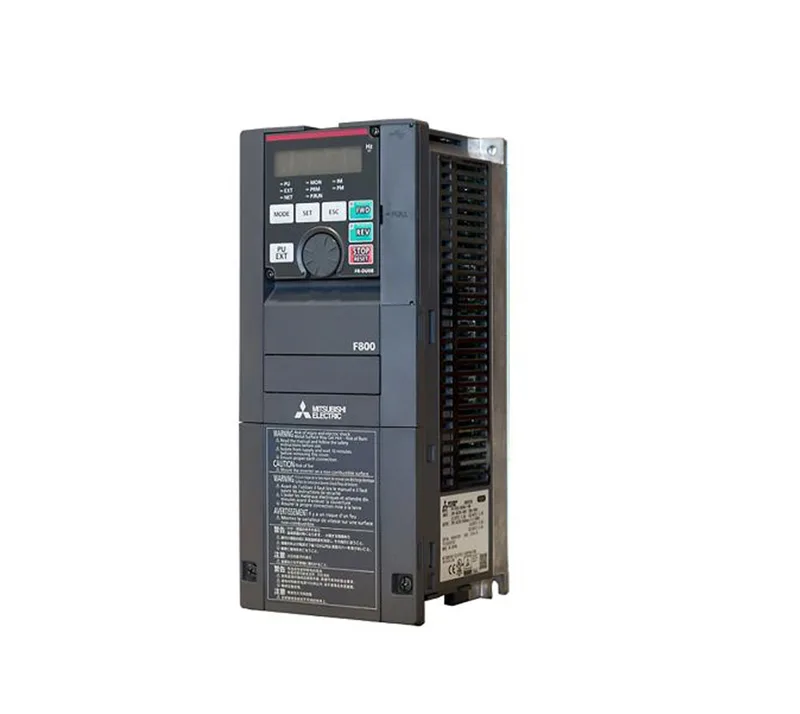

FR-F840-00083-2-60 Mitsubishi F800 Inverter, 400V, IP21, Coa
MPNFR-F840-00083-2-60
Mitsubishi Electric F800 Series High Performance Inverter, 400 V class, 3 kg, IP21, forced air cooling, circuit board coating without plated conductor.
$530.00 – $931.20Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| -60 | With circuit board coatingWithout Plated conductor |
| Type | -2 = CA |
| Weight | 3 Kg |
| Product type | F800 Series High Performance Inverter |
| Voltage class | 4 = 400 V class |
| Cooling system | Forced air cooling |
| Structure, functionality | 0 = Standard model |
| Protective structure (IEC 60529) | Enclose type (IP21) |
| Rated input AC voltage (frequency) | Three-phase 380 to 500 V 50 Hz/60 Hz |
| Permissible frequency fluctuation | ±5% |
| Permissible AC voltage fluctuation | 323 to 550 V 50 Hz/60 Hz |
| Power supplyRated input AC voltage (frequency) | Three-phase 380 to 500 V 50 Hz/60 HzPermissible AC voltage fluctuation : 323 to 550 V 50 Hz/60 HzPermissible frequency fluctuation : ±5% |
Product details
Frequently asked questions
What does the -60 suffix mean on this inverter?
It indicates circuit board coating without plated conductors — a factory conformal coating for protection against humidity and dust, without the full plated-through-hole specification.
What type is this inverter (the -2 = CA designation)?
Type -2 = CA is the standard model type within the F800 series, as opposed to models with additional functionality or different I/O options.
What are the input voltage and frequency requirements?
Three-phase 380 to 500 V AC, 50/60 Hz, with permissible fluctuation of 323 to 550 V and ±5 % frequency tolerance.
MPN
FR-F840-00083-2-60
