The FR-F840-00250-2-60 is a Mitsubishi energy-saving inverter rated for three-phase 380 to 500 V input. Under SLD (super light duty) it drives an 11 kW motor. For light-duty constant-torque applications it provides 120% overload for 60 seconds. The unit measures 17 cm wide by 22 cm deep by 26 cm tall, making it the smallest frame in this power class.

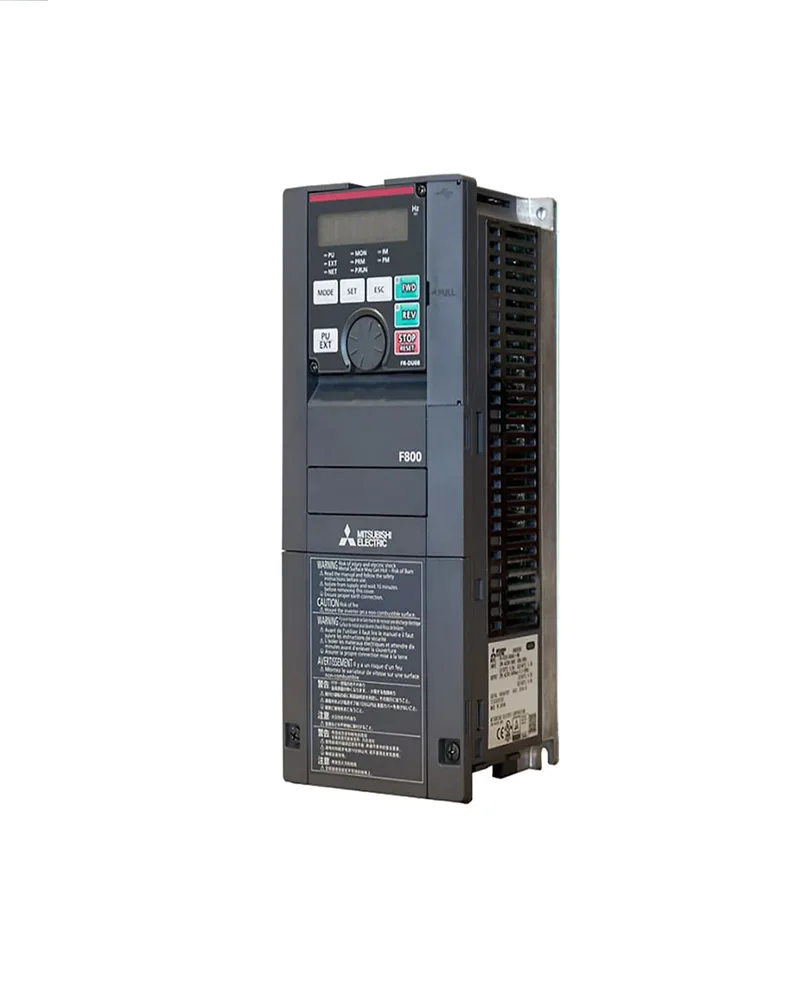

Mitsubishi FR-F840-00250-2-60 Energy-Saving Inverter, 11 kW
MPNFR-F840-00250-2-60
Mitsubishi FR-F840-00250-2-60 Energy-Saving Inverter, 11 kW SLD, three-phase 380-500 V, compact 17x22x26 cm frame.
$1,104.00 – $1,740.34Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product type | Energy-Saving Inverter |
Mechanical
| Parameter | Value |
|---|---|
| Weight | 6.5 kg |
Other specifications
| Parameter | Value |
|---|---|
| Rated voltage *4 | Three-phase 380 to 500 V |
| Dimension ( l x w x h) | 17 cm x 22 cm x 26 cm |
| Applicable motor capacity (kW) *1 | SLD = 11 |
| Output overload current rating *3 | LD : 120% 60 s, 150% 3 s (inverse-time characteristics) at surrounding air temperature 50°C |
| Permissible AC voltage fluctuation | 323 to 550 V 50 Hz/60 Hz |
| Power supply rated input AC voltage (frequency) | Three-phase 380 to 500 V 50 Hz/60 Hz *6 |
Product details
Frequently asked questions
What is the closest functional alternative to the FR-F840-00250-2-60?
The FR-F840-00310-2-60 is the next step up, with SLD motor capacity of 15 kW. It uses a larger frame, so verify panel cutout dimensions before substituting.
