The Mitsubishi FR-F840-00310-2-60 is an Energy-Saving Inverter from the FR-F800 series, designed for three-phase 380-500 V input and an SLD motor capacity of 15 kW. The LD overload rating allows 120% current for 60 seconds, suitable for short-term peak loads. Input voltage tolerance spans 323 to 550 V AC.

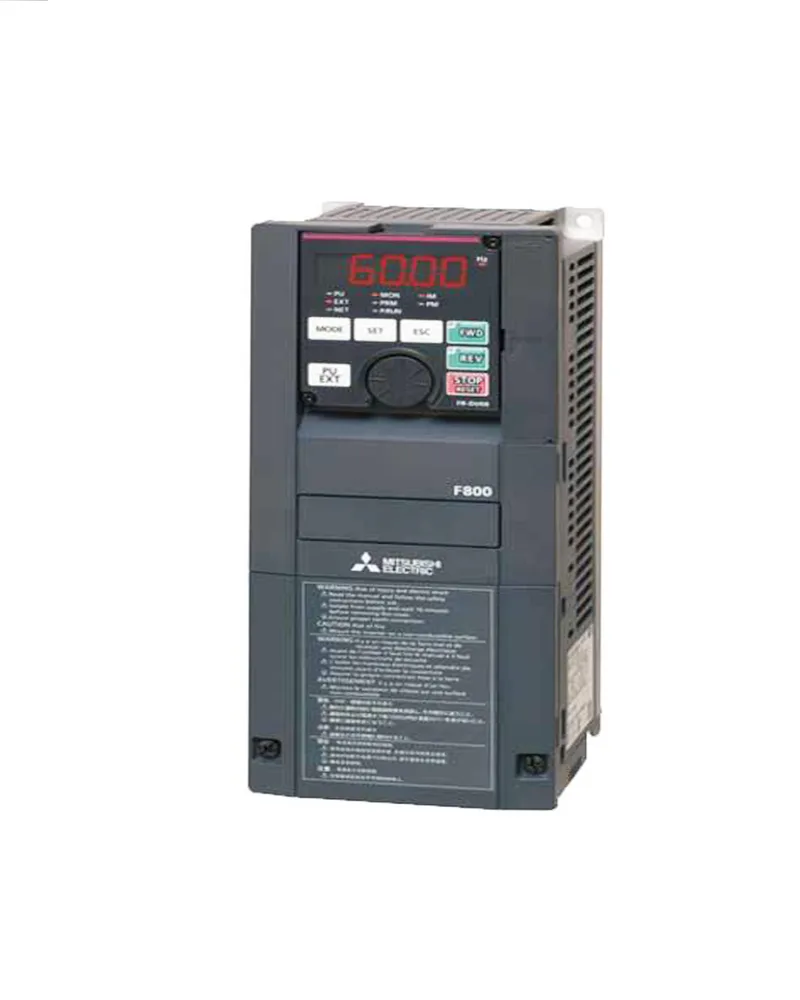

Mitsubishi FR-F840-00310-2-60 Energy-Saving Inverter, 15kW S
MPNFR-F840-00310-2-60
Mitsubishi FR-F800 Series, Energy-Saving Inverter, FR-F840-00310-2-60, 8.3 kg, SLD 15 kW.
$1,049.00 – $1,975.49Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Product type | Energy-Saving Inverter |
Mechanical
| Parameter | Value |
|---|---|
| Weight | 8.3 kg |
Other specifications
| Parameter | Value |
|---|---|
| Rated voltage *4 | Three-phase 380 to 500 V |
| Dimension (L x w x h) | 19 cm x 22 cm x 30 cm |
| Applicable motor capacity (kW) *1 | SLD = 15 |
| Output overload current rating *3 | LD : 120% 60 s, 150% 3 s (inverse-time characteristics) at surrounding air temperature 50°C |
| Permissible AC voltage fluctuation | 323 to 550 V 50 Hz/60 Hz |
| Power supply rated input AC voltage (frequency) | Three-phase 380 to 500 V 50 Hz/60 Hz *6 |
Product details
Frequently asked questions
Can FR-F840-00310-2-60 drop into a panel designed for FR-F840-00470-2-60?
No. The FR-F840-00470-2-60 is larger (19x25x40 cm) and heavier (15 kg), so it requires more panel space and different mounting. This drive will not fit without rework.
What is the closest functional peer to this inverter?
The FR-F840-00470-2-60 is a higher-capacity sibling (22 kW SLD), but it is not a direct second-source due to different motor capacity and physical size. For a smaller load, the FR-F840-00250-2-60 offers 11 kW SLD.
