18.5 kW LD-rated drive for fan and pump loads

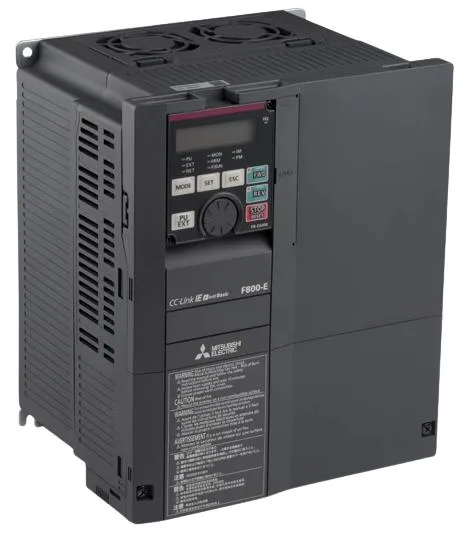

The Mitsubishi Electric FR-F840-00380-2-60 is a 400V class AC drive from the FR-F800 series, rated at 18.5 kW in LD (light duty) mode — this is the capacity that matches typical centrifugal fan, pump, and compressor loads where starting torque demand is low. The -2 = CA type code indicates the control variant, and the -60 suffix specifies conformal coating on the circuit board with plated conductors — a combination suited to environments with moderate humidity or airborne contaminants where standard boards might corrode.
Active production and supply posture
The FR-F800 series is Mitsubishi's dedicated HVAC and industrial fan-pump platform, so this unit carries the energy-optimization algorithms (auto-tuning, sleep mode) that differentiate it from general-purpose VFDs in the same kW class.
Physical integration and handling
Standard model designation (structure code 0) means no factory-installed options like a built-in EMC filter or brake transistor — those are added as external components per the application requirement.
