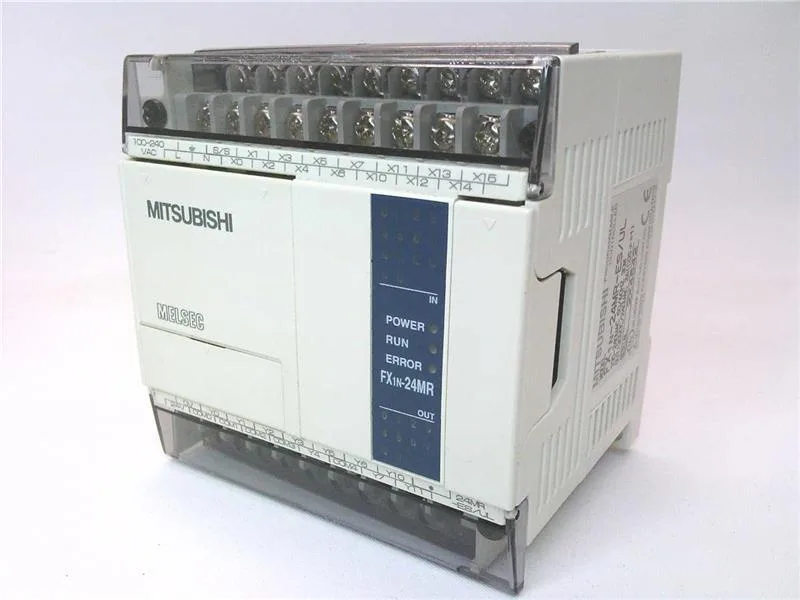

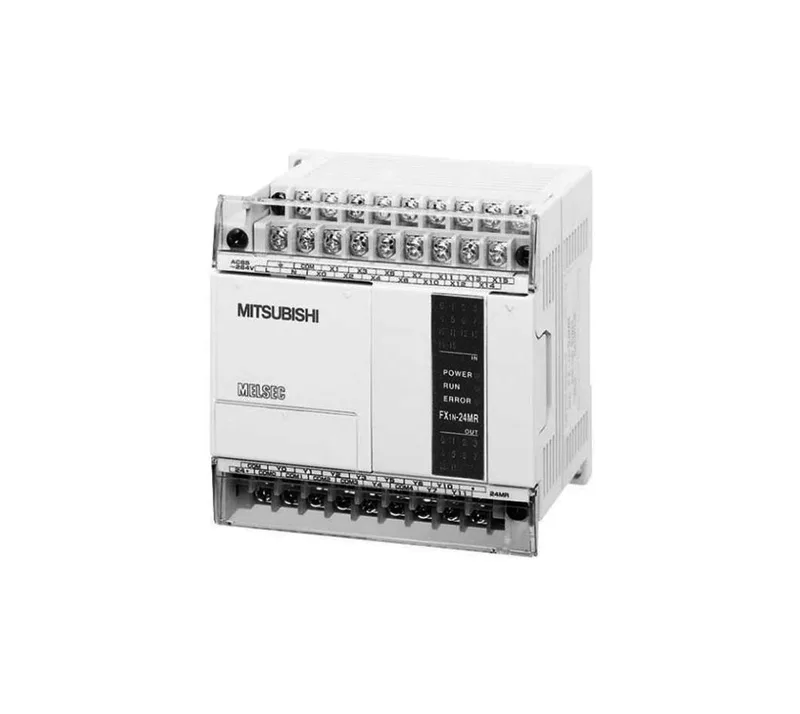

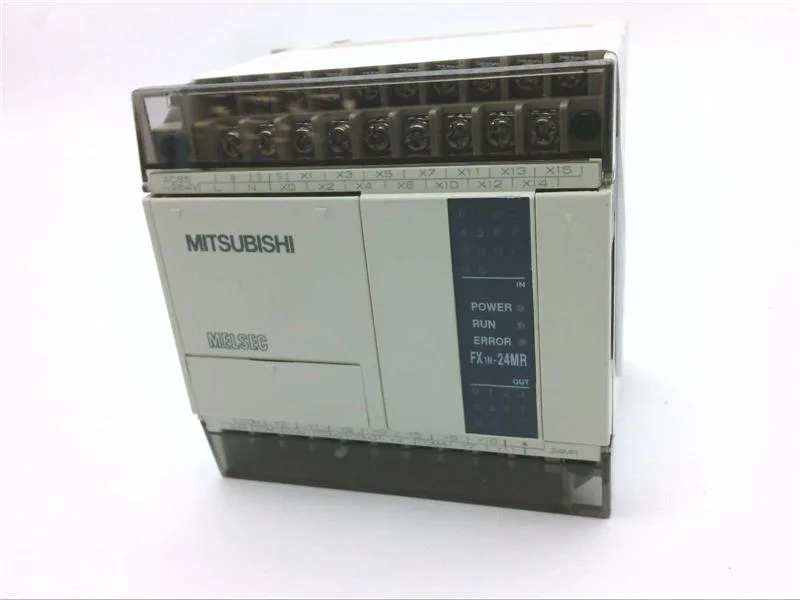

The Mitsubishi FX1N-24MR-ES/UL is a main unit (MPU) from the FX1N series, packing 14 digital inputs and 10 relay outputs on a single chassis running on 100-240 VAC. It carries CE registration, covering the World-spec ES suffix for AC-powered installations.
Mitsubishi FX1N-24MR-ES/UL PLC, 14 In/10 Relay Out, EOL
MPNFX1N-24MR-ES/UL
End of Life
Mitsubishi FX1N Series, FX1N-24MR-ES/UL, 14 inputs, 10 relay outputs, 100-240 VAC, CE registered.
$322.00 – $585.99Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| Features | ES = AC, World spec, CE registered |
| Unit type | M = MPU - main unit |
| Output signal | R = Relay |
| No of inputs | 14 |
| Power supply | 100-240V |
| Product type | Fx1n Series Programmable Controllers |
| No of outputs | 10 |
| Supply voltage | 100-240 VAC |
| Power consumption | 30W |
| Max. number input (output) | 24 |
Product details
Frequently asked questions
What compliance documentation does this part carry?
The ES suffix indicates CE registration for the World spec (AC supply). No UL, RoHS, or REACH details are in the public record on this listing.
Will the FX1N-24MR-ES/UL fit a panel designed around the FX1N-40MR-ES/UL?
Not without rewiring. The 40-point unit has 24 inputs and 16 outputs versus 14 and 10 here. The footprint and terminal assignment differ, so a direct swap is not practical.
What is the unit type and output type?
It is an MPU (main unit) with relay outputs, designated by the M and R in the order code.
MPN
FX1N-24MR-ES/UL
