Mitsubishi FX1N Series PLC, MPU-main unit, 24 inputs / 16 relay outputs, 100-240 VAC supply, 32 W power draw, CE registered, end-of-life.
| Parameter | Value |
|---|---|
| Features | ES = AC,World spec,CE registered |
| Unit type | M = MPU-main unit |
| Output signal | R = Relay |
| Power supply | 100-240 VAC |
| Product type | Fx1n Series Programmable Controllers |
| No. of inputs | 24 |
| No. of outputs | 16 |
| Type of output | Relay |
| FX1N = PLC type | FX1N |
| Power consumption | 32W |
| Max. number input (output) | 40 |

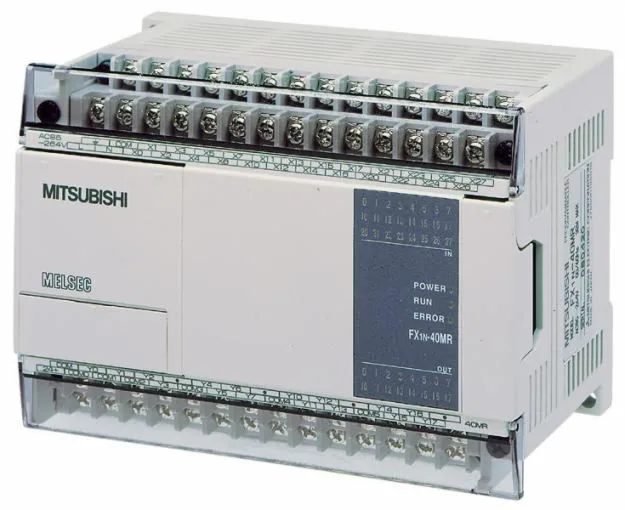

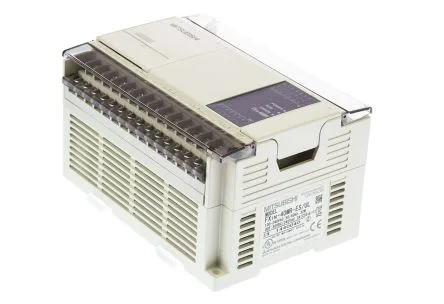

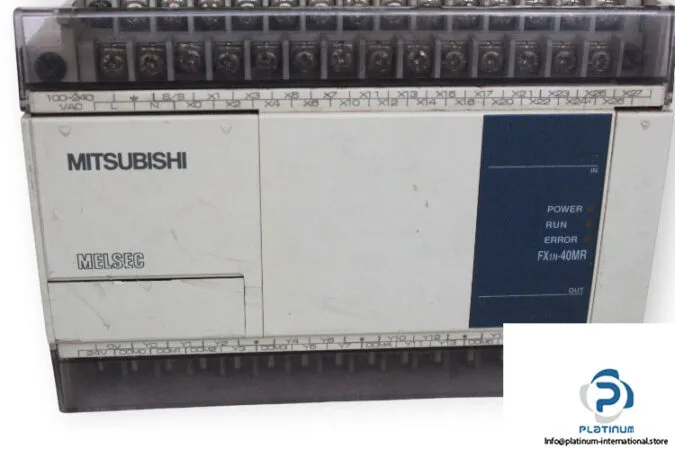

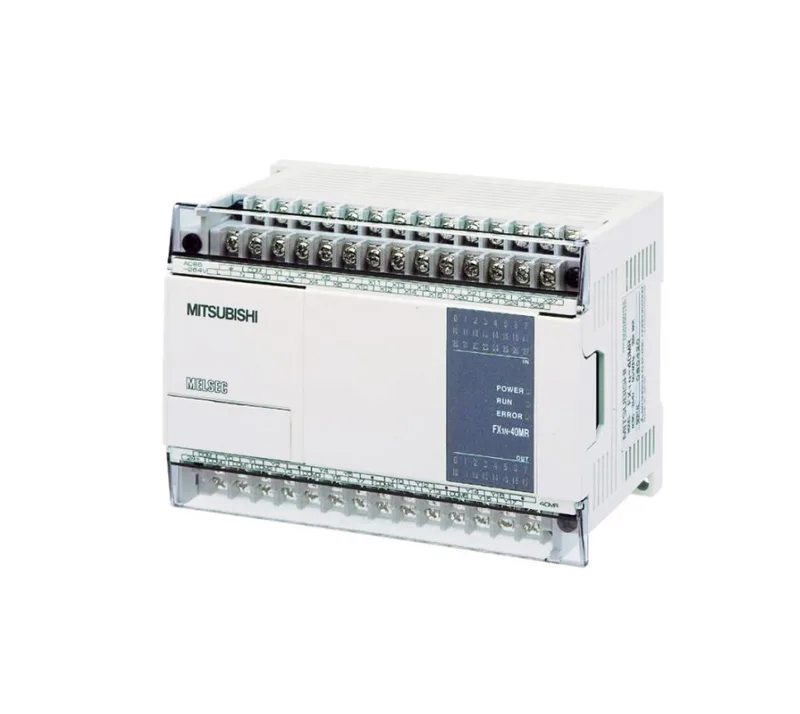

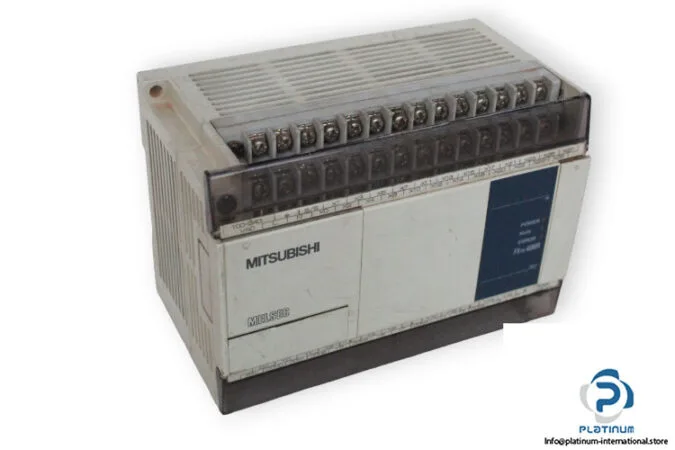

The FX1N-40MR-ES/UL is the main processing unit of Mitsubishi's FX1N series, configured with 24 digital inputs and 16 relay outputs on a 40-point frame. Power supply is 100-240 VAC; typical power consumption runs 32 W. The 'ES' suffix indicates a global AC version with CE marking.
It is a Mitsubishi FX1N series PLC main unit with 24 inputs and 16 relay outputs, powered by 100-240 VAC, drawing 32 W. It is CE registered and uses a fixed M3 terminal block for wiring.
No. The FX3S-30MT/ES is from a different series with a smaller form factor, different I/O count (16 inputs / 14 outputs vs. 24 / 16), and transistor output type. Panel cutouts, terminal assignments, and wiring differ.
