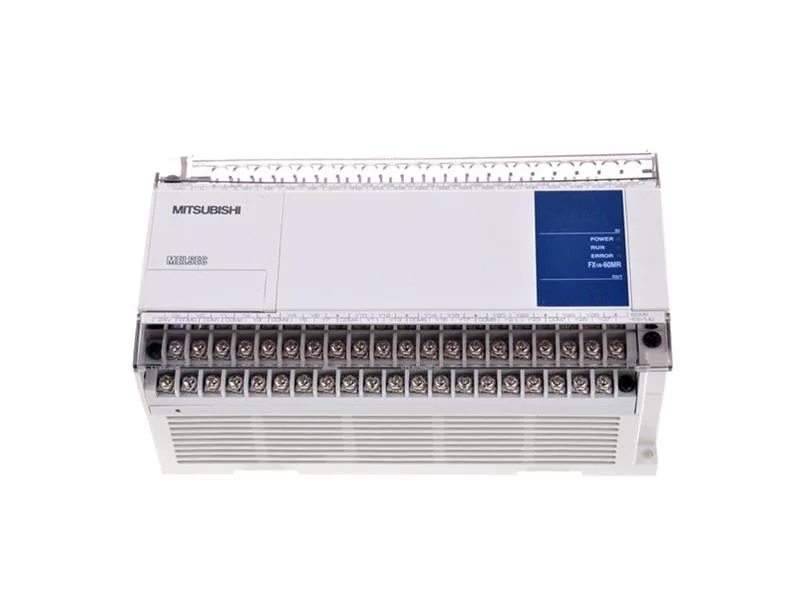

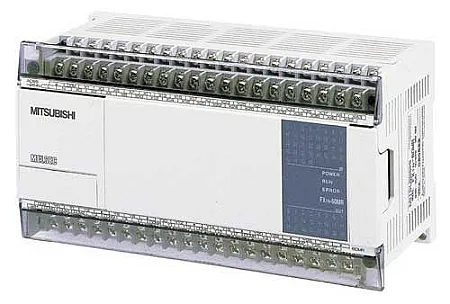

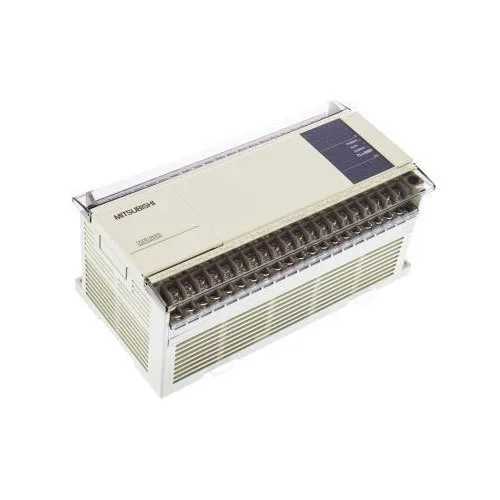

Mitsubishi Electric FX1N-60MR-ES/UL — PLCs (Programmable Logic Controllers)

FX1N-60MR-ES/UL PLC, 36 in / 24 relay out, 100-240V AC

MPNFX1N-60MR-ES/UL
End of Life

Mitsubishi FX1N series programmable logic controller, FX1N-60MR-ES/UL, 100-240V AC supply, 36 inputs and 24 relay outputs, 35W internal dissipation, flagged EOL/hot on the lifecycle record.

$453.00 – $1,037.86Ref. price · indicative, final on quote
Mitsubishi Electric FX1N-60MR-ES/UL datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

FX1N-60MR-ES/UL — Specifications
ParameterValue
Power supply100-240V AC
No. of inputs36
No. of outputs24
Type of outputRelay
Power consumption35W
Max. number input (output)60

Product details

What this slot is

The Mitsubishi FX1N-60MR-ES/UL is a main-unit PLC in the FX1N series, powered from 100-240V AC and rated for 35W internal consumption — so the panel feed is single-phase AC and the thermal budget is modest, not a multi-amp drive-grade load. I/O lands at 36 inputs against 24 outputs on the base unit, with a maximum of 60 total I/O when expansion is fitted; the outputs are relay-type, which is the right call for mixed contactor and solenoid loads in packaging-line and OEM machine work.

Second-source question — FX3U vs FX1N

For a closer functional match the FX2N-64MR-ES/UL sits at 32 inputs / 32 outputs on 100-240V AC — closer in I/O count to the FX1N's 60-point profile but still a different footprint and a different firmware generation, so it is a reference candidate rather than a confirmed cross.

Frequently asked questions

What supply voltage does the FX1N-60MR-ES/UL need?

100-240V AC single-phase, with 35W internal dissipation.

How many inputs and outputs does the FX1N-60MR-ES/UL provide?

36 inputs and 24 relay outputs on the base unit, expandable to a maximum of 60 total I/O.

MPN
FX1N-60MR-ES/UL
