Mitsubishi Electric FX2N-16EYT — PLCs (Programmable Logic Controllers)

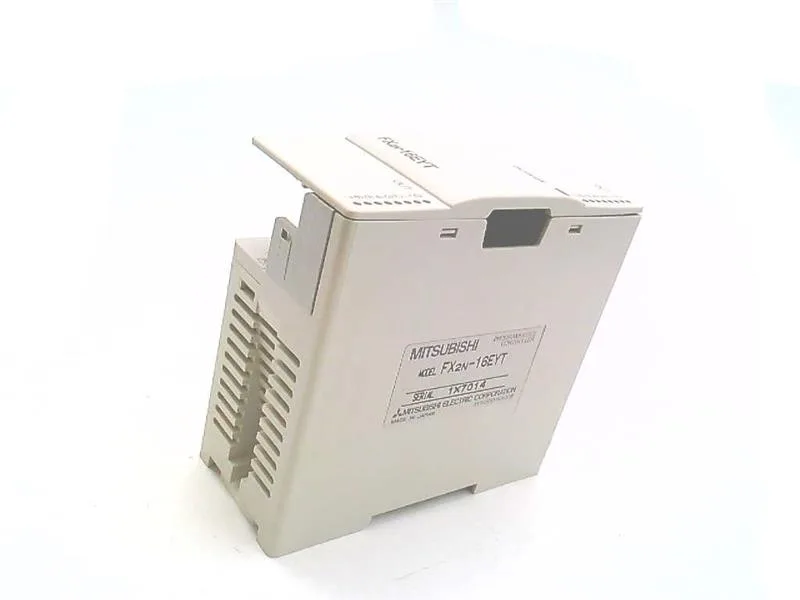

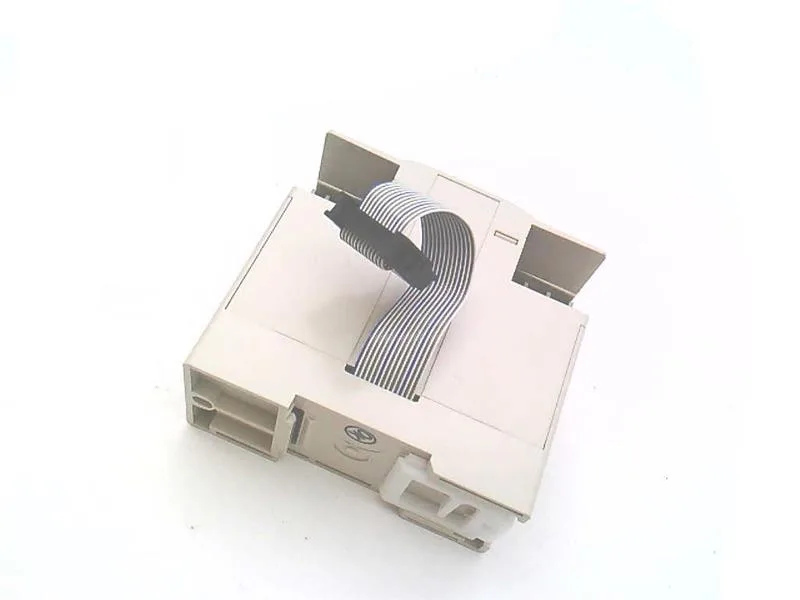

Mitsubishi FX2N-16EYT 16-Point Transistor Output, 0.5 A/poin

MPNFX2N-16EYT
End of Life

Mitsubishi FX2N series, output extension block, FX2N-16EYT, 16-point transistor sink output, 0.5 A/point resistive load, 0.2 ms response time.

$119.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

FX2N-16EYT key specifications
ParameterValue
Output type (format)Transistor / sink output
ON voltage1.5V or less
VoltageInternal power supply from the sequencer
Withstand voltageBetween the output terminal (transistor) of the expansion output block and the earth terminal: AC 500 V for 1 minute
Open-circuit leakage current0.1 mA / DC 30 V
External power supplyDC 5V to 30V
Frequency57 to 150 Hz : Acceleration: 9.8 m / s 2 X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2
Direct installation frequency10 to 57 Hz : One amplitude: 0.075 mm X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2
Anti-vibration when DIN rail is installed frequency10 to 57 Hz : One amplitude: 0.035 mm X, Y, Z 10 times in each direction (80 minutes in total) The criteria are based on IEC 61131-2
Output connection shapeVertical terminal block (M3 screw)
Response time OFF → ON0.2 ms or less / 200 mA (24 VDC)
Operating temperature0 to 55 ° C. ... Operating -25 to 75 ° C. ..... Save

All specifications

FX2N-16EYT additional specifications
ParameterValue
Use altitudeCan not be used in an environment pressurized to 2000 m or less under atmospheric pressure. It may break down.
Relative humidity5 to 95% RH (noncondensing).... in operation
Shipping weight1.3 Kg
Mass0.3 Kg
ON → OFF0.2 ms or less / 200 mA (24 VDC)
Inductive load12 W / DC 24 V
Noise immunityNoise voltage with 1,000 Vp-p, noise width 1 μs, rising 1 ns, with noise si
Use atmosphereThere is no corrosive property, flammable gas, conductive dust (dust) is not serious
Impact resistance147 m / s 2 , working time 11 ms, criterion for judgment three times in X, Y, Z directions by sine half-wave pulse is according to IEC 61131-2
Circuit insulationPhotocoupler insulation
Estimated lead timeUsually ships in 1 - 10 working days.
Application sequencerFX1N, FX3G, FX2N, FX3U, FX1NC, FX3GC, FX2NC, FX3UCFX2NC - CNV - IF is required for connection to FX1NC and FX2NC. To connect to FX3GC, FX3UC, FX2NC - CNV - IF or FX3UC - 1PS - 5V is required.
Insulation resistanceBetween the output terminal (transistor) and the earth terminal of the expansion output block: 5 MΩ or more with DC 500 V insulation resistance meter
Number of output points16 points
Maximum load resistive loadThe total load current per 0.5 A / point common should be as follows. . Output 4 points / common: 0.8 A or less . Output 8 points / common: 1.6 A or less
Output operation indicationLED on the panel when driving the photo coupler

Product details

The Mitsubishi FX2N-16EYT is a 16-point transistor sink output extension block for the FX2N PLC series, giving you deterministic switching at 0.2 ms — fast enough to hold takt time on a high-speed weld line. Each point handles 0.5 A resistive load, but watch the common limits: 0.8 A per 4-point common, 1.6 A per 8-point common.

Key electrical interface details

Outputs are transistor sink type, driven by photocoupler isolation. ON voltage stays at 1.5 V or less; off-state leakage is 0.1 mA at DC 30 V. Response time is 0.2 ms or less for both on-to-off and off-to-on transitions at 200 mA, 24 VDC. That deterministic edge keeps cycle jitter off your takt-time budget. Power supply is drawn from the sequencer backplane (internal, no external supply needed for logic). External load supply can range from DC 5 V to 30 V. Withstand voltage between output terminals and earth is 500 VAC for 1 minute; insulation resistance is 5 MΩ or more at 500 VDC. Connection uses a vertical terminal block with M3 screws. LED indication on the panel lights when the photocoupler is driven — makes fault isolation at the cabinet door straightforward.

Frequently asked questions

What is the response time of the FX2N-16EYT?

ON-to-OFF and OFF-to-ON are both 0.2 ms or less at 200 mA, 24 VDC, which keeps cycle times deterministic for high-speed automation.

Can the FX3S-30MR/ES replace the FX2N-16EYT?

No. The FX3S-30MR/ES is a relay output CPU unit, not a transistor expansion block. It cannot be connected to an FX2N base without extensive rewiring and program changes.

What is the maximum load per output point?

0.5 A resistive per point, but common limits apply: 0.8 A total per 4-point common, 1.6 A per 8-point common.

MPN
FX2N-16EYT
