The Mitsubishi FX2N-1HC is a 1-channel high-speed counter block designed for the FX2N, FX3U, FX2NC, and FX3UC PLC families. It accepts encoder inputs in open collector or differential line driver format (the latter wired to the 5 V terminal). Maximum count rate hits 50 kHz in 1-phase-1-input mode, and with 2-phase inputs you get 50 kHz at 1x multiplication, 25 kHz at 2x, and 12.5 kHz at 4x. Power is drawn from the PLC backplane at DC 5 V 90 mA — no external supply needed, but it does occupy 8 I/O points in the PLC's address map.
Mitsubishi FX2N-1HC High-Speed Counter, 50 kHz, EOL
MPNFX2N-1HC
End of Life

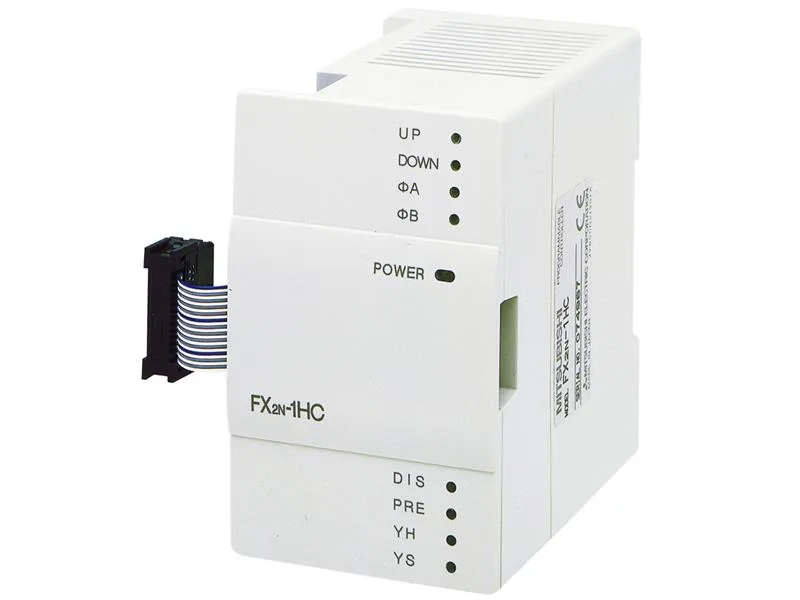

Mitsubishi FX2N-1HC high-speed counter block, 1-channel, 50 kHz max response, 32/16-bit count range, open collector/differential line driver input.
$169.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Input voltage | DC 5 V, DC 12 V, DC 24 V can be selected by connection terminal |
| Power supply | DC 5 V 90 mA (Internal power supply from PLC) |
| Frequency | 57 to 150 Hz : Acceleration: 9.8 m / s 2?10 times in X, Y, Z directions (80 minutes in total) |
| Direct installation frequency | 10 to 57 Hz : One amplitude: 0.075 mm X, Y, Z 10 times in each direction (80 minutes in total) |
| Maximum response frequency 1 phase 1 input | 50 kHz or less |
| Anti-vibration when DIN rail is installed frequency | 10 to 57 Hz : One amplitude: 0.035 mm X, Y, Z 10 times in each direction (80 minutes in total) |
| 2 phase input | 50 kHz or less (1 multiplication), 25 kHz or less (2 multiplication), 12.5 kHz or less (4 multiplication) |
| 1 phase 2 input | 50 kHz or less |
| Between all terminals and ground terminal of the programmable controller main unit | 500 MV DC insulation resistance meter 5 M? or more |
| Between all terminals and the earth terminal of the programmable controller main unit | AC 500 V for 1 minute |
| Shipping weight | 2 kg |
| Mass | 0.3 kg |
All specifications+10 ▾
| Parameter | Value |
|---|---|
| Count mode | Automatic up / down (However, in case of single phase 1 input, it depends on sequencer command or input terminal command) |
| Count range | When 32 bits are specified: -2, 147, 483, 648 to +2, 147, 483, 647 When 16 bits are specified: 0 to 65,535 (upper limit value can be specified) |
| Input format | Open collector, differential line driver (Differential line driver output type encoder is connected to 5 V terminal) |
| Display | φ A, φ B, DIS, PRE, YH, YS, POWER, UP, DOWN |
| Output format | Open collector output 2 points 5 VDC to 24 V 0.5 A |
| Estimated lead time | 1 - 10 Working Days |
| Application sequencer | FX2N, FX3U, FX2NC, FX3UC FX2NC - CNV - IF is required for connection to FX2NC. To connect to FX3UC, FX2NC-CNV-IF or FX3UC-1PS-5V is required. |
| Number of input channels | 1ch |
| Matching output (comparison) | When the current value of the counter and the comparison setting value (transfer data from the sequencer) match, the comparison output is set and it is turned OFF by a reset command from the sequencer. YH: Comparison is done by hardware and output immediately. YS: The comparison is performed by software in FX 2 N - 1 HC and output within 300 ?s. (Variation of 15 pulses occurs at 50 kHz) |
| Number of occupied i (O points) | 8 points (either input or output may be considered) |
Product details
Frequently asked questions
What is the mass of the FX2N-1HC?
0.3 kg per unit. Shipping weight is 2 kg due to packaging.
What are the key electrical specifications?
DC 5 V 90 mA from the PLC backplane. Max response frequency 50 kHz (1-phase-1-input). Inputs accept open collector or differential line driver at selectable voltage (5, 12, or 24 V). Two open-collector comparison outputs at 5–24 V, 0.5 A.
Does the FX2N-1HC work with FX3U or FX3UC PLCs?
Yes, it's compatible with FX2N, FX3U, FX2NC, and FX3UC. For FX2NC or FX3UC, an FX2NC-CNV-IF adapter is required; for FX3UC, the FX3UC-1PS-5V may also be needed.
MPN
FX2N-1HC
